TJR Multi Spindle Coupled Series - FAR Ø350
Synchronised multi-spindle indexing for high-throughput, parallel machining lines.
FHR-350F-2W-RC320-2A
FHR-350F-2W-RC320-2A Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø210 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø40 |
| Table height (Horizontal)(mm) | 280 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | 360° |
| Axis / Tilt | (-110°~+110°) |
Frequently Asked Questions

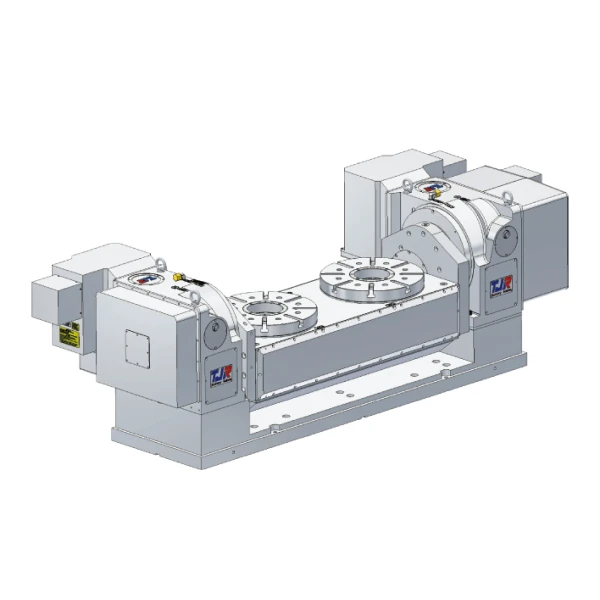

The FHR-350F-2W-RC320-2A features a Ø350 mm rotary table and is designed for vertical and horizontal applications. It uses an add-on installation mode and belongs to TJR’s Multi Spindle Coupled Series, making it suitable for multi-spindle 4th- and 5th-axis CNC machining.
The rotary axis provides 360° rotation, while the tilting axis offers a wide -110° to +110° range. This allows the coupled rotary plates to position workpieces at multiple angles for complex multi-axis machining operations.
The rotary axis uses a Worm & Worm Gear transmission mechanism, while the tilting axis uses a Roller Cam transmission mechanism. The rotary axis has a 1:120 reduction ratio, while the tilting axis uses a 1:90 reduction ratio, providing controlled and precise axis movement.
The FHR-350F-2W-RC320-2A provides a minimum programmable increment of 0.001°. The rotary axis has 40 arc-seconds indexing precision and 6 arc-seconds repeatability, while the tilting axis provides 60 arc-seconds indexing precision and 8 arc-seconds repeatability.
Both the rotary and tilting axes use hydraulic clamping rated at 3.5 MPa / 35 kg/cm². The rotary-axis clamping torque is 1,128 kgf·m / 115 kgf·m, while the tilting-axis clamping torque is 2,256 kgf·m / 230 kgf·m, providing strong holding force during machining.
The FHR-350F-2W-RC320-2A can be configured with major CNC servo motor systems including FANUC, Mitsubishi, Yaskawa, Siemens, Heidenhain, and Syntec. TJR specifically lists FANUC αiF12 / βis22, Mitsubishi HG-204, and Siemens 1FK7083 for the rotary axis. For the tilting axis, TJR lists FANUC αiS12 ×2 / βis12 ×2, Mitsubishi HG-154 ×2, and Siemens 1FK7083 ×2.
The rotary axis has a maximum table speed of 25 rpm, while the tilting axis has a maximum table speed of 16.6 rpm. These speeds provide controlled movement for indexing and coordinated multi-axis machining.
The FHR-350F-2W-RC320-2A supports a maximum workpiece load of 150 kg per plate at 0° horizontal and 150 kg per plate when tilted from 0° to 90°. Its allowable horizontal inertia load capacity is 2.3 kg·m².
With rotary-table clamping, the FHR-350F-2W-RC320-2A has an allowable thrust load of 17,658 N / 1,800 kgf. Its specified axial moment is 2,256 N·m / 230 kgf·m, radial moment is 1,128 N·m / 115 kgf·m, and driving torque is 785 N·m / 80 kgf·m.
The FHR-350F-2W-RC320-2A features a Ø120H7 mandrel sleeve, Ø120 mm center through hole, and 370 mm horizontal table height. It uses a 14H7 T-slot and 18h7 guide block. The unit has a net weight of 1,080 kg excluding the servo motors.
