Worm and Gear - Dual Arm Type - FHR Ø500
Balanced dual-arm design delivering stable torque across extended reach applications.
FHR-500C

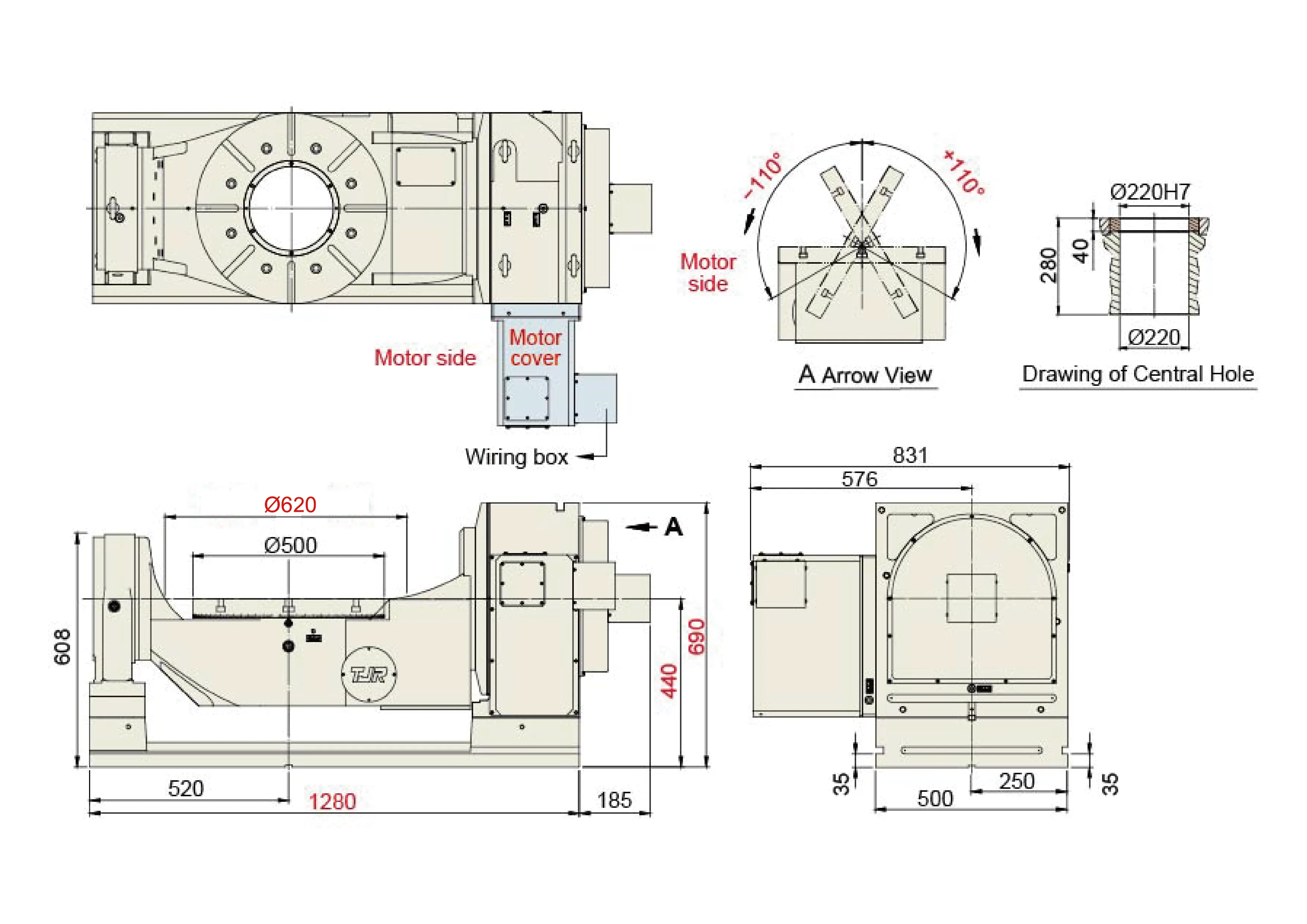

FHR-500C Product Specifications
| Item | Data |
|---|---|
| Application | Vertical & Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø500 |
| Inner diameter of mandrel sleeve(mm) | Ø220H7 |
| Diameter of center through hole(mm) | Ø220 |
| Table height (Horizontal)(mm) | 440 |
| Table T-slot width(mm) | 18H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | 360° |
| Axis / Tilt | (-110°~+110°) |
