Tailstock
Heavy-duty dual arm support. Built for large workpiece CNC machining. Available in Manual (TTJ), Pneumatic (ATTJ), and Hydraulic (HTTJ) series.

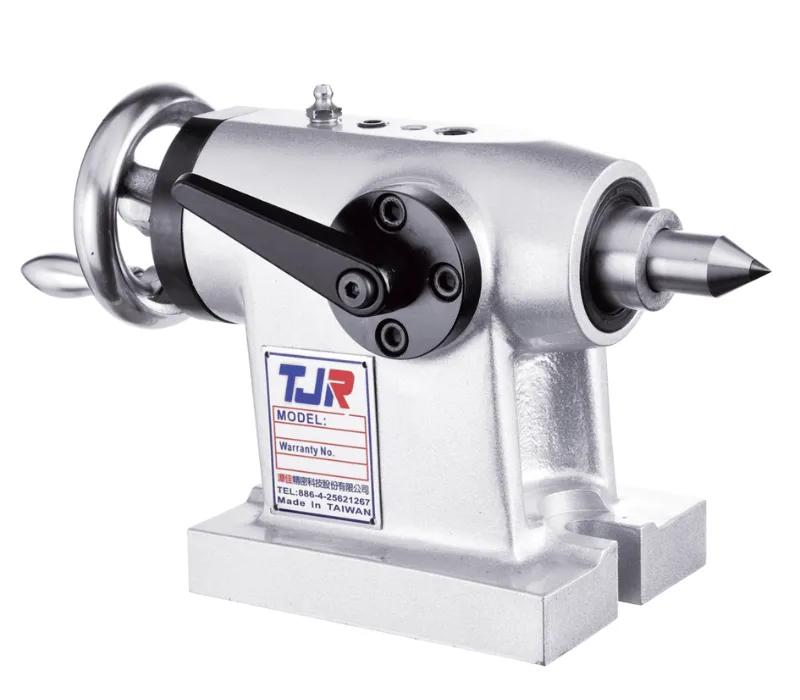

TTJ-125A
TTJ-125A Product Specifications
| model | A | B | C | D | Weight (kg) | Tailstock Center Specification |
|---|---|---|---|---|---|---|
| TTJ - 125A | 110 | 155 | 14 | 312 | 8.5 | MT2 |
| TTJ - 125 | 110 | 156 | 14 | 435.5 | 21.5 | MT4 |
| TTJ - 170 | 135 | 181 | 18 | 435.5 | 23 | MT4 |
| TTJ - 210 | 160 | 206 | 18 | 435.5 | 25 | MT4 |
| TTJ - 255 | 160 | 206 | 18 | 435.5 | 25 | MT4 |
| TTJ - 320 | 210 | 256 | 18 | 435.5 | 29 | MT4 / MT5 |
| TTJ - 400 | 255 | 310 | 18 | 503.5 | 48 | MT4 / MT5 |
