TJR Hirth Coupling Index Table - HI Ø255

Sub-arcsecond angular precision for demanding multi-face machining operations.

TJR CNC Rotary Table Product Details And Specifications

HI-255R

HI-255R Product Specifications

HI-255R Product Specifications
Item	Data
Application	Vertical or Horizontal
Installation Mode	Add-on
Table diameter(mm)	Ø255
Inner diameter of mandrel sleeve(mm)	Ø50H7
Diameter of center through hole(mm)	Ø50
Center height (Vertical)(mm)	160
Table height (Horizontal)(mm)	205
Table T-slot width(mm)	12H7
Guide block width(mm)	18h7
Transmission Mechanisms	Worm and Worm Gear
Min. increment(deg.)	1 or 5
Indexing precision(sec.)	±5
Repeatability(sec.)	±1
Clamping system (MPa / kg/cm²)	Hirth coupling Hydraulic (3.5 / 35)
Clamping torque(N.m / kgf · m)	2943 / 300
Servo motor model(FANUC)(Straight shaft without key)	βis8
Servo motor model(MITSUBISHI) (Straight shaft without key)	HG-154
Speed reduction ratio	1:120
Max. rotation rate of table(min-1)	33.3
Allowable inertia load capacity (vertical)(kg-m²)	2.5
Allowable workpiece load (Vertical)(kg)	125
Allowable workpiece load (with support table)(kg)	250
Allowable workpiece load (Horizontal)(kg)	300
Allowable thrust load (with rotary table clamping) F (N / kgf)	15696 / 1600
(Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m)	1717 / 175
(Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m)	2943 / 300
Net weight ( sever motor excluded)(kg)	120
＊1	The structural limit value, while the actual operating speed will vary depending on the motor.

Frequently Asked Questions

What is the HI-255R?

The HI-255R is a CNC Hirth coupling indexing table used for accurate rotary positioning during machining.

What is the table size of the HI-255R?

The HI-255R has a table diameter of 255 mm.

Can the HI-255R be used vertically and horizontally?

Yes. The HI-255R can be installed in both vertical and horizontal positions.

How accurate is the HI-255R?

The HI-255R offers high indexing accuracy and repeatability, making it suitable for precise CNC machining.

What type of clamping does the HI-255R use?

The HI-255R uses hydraulic clamping with a Hirth coupling for strong and stable positioning.

How much weight can the HI-255R hold?

The maximum load depends on the installation position. It can handle up to 300 kg in horizontal use.

What is the maximum speed of the HI-255R?

The maximum rotation speed of the HI-255R is 33.3 min⁻¹.

Which CNC controls can be used with the HI-255R?

The HI-255R is available with servo motor options for FANUC and Mitsubishi CNC systems.

What is the indexing angle of the HI-255R?

The HI-255R is available with indexing increments of 1° or 5°, depending on the configuration.

Where is the HI-255R used?

The HI-255R is used in CNC machining where accurate rotary positioning and strong clamping are needed.

HI-255N Product Specifications

HI-255N Product Specifications
Item	Data
Application	Vertical or Horizontal
Installation Mode	Add-on
Table diameter(mm)	Ø255
Inner diameter of mandrel sleeve(mm)	Ø50H7
Diameter of center through hole(mm)	Ø50
Center height (Vertical)(mm)	160
Table height (Horizontal)(mm)	205
Table T-slot width(mm)	12H7
Guide block width(mm)	18h7
Transmission Mechanisms	Worm and Worm Gear
Min. increment(deg.)	1 or 5
Indexing precision(sec.)	±5
Repeatability(sec.)	±1
Clamping system (MPa / kg/cm²)	Hirth coupling Hydraulic (3.5 / 35)
Clamping torque(N.m / kgf · m)	2943 / 300
Servo motor model(FANUC)(Straight shaft without key)	βis8
Servo motor model(MITSUBISHI) (Straight shaft without key)	HG-154
Speed reduction ratio	1:120
Max. rotation rate of table(min-1)	33.3
Allowable inertia load capacity (vertical)(kg-m²)	2.5
Allowable workpiece load (Vertical)(kg)	125
Allowable workpiece load (with support table)(kg)	250
Allowable workpiece load (Horizontal)(kg)	300
Allowable thrust load (with rotary table clamping) F (N / kgf)	15696 / 1600
(Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m)	1717 / 175
(Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m)	2943 / 300
Net weight ( sever motor excluded)(kg)	120
＊1	The structural limit value, while the actual operating speed will vary depending on the motor.

Frequently Asked Questions

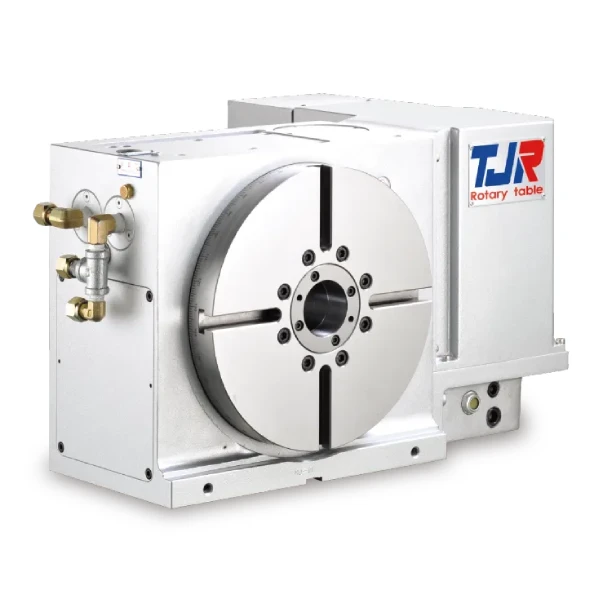

What is the HI-255N?

The HI-255N is a CNC Hirth coupling indexing table used for accurate rotary positioning during machining.

What is the table size of the HI-255N?

The HI-255N has a table diameter of 255 mm.

Can the HI-255N be used vertically and horizontally?

Yes. The HI-255N can be installed for both vertical and horizontal machining.

How accurate is the HI-255N?

The HI-255N has an indexing accuracy of ±5 seconds and repeatability of ±1 second.

What type of clamping system does the HI-255N use?

The HI-255N uses a Hirth coupling with hydraulic clamping to hold the table securely during machining.

How much weight can the HI-255N hold?

The HI-255N can hold up to 125 kg in vertical use, 250 kg with a support table, and 300 kg in horizontal use.

What is the maximum speed of the HI-255N?

The maximum rotation speed of the HI-255N is 33.3 min⁻¹.

Which servo motors are available for the HI-255N?

The HI-255N is available with FANUC βis8 and Mitsubishi HG-154 servo motor options.

What indexing increments are available on the HI-255N?

The HI-255N is available with minimum indexing increments of 1° or 5°.

Where is the HI-255N used?

The HI-255N is used for CNC machining applications that need accurate rotary positioning and strong workpiece clamping.
