- TJR Hirth Coupling Index Table - HI Ø630
TJR Hirth Coupling Index Table - HI Ø630
Sub-arcsecond angular precision for demanding multi-face machining operations.
HHI-630x630

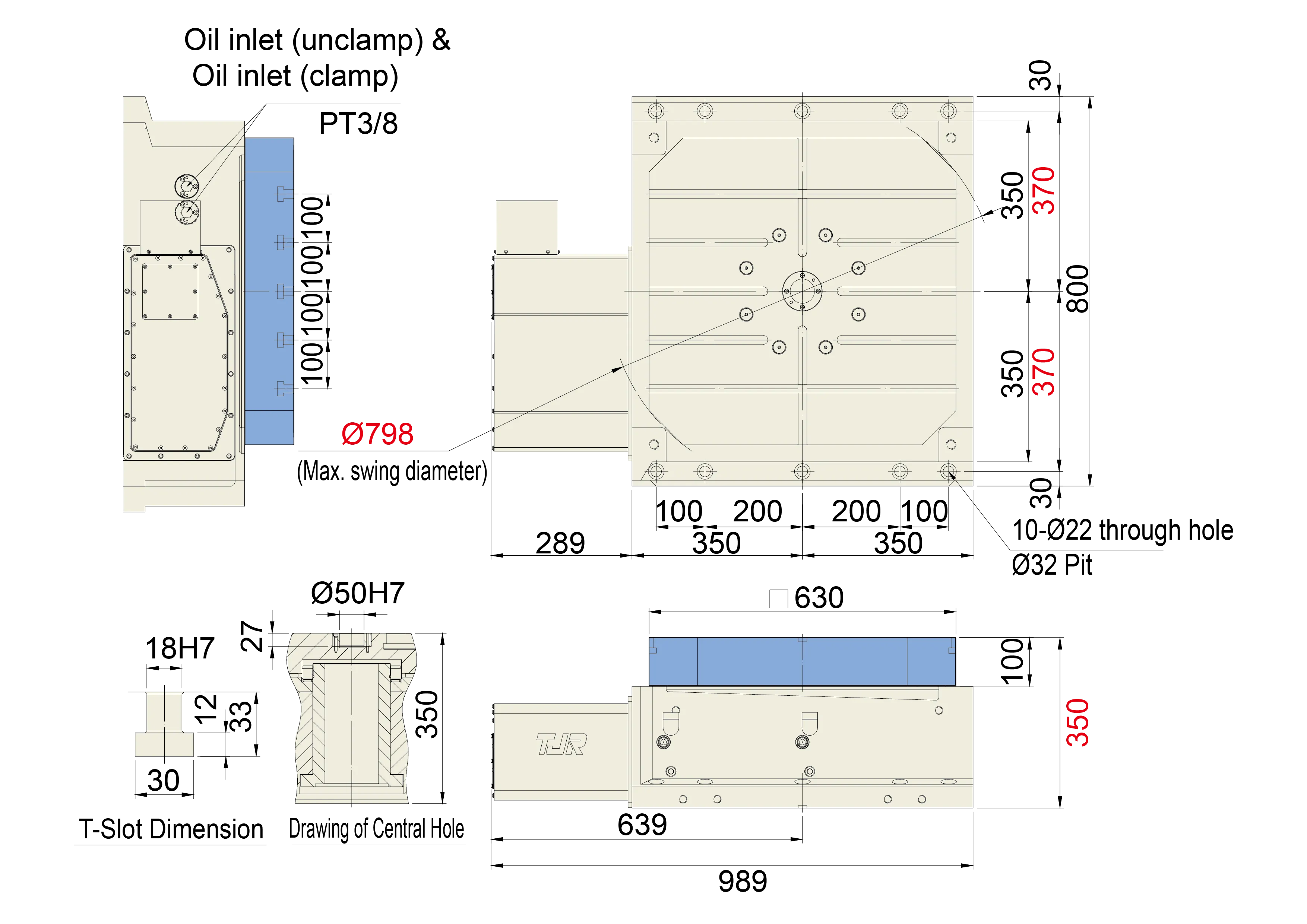

HHI-630x630 Product Specifications
| Item | Data |
|---|---|
| Application | Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø630x630 |
| Diameter of center through hole(mm) | Ø50x27deep |
| Table height (Horizontal)(mm) | 320 |
| Table T-slot width(mm) | 18H7 |
| Guide block width(mm) | 18h7 |
| Transmission Mechanisms | Worm and Worm Gear |
| Min. increment(deg.) | 1 or 5 |
| Indexing precision(sec.) | ±5 |
Frequently Asked Questions
The HHI-630x630 is a Hirth coupling index table made for horizontal CNC machining.
The table size is 630 x 630 mm, making it suitable for large workpieces.
It uses a hydraulic Hirth coupling system for strong and secure clamping.
It has an indexing accuracy of ±5 arc seconds and repeatability of ±1 arc second.
The HHI-630x630 can index in 1-degree or 5-degree increments.
The maximum rotation speed is 16.6 rpm.
It can handle a horizontal workpiece load of up to 1,500 kg.
The HHI-630x630 uses a worm and worm gear transmission system with a 1:180 reduction ratio.
It is available with FANUC βiS22 and Mitsubishi HF/HG-204 servo motor options.
The HHI-630x630 is suitable for horizontal CNC machining applications that need accurate indexing, strong clamping, and stable positioning of large workpieces.
