TJR Hirth Coupling Index Table - HI Ø320

Sub-arcsecond angular precision for demanding multi-face machining operations.

TJR CNC Rotary Table Product Details And Specifications

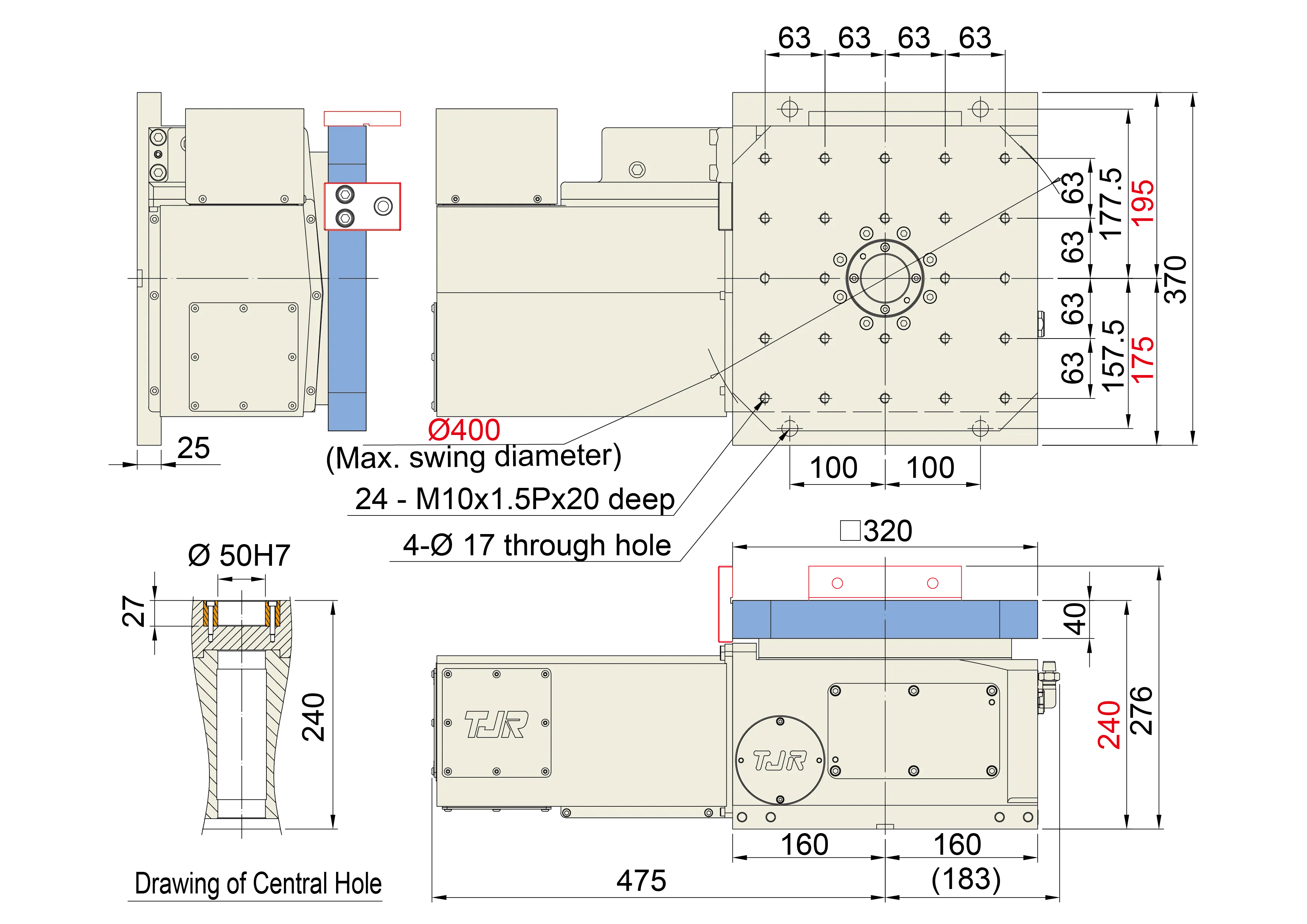

HHI-320x320F

HHI-320x320F Product Specifications

HHI-320x320F Product Specifications
Item	Data
Application	Horizontal
Installation Mode	Add-on
Table diameter(mm)	Ø320x320
Diameter of center through hole(mm)	Ø50x27deep
Table height (Horizontal)(mm)	240
Guide block width(mm)	18h7
Transmission Mechanisms	Worm and Worm Gear
Min. increment(deg.)	1 or 5
Indexing precision(sec.)	±5
Repeatability(sec.)	±1
Clamping system (MPa / kg/cm²)	Hirth coupling Hydraulic (3.6 / 35)
Clamping torque(N.m / kgf · m)	2943 / 300
Servo motor model(FANUC)(Straight shaft without key)	ßiS12
Servo motor model(MITSUBISHI) (Straight shaft without key)	HF/HG-104/154
Speed reduction ratio	1:120
Max. rotation rate of table(min-1)	25
Allowable workpiece load (Horizontal)(kg)	300
Allowable thrust load (with rotary table clamping) F (N / kgf)	15696 / 1600
(Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m)	1717 / 175
(Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m)	2943 / 300
Net weight ( sever motor excluded)(kg)	149
＊1	The structural limit value, while the actual operating speed will vary depending on the motor.

Frequently Asked Questions

What is the HHI-320x320F?

The HHI-320x320F is a Hirth coupling index table made for CNC machining. It helps position the workpiece accurately during machining.

What is the table size of HHI-320x320F?

The table size is 320 x 320 mm.

What type of clamping does it use?

It uses hydraulic clamping with a Hirth coupling system. This helps hold the table firmly during machining.

How accurate is the HHI-320x320F?

It offers indexing accuracy of ±5 arc seconds and repeatability of ±1 arc second.

What is the minimum indexing angle of HHI-320x320F?

The table can index in 1-degree or 5-degree increments, depending on the setup.

What is the maximum speed?

The maximum rotation speed is 25 rpm.

How much weight can it handle?

The HHI-320x320F can handle a horizontal workpiece load of up to 300 kg.

What type of gear system does HHI-320x320F use?

It uses a worm and worm gear system with a 1:120 reduction ratio.

Which servo motors can be used with this table?

The HHI-320x320F is available for FANUC and Mitsubishi servo motor systems.

Where is the HHI-320x320F used?

It is used for CNC machining applications that need accurate positioning, strong clamping, and repeatable indexing.

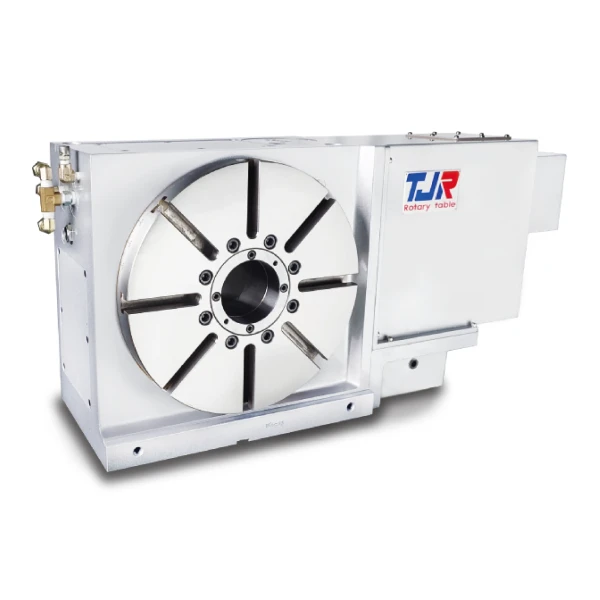

HI-320R Product Specifications

HI-320R Product Specifications
Item	Data
Application	Vertical or Horizontal
Installation Mode	Add-on
Table diameter(mm)	Ø320
Inner diameter of mandrel sleeve(mm)	Ø80H7
Diameter of center through hole(mm)	Ø80
Center height (Vertical)(mm)	210
Table height (Horizontal)(mm)	250
Table T-slot width(mm)	14H7
Guide block width(mm)	18h7
Transmission Mechanisms	Worm and Worm Gear
Min. increment(deg.)	1 or 5
Indexing precision(sec.)	± 5
Repeatability(sec.)	± 1
Clamping system (MPa / kg/cm²)	Hirth coupling Hydraulic (3.5 / 35)
Clamping torque(N.m / kgf · m)	3924 / 400
Servo motor model(FANUC)(Straight shaft without key)	βis22
Servo motor model(MITSUBISHI) (Straight shaft without key)	HG - 204
Speed reduction ratio	1:120
Max. rotation rate of table(min-1)	25
Allowable inertia load capacity (vertical)(kg-m²)	4.5
Allowable workpiece load (Vertical)(kg)	175
Allowable workpiece load (with support table)(kg)	350
Allowable workpiece load (Horizontal)(kg)	350
Allowable thrust load (with rotary table clamping) F (N / kgf)	19620 / 2000
(Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m)	2453 / 250
(Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m)	3924 / 400
Net weight ( sever motor excluded)(kg)	210
＊1	The structural limit value, while the actual operating speed will vary depending on the motor.

Frequently Asked Questions

What is the HI-320R?

The HI-320R is a CNC Hirth coupling indexing table used for accurate rotary positioning during machining.

What is the table size of the HI-320R?

The HI-320R has a table diameter of 320 mm.

Can the HI-320R be used vertically and horizontally?

Yes. The HI-320R can be installed for both vertical and horizontal machining.

How accurate is the HI-320R?

The HI-320R has an indexing accuracy of ±5 seconds and repeatability of ±1 second.

What type of clamping system does the HI-320R use?

The HI-320R uses a Hirth coupling with hydraulic clamping for strong and stable positioning.

How much weight can the HI-320R hold?

The HI-320R can hold up to 175 kg in vertical use and up to 350 kg with a support table or in horizontal use.

What is the maximum speed of the HI-320R?

The maximum table rotation speed is 25 min⁻¹.

Which servo motors are available for the HI-320R?

The HI-320R is available with FANUC βis22 and Mitsubishi HG-204 servo motor options.

What indexing increments are available on the HI-320R?

The HI-320R is available with minimum indexing increments of 1° or 5°.

Where can the HI-320R be used?

The HI-320R is suitable for CNC machining applications that need accurate rotary positioning and strong workpiece clamping.

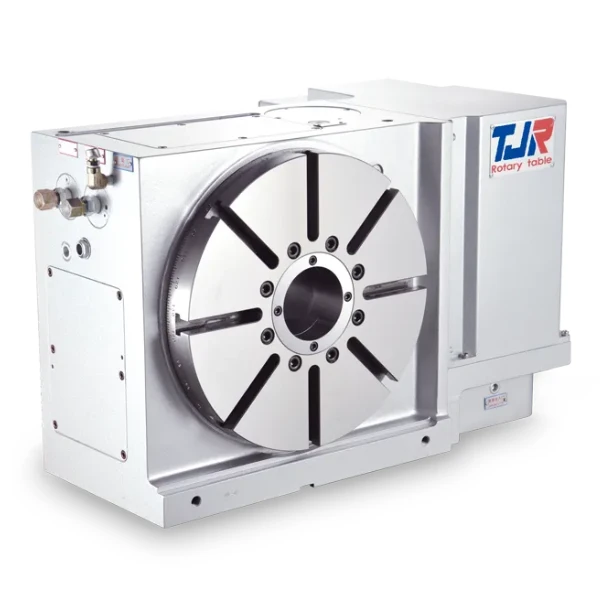

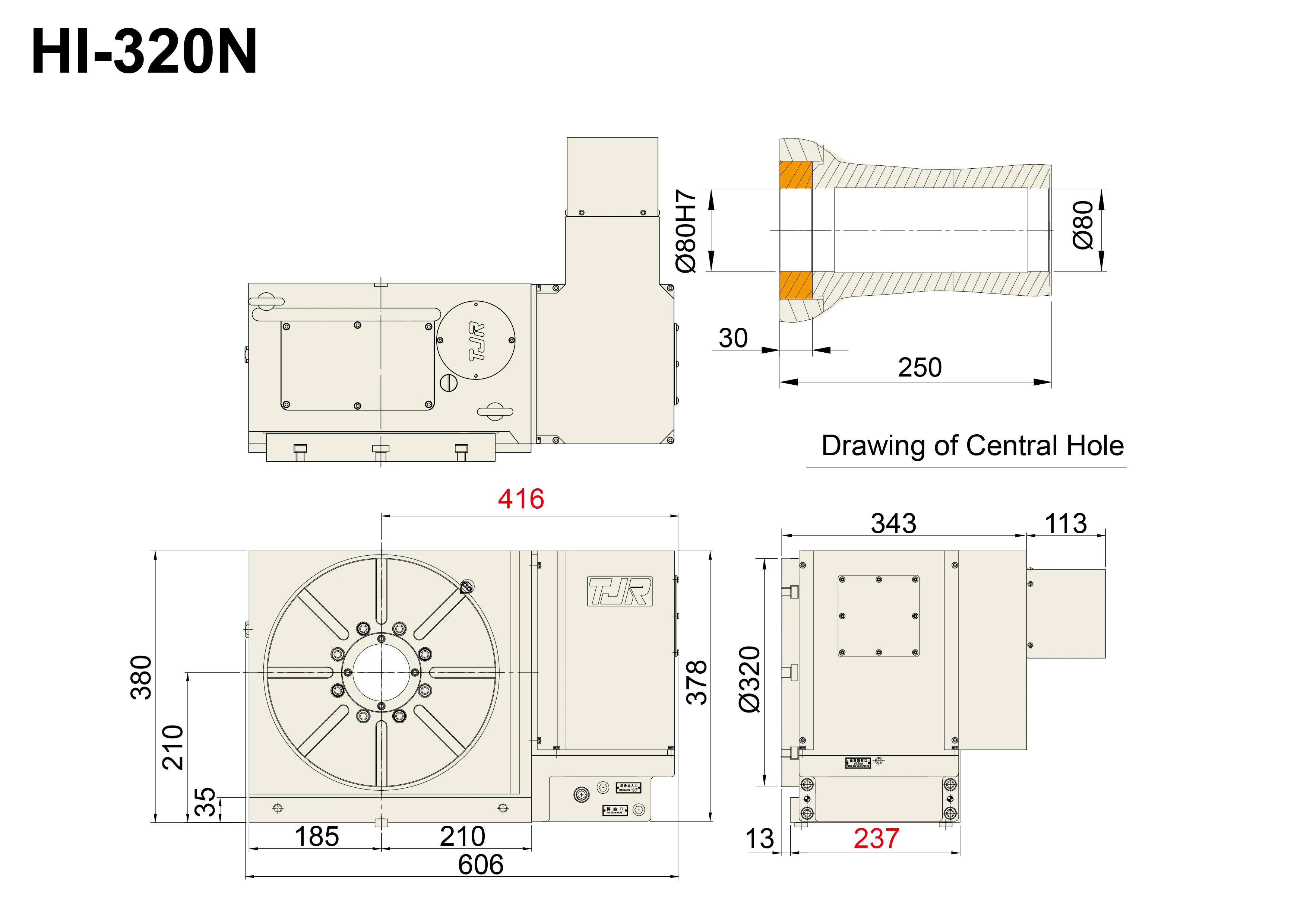

HI-320N Product Specifications

HI-320N Product Specifications
Item	Data
Application	Vertical or Horizontal
Installation Mode	Add-on
Table diameter(mm)	Ø320
Inner diameter of mandrel sleeve(mm)	Ø80H7
Diameter of center through hole(mm)	Ø80
Center height (Vertical)(mm)	210
Table height (Horizontal)(mm)	250
Table T-slot width(mm)	14H7
Guide block width(mm)	18h7
Transmission Mechanisms	Worm and Worm Gear
Min. increment(deg.)	1 or 5
Indexing precision(sec.)	± 5
Repeatability(sec.)	± 1
Clamping system (MPa / kg/cm²)	Hirth coupling Hydraulic (3.5 / 35)
Clamping torque(N.m / kgf · m)	3924 / 400
Servo motor model(FANUC)(Straight shaft without key)	βis22
Servo motor model(MITSUBISHI) (Straight shaft without key)	HG - 204
Speed reduction ratio	1:120
Max. rotation rate of table(min-1)	25
Allowable inertia load capacity (vertical)(kg-m²)	4.5
Allowable workpiece load (Vertical)(kg)	175
Allowable workpiece load (with support table)(kg)	350
Allowable workpiece load (Horizontal)(kg)	350
Allowable thrust load (with rotary table clamping) F (N / kgf)	19620 / 2000
(Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m)	2453 / 250
(Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m)	3924 / 400
Net weight ( sever motor excluded)(kg)	210
＊1	The structural limit value, while the actual operating speed will vary depending on the motor.

Frequently Asked Questions

What is the HI-320N?

The HI-320N is a CNC Hirth coupling indexing table used for accurate rotary positioning during machining.

What is the table size of the HI-320N?

The HI-320N has a table diameter of 320 mm.

Can the HI-320N be used vertically and horizontally?

Yes. The HI-320N can be used for both vertical and horizontal machining.

How accurate is the HI-320N?

The HI-320N has an indexing accuracy of ±5 seconds and repeatability of ±1 second.

What type of clamping system does the HI-320N use?

The HI-320N uses a Hirth coupling with hydraulic clamping for strong and stable positioning.

How much weight can the HI-320N hold?

The HI-320N can hold up to 175 kg in vertical use and up to 350 kg in horizontal use or with a support table.

What is the maximum speed of the HI-320N?

The maximum rotation speed of the HI-320N is 25 min⁻¹.

Which servo motors are available for the HI-320N?

The HI-320N is available with FANUC βis22 and Mitsubishi HG-204 servo motor options.

What indexing increments are available on the HI-320N?

The HI-320N is available with minimum indexing increments of 1° or 5°.

Where is the HI-320N used?

The HI-320N is used in CNC machining applications that need accurate rotary positioning, strong clamping, and reliable workpiece support.
