TJR Roller Gear Cam Rotary Table - RC Ø210

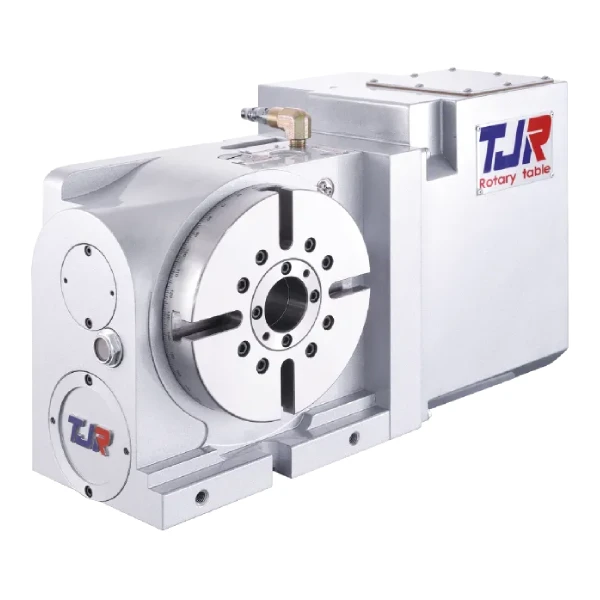

The TJR RC-210RH is a roller gear cam rotary table designed for CNC machining and indexing applications. It can be installed in vertical or horizontal positions, making it suitable for different CNC machine setups.

Yes. The RC-210RH can be used as a 4th-axis CNC rotary table for multi-side machining, indexing, and rotary positioning. It can help reduce the need to manually reposition a workpiece during machining.

The RC-210RH uses a roller gear cam transmission. The roller cam design provides smooth rotary movement and is designed for high repeatability, low backlash, and reliable CNC indexing performance.

The RC-210RH has a 210 mm table diameter. It also features a 40 mm center through hole, making it suitable for various workholding and CNC machining applications.

The RC-210RH has an indexing precision of 30 arc-seconds and a repeatability of 6 arc-seconds. Its minimum indexing increment is 0.001°, making it suitable for precision CNC positioning applications.

Unlike the pneumatic RC-210R, the RC-210RH uses hydraulic clamping at 3.5 MPa (35 kg/cm²). It provides a specified clamping torque of 491 N·m, helping secure the rotary table during machining.

The maximum table rotation speed is 83.3 rpm. The actual operating speed can vary depending on the servo motor, workpiece, machine configuration, and machining conditions.

The RC-210RH has an allowable workpiece load of 75 kg in vertical operation. With a support table, the allowable load is 150 kg, while the allowable horizontal workpiece load is also 150 kg.

The roller gear cam system is designed to provide low backlash, high repeatability, high rigidity, smooth movement, and low maintenance. Its rolling-contact design also helps improve transmission efficiency and reduce wear compared with traditional sliding-contact systems.

The TJR RC-210RH CNC rotary table combines a 210 mm table, roller gear cam transmission, hydraulic clamping, 30 arc-second indexing precision, and 6 arc-second repeatability. It can be a good option for manufacturers looking for a reliable 4th-axis rotary table for precision indexing and multi-side CNC machining.

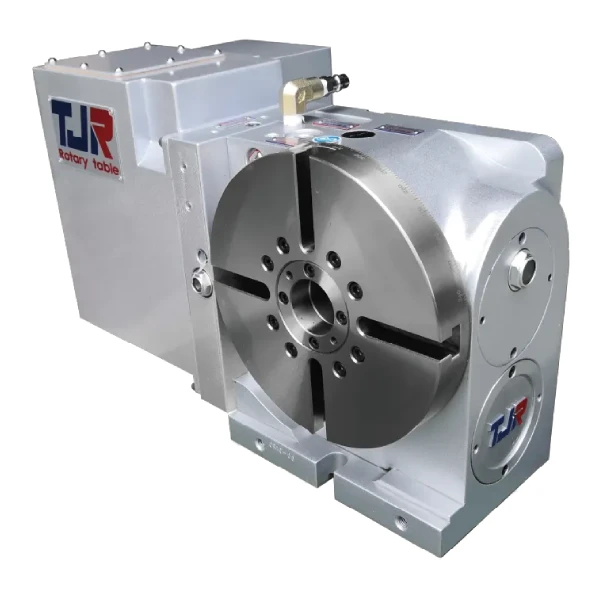

The TJR RC-210L is a roller gear cam rotary table designed for CNC machining and indexing applications. It can be installed in either a vertical or horizontal position, making it suitable for different CNC machine setups.

Yes. The RC-210L can be used as a 4th-axis CNC rotary table for indexing, positioning, and multi-side machining. It allows the workpiece to be rotated accurately during CNC operations.

The RC-210L uses a roller cam transmission mechanism. This roller gear cam design is made for smooth rotary movement, high repeatability, and reliable positioning during CNC machining.

The RC-210L has a 210 mm table diameter. It also has a 40 mm center through hole and a Ø40H7 mandrel sleeve, providing flexibility for different workholding setups.

The RC-210L has an indexing precision of 30 arc-seconds and a repeatability of 6 arc-seconds. Its minimum indexing increment is 0.001°, making it suitable for precision CNC indexing applications.

The RC-210L uses a pneumatic clamping system with a pressure of 0.6 MPa (6 kg/cm²). The specified clamping torque is 304 N·m, helping hold the rotary table securely during machining.

The maximum rotation speed of the RC-210L is 83.3 rpm. The actual operating speed can vary depending on the servo motor and CNC machine configuration.

The RC-210L has an allowable workpiece load of 75 kg for vertical operation. With a support table, the allowable load increases to 150 kg, while the allowable horizontal workpiece load is also 150 kg.

The RC-210L roller gear cam rotary table is designed for smooth movement, accurate indexing, high repeatability, and reliable CNC positioning. Its roller cam transmission also makes it suitable for precision machining and production applications.

The TJR RC-210L CNC rotary table combines a 210 mm table diameter, roller cam transmission, pneumatic clamping, 30 arc-second indexing precision, and 6 arc-second repeatability. It is a practical choice for manufacturers looking for a 4th-axis rotary table for accurate CNC indexing and multi-side machining.

The TJR RC-210LH is a roller gear cam rotary table designed for CNC machining and indexing applications. It can be installed in either a vertical or horizontal position, making it suitable for different CNC machine setups.

Yes. The RC-210LH can be used as a 4th-axis CNC rotary table for accurate indexing, positioning, and multi-side machining. It allows the workpiece to be rotated during machining without repositioning.

The RC-210LH uses a roller cam transmission mechanism. This design provides smooth rotary movement and is suitable for CNC applications for accurate positioning and repeatable indexing.

The RC-210LH has a 210 mm table diameter. It features a 40 mm center through hole and a Ø40H7 mandrel sleeve, giving users flexibility for different workholding arrangements.

The RC-210LH has an indexing precision of 30 arc-seconds and a repeatability of 6 arc-seconds. It also has a minimum indexing increment of 0.001°, making it suitable for precision CNC indexing applications.

The RC-210LH uses hydraulic clamping with a pressure of 3.5 MPa (35 kg/cm²). Its specified clamping torque is 491 N·m, helping secure the rotary table during machining operations.

The maximum rotation speed of the RC-210LH is 83.3 rpm. The table has a 1:36 speed reduction ratio and can be configured with compatible FANUC or Mitsubishi servo motors.

The RC-210LH has an allowable workpiece load of 75 kg in vertical operation. With a support table, the allowable load is 150 kg, while the allowable horizontal workpiece load is also 150 kg.

The RC-210LH roller gear cam rotary table is designed for smooth rotary movement, accurate indexing, high repeatability, and reliable clamping. Its roller cam transmission makes it well suited for precision CNC machining and production applications.

The TJR RC-210LH CNC rotary table combines a 210 mm table diameter, roller cam transmission, hydraulic clamping, 30 arc-second indexing precision, and 6 arc-second repeatability. It is a practical option for manufacturers looking for a 4th-axis rotary table for accurate CNC indexing and multi-side machining.
