TJR Roller Gear Cam Rotary Table - RC Ø320

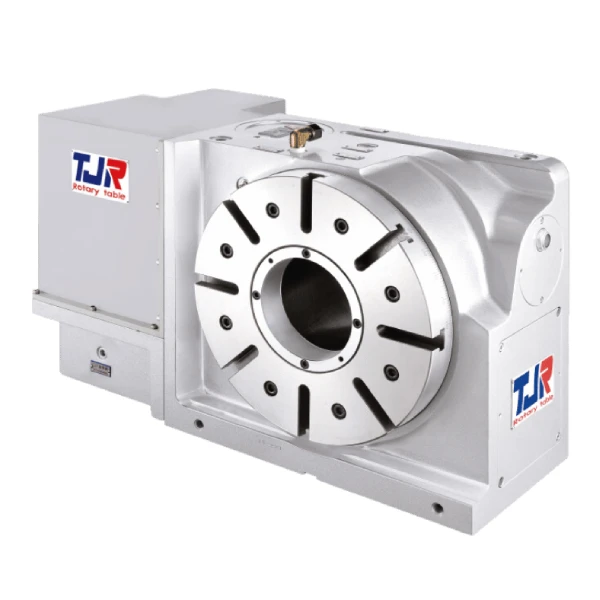

The RC-320L is a CNC rotary table used to rotate and position workpieces during machining. It is useful for jobs where you need to machine different sides of a part without changing its setup.

Yes. The RC-320L can be used as a 4th axis rotary table for CNC machines. It helps automate workpiece rotation and makes multi-side machining easier.

The RC-320L uses a roller gear cam mechanism. This provides smooth rotary movement and accurate positioning for CNC indexing applications.

The RC-320L has a 320 mm table diameter. It also features a 105 mm center through hole, which can be useful for different workholding and machining setups.

Yes. The RC-320L supports both vertical and horizontal installation, so you can choose the setup that works best for your CNC machine and application.

The RC-320L has an indexing precision of 20 arc-seconds and a repeatability of 6 arc-seconds. It also supports a minimum increment of 0.001° for precise rotary positioning.

The RC-320L can handle up to 350 kg horizontally. For vertical installation, the rated workpiece load is 150 kg, or up to 350 kg with a support table.

The maximum table rotation speed is 33.3 rpm. This gives the RC-320L controlled movement for indexing and CNC machining applications.

The RC-320L uses hydraulic clamping with a specified pressure of 3.5 MPa. The clamping torque is rated at 1,128 N·m, helping keep the table securely positioned during machining.

The RC-320L is a practical choice if you need accurate rotary positioning, smooth movement, and reliable 4th axis CNC machining. Its 320 mm table size and flexible vertical or horizontal installation make it suitable for a range of machining applications.

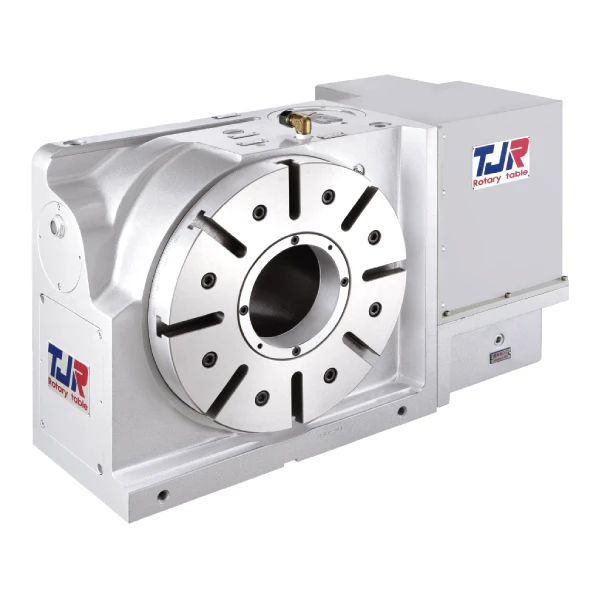

The RC-320N is a roller gear cam CNC rotary table designed for accurate workpiece positioning. It can be used in both vertical and horizontal machining setups.

The RC-320N is useful for 4th axis CNC machining, especially when a part needs to be rotated to different positions during machining. It can help reduce manual repositioning and make production more efficient.

The roller gear cam design allows the rotary table to transfer motion through rolling contact instead of traditional sliding gear contact. This helps provide low backlash, high repeatability, and smooth movement.

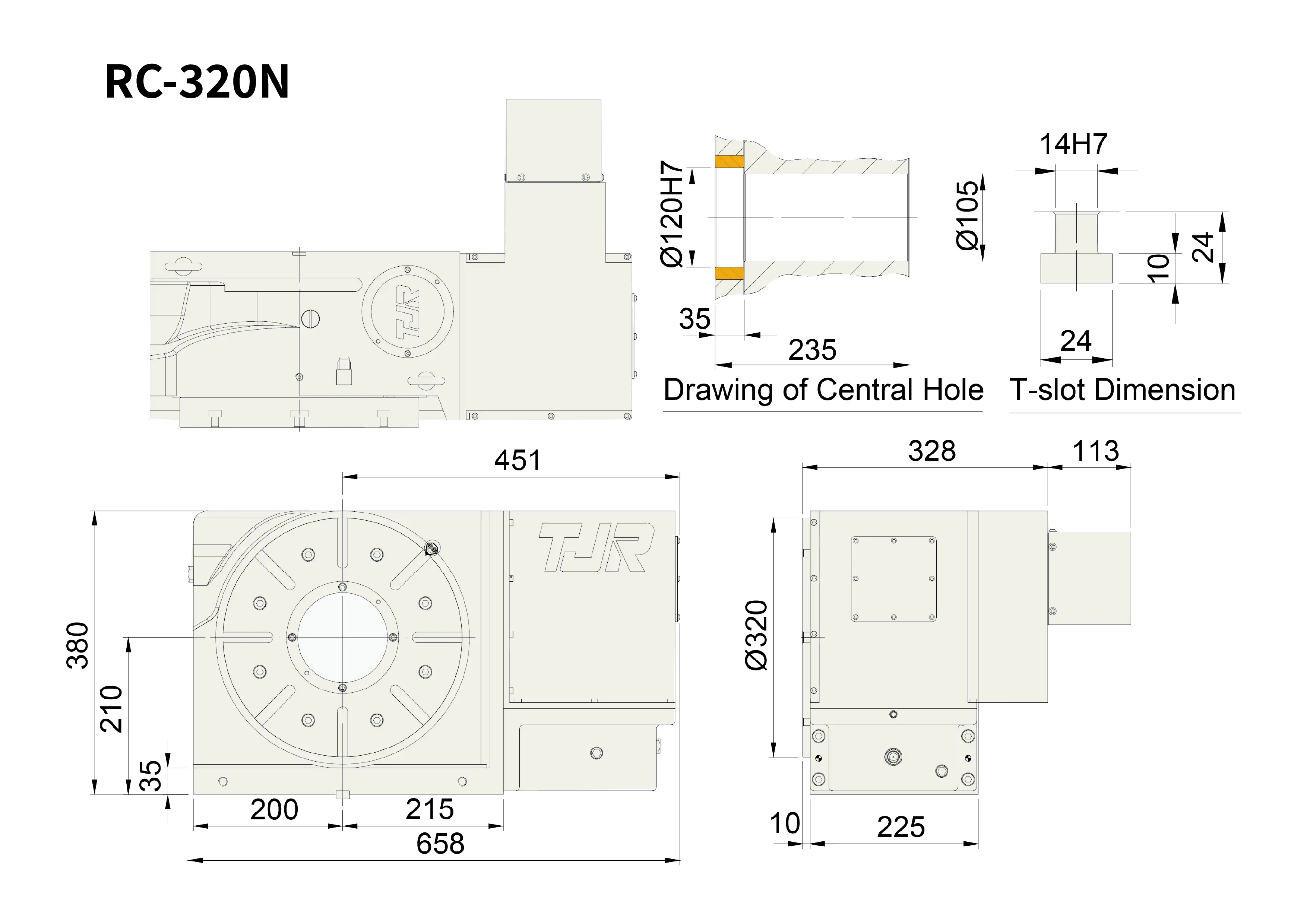

The RC-320N has a 320 mm table diameter. It also has a 105 mm center through hole and a 120 H7 × 35 mm deep mandrel sleeve, giving you flexibility when choosing fixtures and workholding.

Yes. The RC-320N is designed as an add-on rotary table, so it can be integrated with suitable CNC machining centers. The exact installation and servo motor configuration should be matched to the machine.

The RC-320N has an indexing precision of 20 arc-seconds and 6 arc-seconds repeatability. Its minimum programmable increment is 0.001°, making it suitable for applications where consistent rotary positioning is important.

The RC-320N is rated for 150 kg vertically. When used with a support table, the allowable workpiece load increases to 350 kg. The actual load should also be checked against the fixture and machining conditions.

The maximum table rotation speed is 33.3 rpm. With its 1:90 speed reduction ratio, the RC-320N is designed to provide controlled and accurate rotary movement during CNC operations.

Yes. The RC-320N uses hydraulic clamping at 3.5 MPa (35 kg/cm²), with a specified clamping torque of 1,128 N·m. This helps keep the table firmly positioned during machining.

The RC-320N is worth considering if you need a 320 mm CNC rotary table with accurate indexing, high repeatability, and a roller gear cam drive. Its compact design and vertical or horizontal installation options make it suitable for different CNC machining applications.
