TJR Roller Gear Cam Rotary Table - RC Ø400

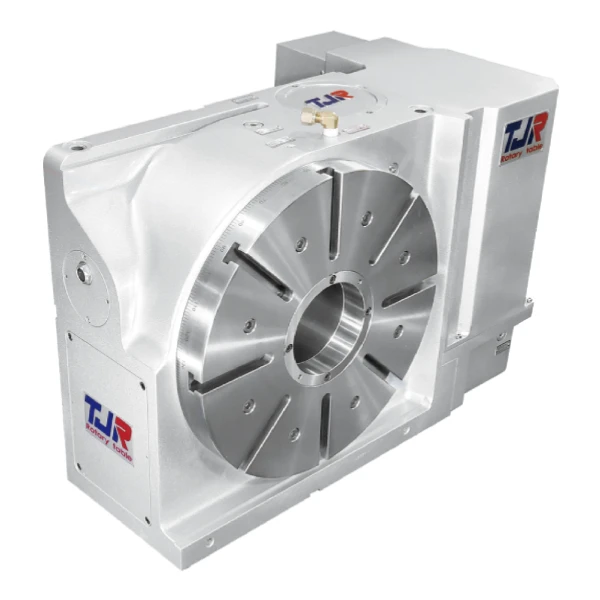

The RC-400N is a 400 mm CNC rotary table designed for accurate workpiece positioning during machining. It uses a roller cam drive and can be installed vertically or horizontally.

The RC-400N allows you to rotate a workpiece to different positions during machining. This is useful for 4th axis machining, especially when several sides of a component need to be machined in one setup.

The RC-400N uses a roller cam transmission mechanism. The design provides smooth rotary movement and accurate indexing for CNC machining applications.

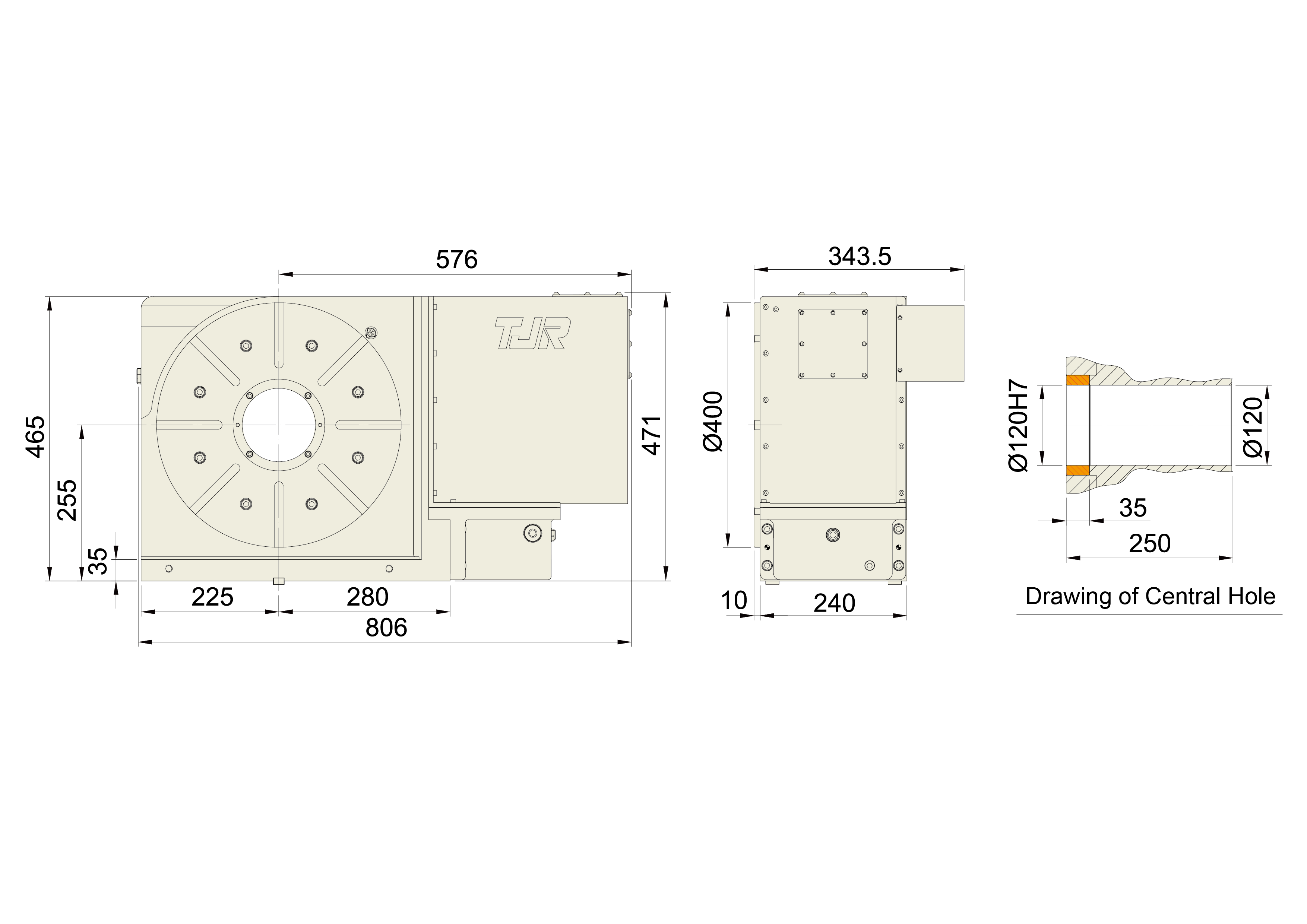

The RC-400N has a 400 mm diameter table with a 120 mm center through hole. The table also has a 120H7 mandrel sleeve for suitable workholding setups.

Yes. The RC-400N supports both horizontal and vertical installation, so you can choose the configuration that fits your CNC machine and machining requirements.

The RC-400N provides 20 arc-seconds indexing precision and 6 arc-seconds repeatability. It also has a minimum increment of 0.001°, which helps when precise rotary positioning is needed.

The specified vertical workpiece load is 200 kg. When used with a support table, the allowable workpiece load increases to 500 kg.

The RC-400N has a maximum table rotation speed of 33.3 rpm and a 1:90 speed reduction ratio. This provides controlled movement for indexing and machining operations.

The RC-400N uses hydraulic clamping at 3.5 MPa and has a specified clamping torque of 1,962 N·m. This helps keep the rotary table securely clamped during machining.

The RC-400N is suitable for manufacturers who need a large CNC rotary table with accurate indexing and repeatable positioning. Its 400 mm table, roller cam mechanism, and 500 kg supported load capacity make it a useful option for demanding CNC machining work.

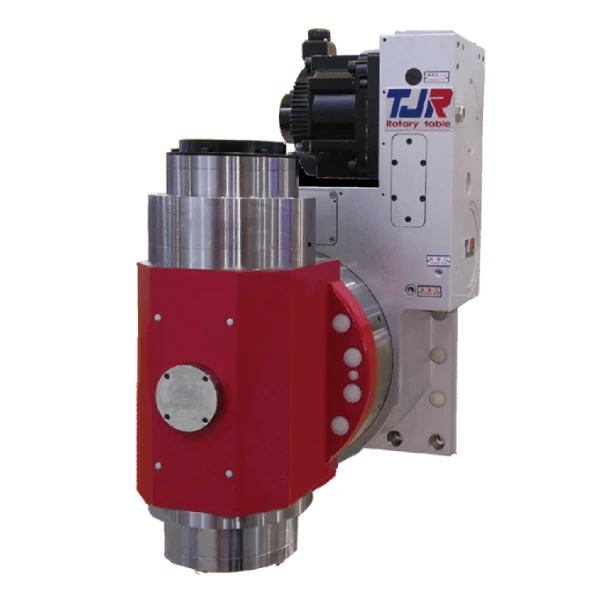

The HRC-400SP is a CNC roller gear cam rotary table designed for horizontal machining. It can be added to a suitable CNC machine to provide accurate rotary positioning.

Yes. The HRC-400SP has an add-on installation design, making it suitable for integrating with compatible CNC machining equipment.

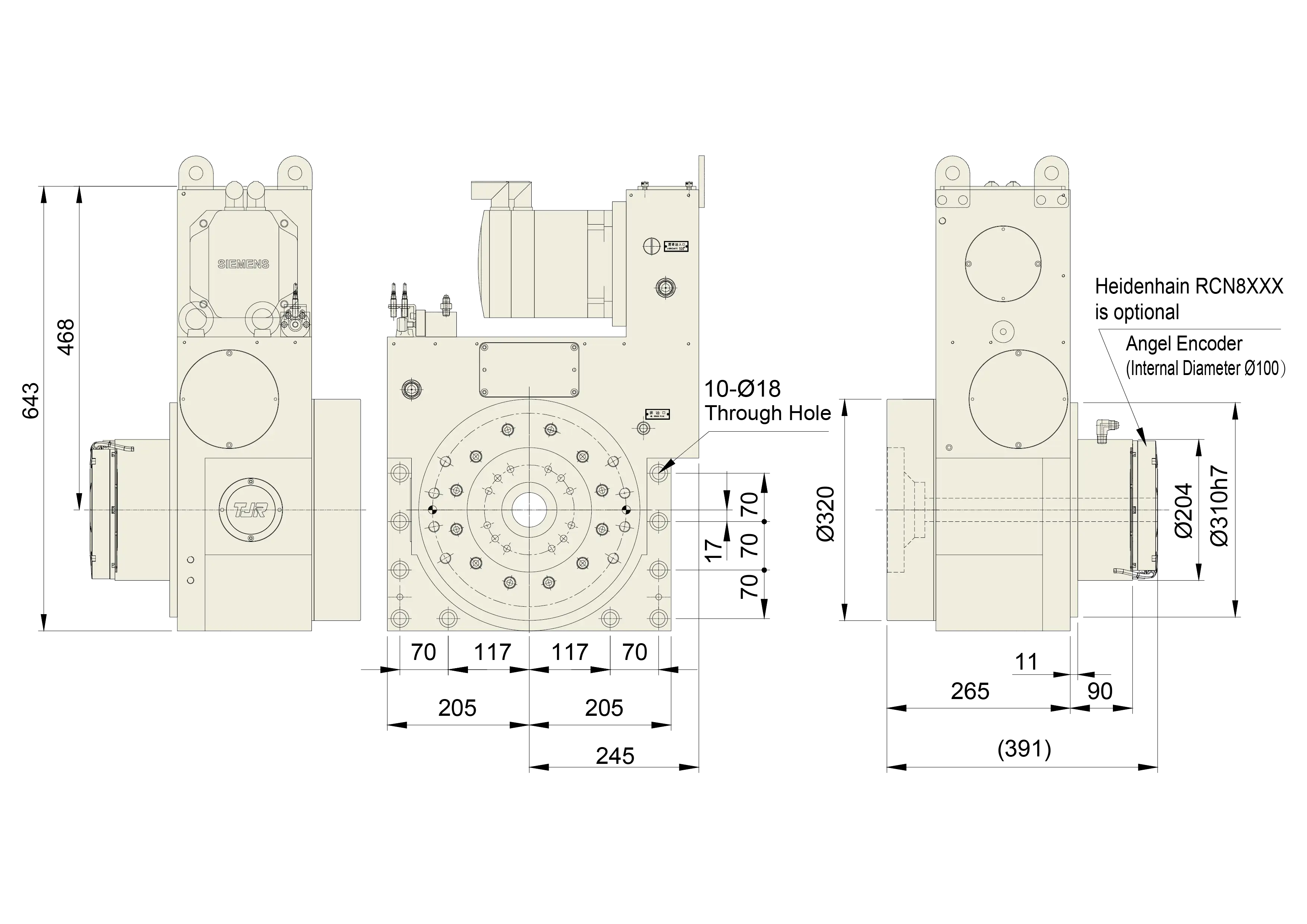

The HRC-400SP has a 400 mm table diameter. It also comes with a Ø120H7 mandrel sleeve and a Ø34 mm center through hole.

Yes. The HRC-400SP is specifically listed with a horizontal application and installation mode, making it suitable for CNC machines where the rotary table needs to operate horizontally.

The HRC-400SP has an indexing precision of ±10 arc-seconds and repeatability of 6 arc-seconds. It also supports a minimum increment of 0.001°.

It uses a roller cam transmission mechanism. This design provides controlled and smooth rotary movement for CNC indexing applications.

The specified allowable workpiece load is 200 kg. The actual load that can be used should also take the workholding setup and machining conditions into account.

The maximum table rotation rate is 33.3 rpm, with a 1:90 speed reduction ratio. The actual operating speed can vary depending on the selected servo motor and machining application.

The HRC-400SP uses hydraulic clamping at 45 kg/cm² and has a specified clamping torque of 155 N·m. This helps keep the table securely positioned during machining.

The HRC-400SP is a good option when you need a 400 mm horizontal CNC rotary table with precise indexing and repeatable movement. Its roller cam drive, add-on design, and ±10 arc-second indexing precision make it suitable for precision machining applications.
