Hirth Coupling Index Table - HI Ø500
Sub-arcsecond angular precision for demanding multi-face machining operations.
HHI-500x500

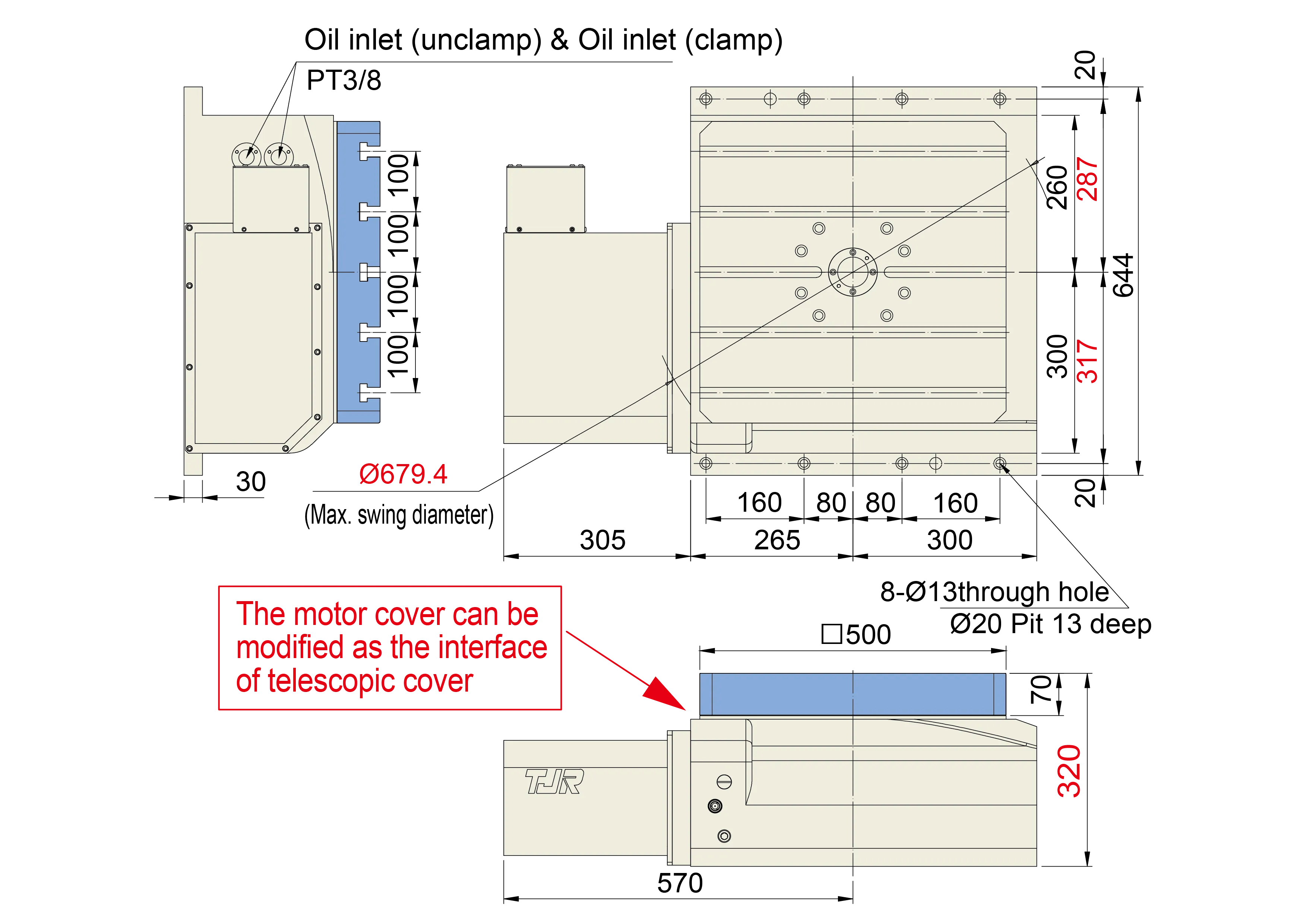

HHI-500x500 Product Specifications
| Item | Data |
|---|---|
| Application | Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | □500x500 |
| Diameter of center through hole(mm) | Ø50x27deep |
| Table height (Horizontal)(mm) | 320 |
| Table T-slot width(mm) | 18H7 |
| Guide block width(mm) | 18h7 |
| Transmission Mechanisms | Worm & Worm Gear |
| Min. increment(deg.) | 1 or 5 |
| Indexing precision(sec.) | ±5 |
