TJR Worm Gear Rotary Table - AR Ø170
Smooth seamless transmission with high reduction ratios for precision loads.
AR-170R
AR-170R Product Specifications
| Item | Data |
|---|---|
| Application | Vertical or Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø40 |
| Center height (Vertical)(mm) | 135 |
| Table height (Horizontal)(mm) | 152 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Transmission Mechanisms | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Indexing precision(sec.) | 20 |
| Repeatability(sec.) | 6 |
| Clamping system (MPa / kg/cm²) | Pneumatic (0.6 / 6) |
| Clamping torque(N.m / kgf · m) | 304 / 31 |
| Servo motor model(FANUC)(Straight shaft without key) | αiF4 / βis8 |
| Servo motor model(MITSUBISHI) (Straight shaft without key) | HG - 54 / 104 |
| Speed reduction ratio | 1:90 |
| Max. rotation rate of table(min-1) | 44.4 |
| Allowable inertia load capacity (vertical)(kg-m²) | 0.63 |
| Allowable workpiece load (Vertical)(kg) | 75 |
| Allowable workpiece load (with support table)(kg) | 150 |
| Allowable workpiece load (Horizontal)(kg) | 150 |
| Allowable thrust load (with rotary table clamping) F (N / kgf) | 14225 / 1450 |
| (Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1079 / 110 |
| (Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| Driving torque(N.m / kgf·m) | 284 / 29 |
| Net weight ( sever motor excluded)(kg) | 50 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions
The AR-170R is a worm gear rotary table for CNC machining. It has a 170 mm table diameter and is designed for accurate rotary positioning for machining applications.
The AR-170R is used when a CNC machine needs to rotate a workpiece for machining. It can be used for indexing, drilling, milling, and other operations where accurate positioning is important.
Yes. The AR-170R can be installed for both vertical and horizontal machining. This gives users more flexibility when setting up the rotary table on a CNC machine.
The AR-170R uses a worm and worm gear transmission. It has a 1:90 speed reduction ratio, which helps provide controlled and accurate table movement.
The AR-170R has a 170 mm rotary table diameter. It also has a 40 mm center through hole and a 40H7 mandrel sleeve diameter.
The AR-170R has an indexing precision of 20 seconds and a repeatability of 6 seconds. Its minimum indexing increment is 0.001°, making it suitable for precision CNC machining.
The maximum rotation speed of the AR-170R table is 44.4 rpm. The actual operating speed can depend on the servo motor and machining conditions.
For vertical use, the allowable workpiece load is 75 kg. With a support table, the capacity increases to 150 kg. The allowable workpiece load for horizontal use is also 150 kg.
The AR-170R uses a pneumatic clamping system with an operating pressure of 0.6 MPa. Its clamping torque is up to 304 N·m, helping keep the workpiece stable during machining.
The AR-170R is designed as an add-on rotary table for CNC machines. It supports servo motor options from FANUC and Mitsubishi, so the suitable motor configuration can be selected based on the CNC machine setup.

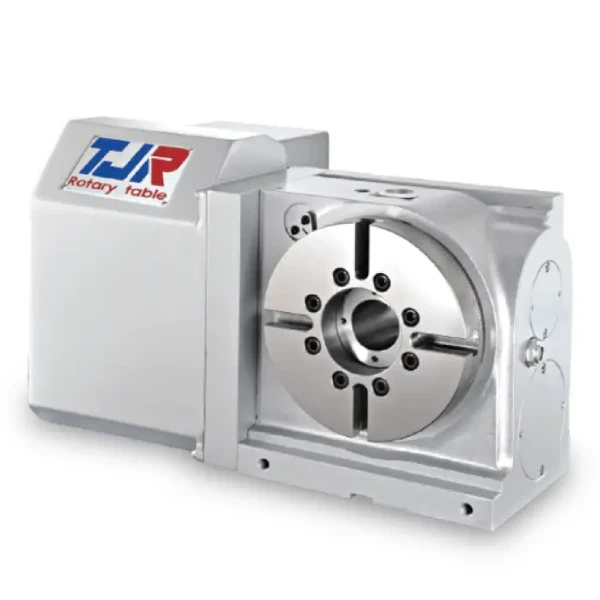

AR-170L Product Specifications
| Item | Data |
|---|---|
| Application | Vertical or Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø40 |
| Center height (Vertical)(mm) | 135 |
| Table height (Horizontal)(mm) | 152 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Transmission Mechanisms | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Indexing precision(sec.) | 20 |
| Repeatability(sec.) | 6 |
| Clamping system (MPa / kg/cm²) | Pneumatic (0.6 / 6) |
| Clamping torque(N.m / kgf · m) | 540 / 55 |
| Servo motor model(FANUC)(Straight shaft without key) | αiF4 / βis8 |
| Servo motor model(MITSUBISHI) (Straight shaft without key) | HG - 54 / 104 |
| Speed reduction ratio | 1:90 |
| Max. rotation rate of table(min-1) | 44.4 |
| Allowable inertia load capacity (vertical)(kg-m²) | 0.63 |
| Allowable workpiece load (Vertical)(kg) | 75 |
| Allowable workpiece load (with support table)(kg) | 150 |
| Allowable workpiece load (Horizontal)(kg) | 150 |
| Allowable thrust load (with rotary table clamping) F (N / kgf) | 14225 / 1450 |
| (Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1079 / 110 |
| (Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| Driving torque(N.m / kgf·m) | 284 / 29 |
| Net weight ( sever motor excluded)(kg) | 50 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions
The AR-170L is a worm gear rotary table used with CNC machines. It helps rotate and position the workpiece during machining.
The AR-170L has a 170 mm table diameter and a 40 mm center through hole.
Yes. The AR-170L can be installed and used in both horizontal and vertical positions.
The AR-170L uses a worm gear system for smooth rotary movement and accurate indexing.
The AR-170L has an indexing precision of 20 seconds and a repeatability of 6 seconds. Its minimum increment is 0.001 degrees.
The AR-170L can handle up to 75 kg in vertical use. With a support table, it can handle up to 150 kg. It can also handle up to 150 kg in horizontal use.
The maximum rotation speed of the AR-170L is 44.4 rpm.
The AR-170L uses a pneumatic clamping system with a pressure of 0.6 MPa.
The AR-170L supports FANUC αiF4 / βis8 and Mitsubishi HG-54 / 104 servo motor options.
The AR-170L is used for CNC machining, rotary positioning, indexing, and 4th-axis applications.

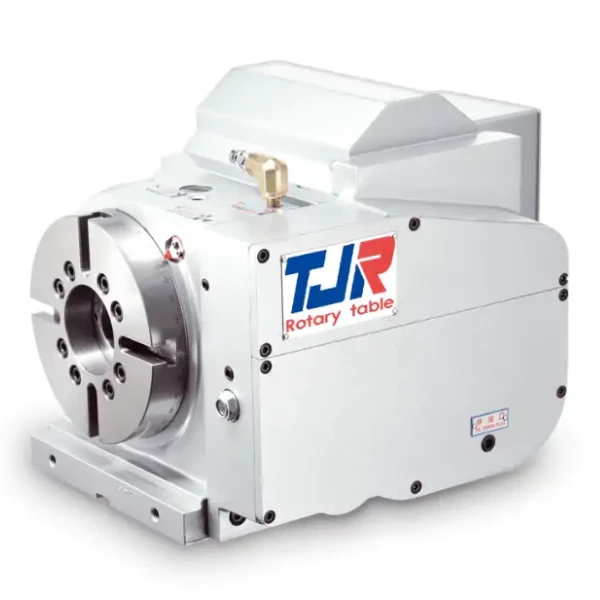

AR-170B Product Specifications
| Item | Data |
|---|---|
| Application | Vertical |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø40 × 152deep |
| Center height (Vertical)(mm) | 135 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Transmission Mechanisms | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Indexing precision(sec.) | 20 |
| Repeatability(sec.) | 6 |
| Clamping system (MPa / kg/cm²) | Pneumatic (0.6 / 6) |
| Clamping torque(N.m / kgf · m) | 304 / 31 |
| Servo motor model(FANUC)(Straight shaft without key) | αiF4 /αiF8 / βis8 |
| Servo motor model(MITSUBISHI) (Straight shaft without key) | HG - 54 / 104 |
| Speed reduction ratio | 1:90 |
| Max. rotation rate of table(min-1) | 44.4 |
| Allowable inertia load capacity (vertical)(kg-m²) | 0.63 |
| Allowable workpiece load (Vertical)(kg) | 75 |
| Allowable workpiece load (with support table)(kg) | 150 |
| Allowable thrust load (with rotary table clamping) F (N / kgf) | 14225 / 1450 |
| (Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1079 / 110 |
| (Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| Driving torque(N.m / kgf·m) | 284 / 29 |
| Net weight ( sever motor excluded)(kg) | 60 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions
The AR-170B is a CNC worm gear rotary table designed for precision indexing and rotary machining.
The AR-170B has a 170 mm table diameter.
Yes, it can be used as a 4th axis CNC rotary table with a compatible CNC machine and servo motor.
It uses a worm and worm gear transmission for accurate rotary movement.
The AR-170B has an indexing precision of 20 seconds and a repeatability of 6 seconds.
The maximum table rotation speed is 44.4 rpm.
The AR-170B supports up to 75 kg vertically and up to 150 kg with a support table.
The AR-170B uses pneumatic clamping at 0.6 MPa.
The AR-170B supports selected FANUC and Mitsubishi servo motor models.
It is suitable for CNC indexing, rotary positioning, and multi-side machining applications.

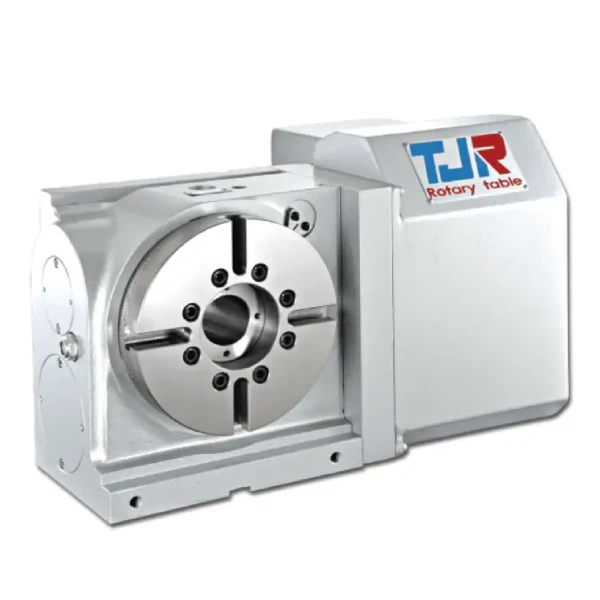

AR-170RH Product Specifications
| Item | Data |
|---|---|
| Application | Vertical or Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø40 |
| Center height (Vertical)(mm) | 135 |
| Table height (Horizontal)(mm) | 152 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Transmission Mechanisms | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Indexing precision(sec.) | 20 |
| Repeatability(sec.) | 6 |
| Clamping system (MPa / kg/cm²) | Hydraulic (3.5 / 35) |
| Clamping torque(N.m / kgf · m) | 540 / 55 |
| Servo motor model(FANUC)(Straight shaft without key) | αiF4 / βis8 |
| Servo motor model(MITSUBISHI) (Straight shaft without key) | HG - 54 / 104 |
| Speed reduction ratio | 1:90 |
| Max. rotation rate of table(min-1) | 44.4 |
| Allowable inertia load capacity (vertical)(kg-m²) | 0.63 |
| Allowable workpiece load (Vertical)(kg) | 75 |
| Allowable workpiece load (with support table)(kg) | 150 |
| Allowable workpiece load (Horizontal)(kg) | 150 |
| Allowable thrust load (with rotary table clamping) F (N / kgf) | 14225 / 1450 |
| (Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1079 / 110 |
| (Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| Driving torque(N.m / kgf·m) | 284 /29 |
| Net weight ( sever motor excluded)(kg) | 50 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions
The AR-170RH is a CNC worm gear rotary table made for 4th-axis machining. It helps rotate the workpiece to different angles during CNC machining.
The AR-170RH is used for milling, drilling, indexing, and other CNC machining jobs that need accurate rotary movement.
Yes. The AR-170RH is a 4th-axis CNC rotary table. It allows the workpiece to rotate during machining without manual repositioning.
The AR-170RH has a 170 mm table diameter. It also has a 40 mm center through hole.
The AR-170RH uses a worm gear drive. This system provides smooth and accurate rotary movement.
The AR-170RH offers 20-second indexing accuracy and 6-second repeatability. It can provide precise positioning for CNC machining.
The AR-170RH uses a hydraulic brake system. It helps hold the rotary table firmly during machining.
The AR-170RH can handle up to 75 kg in vertical use and up to 150 kg in horizontal use, depending on the setup and machining conditions.
The AR-170RH is available with selected FANUC and Mitsubishi servo motors. The right motor depends on the CNC machine and control system.
The AR-170RH offers accurate rotation, a strong worm gear drive, and hydraulic clamping. It can be used in both vertical and horizontal positions for 4th-axis CNC machining.

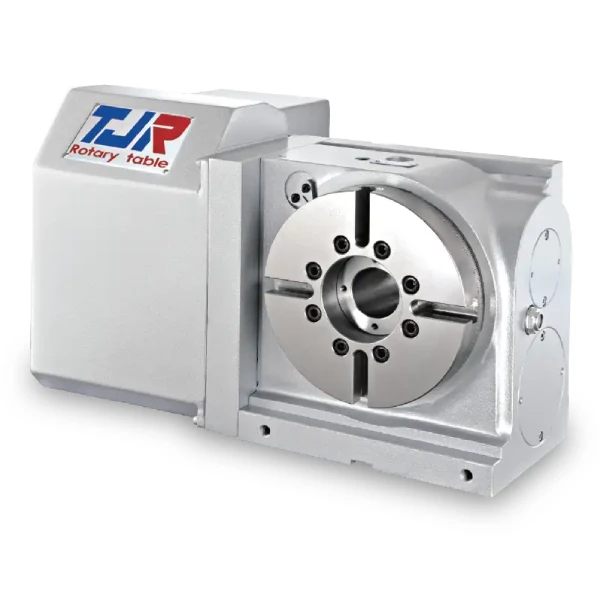

AR-170LH Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø40 |
| Center height (Vertical)(mm) | 135 |
| Table height (Horizontal)(mm) | 152 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Transmission Mechanisms | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Indexing precision(sec.) | 20 |
| Repeatability(sec.) | 6 |
| Clamping system (MPa / kg/cm²) | Hydraulic (3.5 / 35) |
| Clamping torque(N.m / kgf · m) | 540 / 55 |
| Servo motor model(FANUC)(Straight shaft without key) | αiF4 / βis8 |
| Servo motor model(MITSUBISHI) (Straight shaft without key) | HG - 54 / 104 |
| Speed reduction ratio | 1 / 90 |
| Max. rotation rate of table(min-1) | 44.4 |
| Allowable inertia load capacity (vertical)(kg-m²) | 0.63 |
| Allowable workpiece load (Vertical)(kg) | 75 |
| Allowable workpiece load (with support table)(kg) | 150 |
| Allowable workpiece load (Horizontal)(kg) | 150 |
| Allowable thrust load (with rotary table clamping) F (N / kgf) | 14225 / 1450 |
| (Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1079 / 110 |
| (Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| Driving torque(N.m / kgf·m) | 284 /29 |
| Net weight ( sever motor excluded)(kg) | 50 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions
The AR-170LH is a worm gear rotary table made for CNC machines. It is used for accurate rotary positioning and indexing.
The AR-170LH has a 170 mm diameter table. Its compact size makes it suitable for different CNC machining applications.
Yes. The AR-170LH can be used as a CNC 4th axis rotary table for machining parts from different angles.
Yes. The AR-170LH can be installed for both horizontal and vertical machining applications.
The AR-170LH uses a worm gear drive. It has a 1:90 reduction ratio for smooth and controlled rotary movement.
The AR-170LH has an indexing accuracy of 20 seconds and a repeatability of 6 seconds. This helps provide accurate and consistent positioning.
The AR-170LH can handle up to 75 kg in vertical use. With a support table, it can handle up to 150 kg.
The maximum table speed is 44.4 rpm. The actual speed depends on the servo motor and machining conditions.
The AR-170LH is available with FANUC and Mitsubishi servo motor options. This makes it easier to match with different CNC machines.
The AR-170LH can be used for CNC milling, indexing, drilling, and other machining jobs that require accurate rotary positioning.
AR-170BH Product Specifications
| Item | Data |
|---|---|
| Application | Vertical |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø40 × 152deep |
| Center height (Vertical)(mm) | 135 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Transmission Mechanisms | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Indexing precision(sec.) | 20 |
| Repeatability(sec.) | 6 |
| Clamping system (MPa / kg/cm²) | Hydraulic (3.5 / 35) |
| Clamping torque(N.m / kgf · m) | 540 / 55 |
| Servo motor model(FANUC)(Straight shaft without key) | αiF4 /αiF8 / βis8 |
| Servo motor model(MITSUBISHI) (Straight shaft without key) | HG - 54 / 104 |
| Speed reduction ratio | 1:90 |
| Max. rotation rate of table(min-1) | 44.4 |
| Allowable inertia load capacity (vertical)(kg-m²) | 0.63 |
| Allowable workpiece load (Vertical)(kg) | 75 |
| Allowable workpiece load (with support table)(kg) | 150 |
| Allowable thrust load (with rotary table clamping) F (N / kgf) | 14225 / 1450 |
| (Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1079 / 110 |
| (Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| Driving torque(N.m / kgf·m) | 284 /29 |
| Net weight ( sever motor excluded)(kg) | 60 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions
The AR-170BH is a CNC rotary table used for accurate and smooth workpiece rotation. It can be used for 4th and 5th axis CNC machining.
The AR-170BH has a 170 mm diameter table. It is a compact rotary table for CNC machines.
The AR-170BH uses hydraulic clamping to hold the workpiece firmly during machining.
The AR-170BH provides accurate indexing with 20-second indexing precision and 6-second repeatability.
The AR-170BH can reach a maximum speed of 44.4 rpm.
The rotary table can hold up to 75 kg when installed vertically. With a support table, it can hold up to 150 kg.
The AR-170BH is available with compatible FANUC and Mitsubishi servo motors.
The AR-170BH uses a worm gear system with a 1:90 reduction ratio.
The AR-170BH has a 40 mm center through hole, which allows space for workholding and other machining needs.
The AR-170BH offers accurate indexing, strong hydraulic clamping, smooth rotation, and a compact design for CNC machining.
AR-170-2W Product Specifications
| Item | Data |
|---|---|
| Application | Vertical |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø40 |
| Distance between table centers(mm) | 152 |
| Center height (Vertical)(mm) | 175 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Transmission Mechanisms | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Indexing precision(sec.) | 40 |
| Repeatability(sec.) | 6 |
| Clamping system (MPa / kg/cm²) | Pneumatic (0.6 / 6) |
| Clamping torque(N.m / kgf · m) | 304 / 31 |
| Servo motor model(FANUC)(Straight shaft without key) | αiF8 / βis8 |
| Servo motor model(MITSUBISHI) (Straight shaft without key) | HG - 104 / 154 |
| Speed reduction ratio | 1:90 |
| Max. rotation rate of table(min-1) | 44.4 |
| Allowable inertia load capacity (vertical)(kg-m²) | 0.63 |
| Allowable workpiece load (Vertical)(kg) | 75 |
| Allowable workpiece load (with support table)(kg) | 150 |
| Allowable thrust load (with rotary table clamping) F (N / kgf) | 14225 / 1450 |
| (Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1079 / 110 |
| (Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| Driving torque(N.m / kgf·m) | 284 / 29 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions

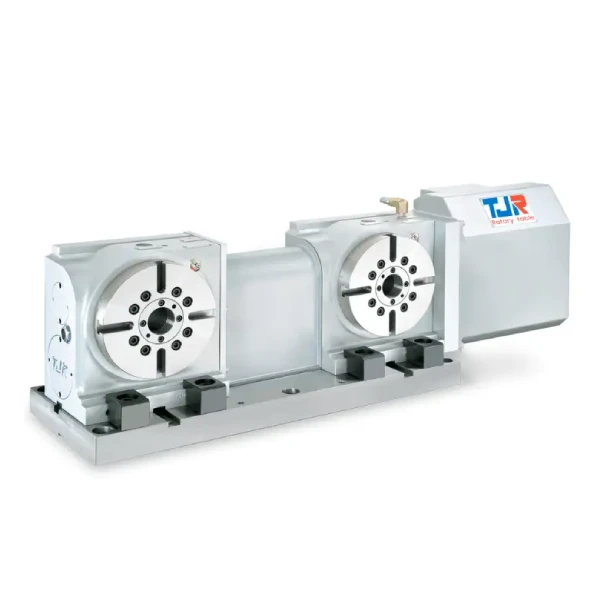

The AR-170-2W is a worm gear rotary table for CNC machines. It is designed for accurate workpiece positioning and 4th-axis machining.
The AR-170-2W has a 170 mm table diameter. It is suitable for CNC machining applications that need a larger working area.
Yes. The AR-170-2W can be used as a 4th-axis CNC rotary table. It allows the workpiece to rotate to different positions during machining.
The AR-170-2W uses a worm and worm gear transmission. This system provides controlled and accurate rotary movement.
The AR-170-2W can handle up to 75 kg in vertical use. With a support table, the allowable workpiece load can reach 150 kg.
The AR-170-2W uses pneumatic clamping. The clamping pressure is 0.6 MPa, or about 6 kg/cm².
The minimum increment is 0.001 degree. The indexing precision is 40 seconds, and the repeatability is 6 seconds.
The maximum table rotation speed is 44.4 rpm. The actual working speed can depend on the motor and machining conditions.
The AR-170-2W can be used for CNC milling, drilling, and other machining operations that require accurate rotary positioning and multi-side machining.
The AR-170-2W offers a 170 mm table, worm gear transmission, pneumatic clamping, and accurate rotary positioning. It is a suitable choice for CNC machines that need a reliable 4th-axis rotary table.
AR-170-3W Product Specifications
| Item | Data |
|---|---|
| Application | Vertical |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø40 |
| Distance between table centers(mm) | 152 |
| Center height (Vertical)(mm) | 175 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Transmission Mechanisms | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Indexing precision(sec.) | 40 |
| Repeatability(sec.) | 6 |
| Clamping system (MPa / kg/cm²) | Pneumatic (0.6 / 6) |
| Clamping torque(N.m / kgf · m) | 304 / 31 |
| Servo motor model(FANUC)(Straight shaft without key) | αiF8 / βis8 |
| Servo motor model(MITSUBISHI) (Straight shaft without key) | HG - 104 / 154 |
| Speed reduction ratio | 1:90 |
| Max. rotation rate of table(min-1) | 44.4 |
| Allowable inertia load capacity (vertical)(kg-m²) | 0.63 |
| Allowable workpiece load (Vertical)(kg) | 75 |
| Allowable workpiece load (with support table)(kg) | 150 |
| Allowable thrust load (with rotary table clamping) F (N / kgf) | 14225 / 1450 |
| (Axial)＊1 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1079 / 110 |
| (Radial)＊2 Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| Driving torque(N.m / kgf·m) | 284 / 29 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions

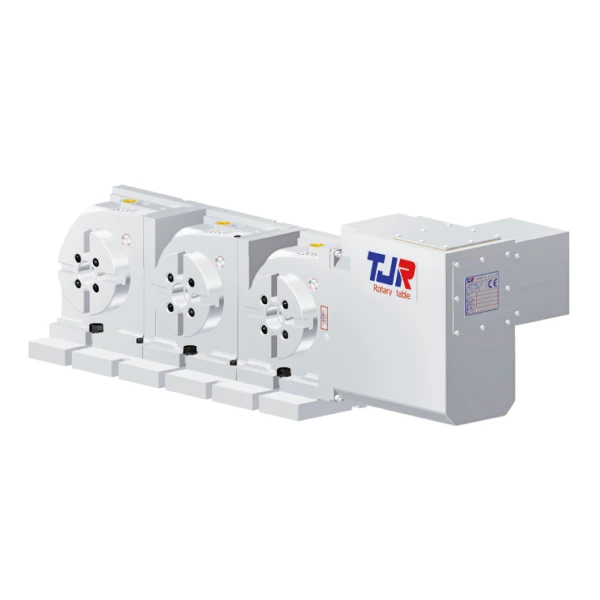

The AR-170-3W is a worm gear rotary table for CNC machines. It is designed for accurate workpiece positioning and 4th-axis machining.
The AR-170-3W has a 170 mm table diameter. It provides a larger working area for CNC machining applications.
Yes. The AR-170-3W is designed for 4th-axis CNC machining. It allows the workpiece to rotate to different positions during machining.
The AR-170-3W uses a worm and worm gear transmission system. It provides controlled and accurate rotary movement.
The allowable workpiece load is 75 kg for vertical use. With a support table, it can handle up to 150 kg.
The AR-170-3W uses pneumatic clamping. The clamping pressure is 0.6 MPa.
The minimum increment is 0.001 degree. The indexing precision is 40 seconds, and the repeatability is 6 seconds.
The maximum table rotation speed is 44.4 rpm. The actual operating speed can vary depending on the motor used.
The AR-170-3W can be used for CNC milling, drilling, and other machining operations that need accurate rotary positioning.
The AR-170-3W offers a 170 mm table, worm gear transmission, pneumatic clamping, and accurate rotary positioning. It is a practical choice for CNC machines that need a 4th-axis rotary table.
Related Products
AR 210
AR 250
AR 255
AR 320
AR 400
AR 500
AR 630
AR 800
Request a Quote
Tell us about your requirements, and we will develop a tailored solution for you
Download Digital Product Catalogue
Download the brochure and see what precision looks like.
Built on Innovation and engineered for Excellence.
We deliver precision indexing and rotary solutions that meet the highest standards of performance, trusted by manufacturers who demand accuracy, reliability, and results at every stage of production.
