- TJR Worm Gear Rotary Table - AR Ø630
TJR Worm Gear Rotary Table - AR Ø630
Smooth seamless transmission with high reduction ratios for precision loads.
HR-630R

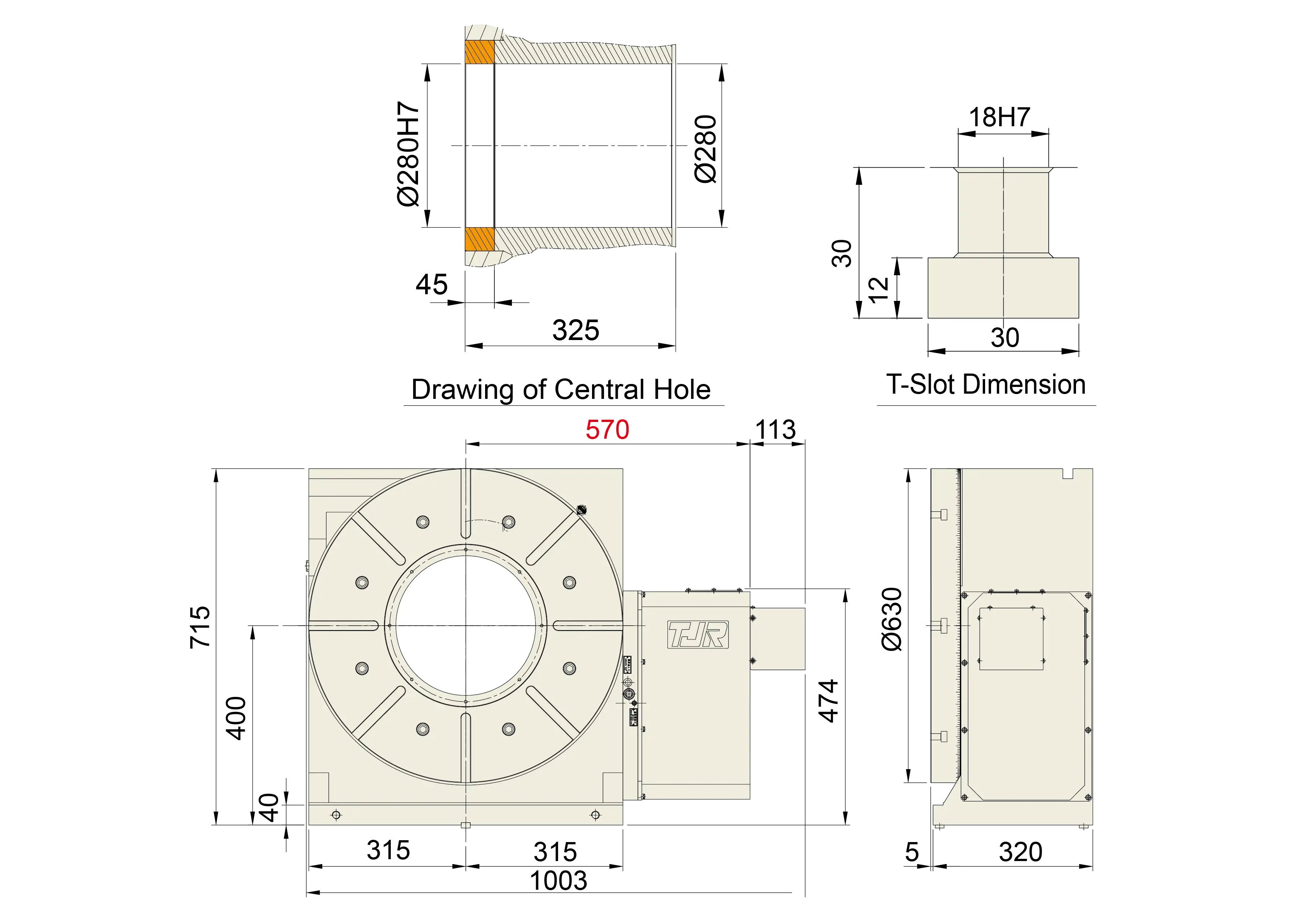

HR-630R Product Specifications
| Item | Data |
|---|---|
| Application | Vertical or Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø630 |
| Inner diameter of mandrel sleeve(mm) | Ø280H7 |
| Diameter of center through hole(mm) | Ø280 |
| Center height (Vertical)(mm) | 400 |
| Table height (Horizontal)(mm) | 325 |
| Table T-slot width(mm) | 18H7 |
| Guide block width(mm) | 18h7 |
| Transmission Mechanisms | Worm and Worm Gear |
Frequently Asked Questions
The HR-630R is a CNC worm gear rotary table used for 4th-axis machining. It helps rotate and position the workpiece during CNC machining.
The HR-630R has a table diameter of 630 mm. It also has a 280 mm center through hole.
Yes. The HR-630R can be installed in both vertical and horizontal positions, depending on the CNC machine and application.
The HR-630R uses a worm and worm gear drive. It provides stable and controlled rotary movement during machining.
The HR-630R has a minimum increment of 0.001°. This allows the workpiece to be positioned accurately.
The maximum rotation speed of the HR-630R is 16.7 rpm.
The HR-630R can handle up to 400 kg in vertical use. With a support table, it can handle up to 800 kg. The horizontal load capacity is also 800 kg.
The HR-630R uses hydraulic clamping at 3.5 MPa. It helps hold the rotary table firmly during machining.
The HR-630R is used for CNC machining applications that need accurate rotary positioning. It is suitable for 4th-axis machining and larger workpieces.
The HR-630R offers a large 630 mm table, accurate positioning, worm gear transmission, hydraulic clamping, and vertical or horizontal installation. It is a practical choice for heavy-duty CNC machining applications.
