TJR Worm Gear Rotary Table - AR Ø250

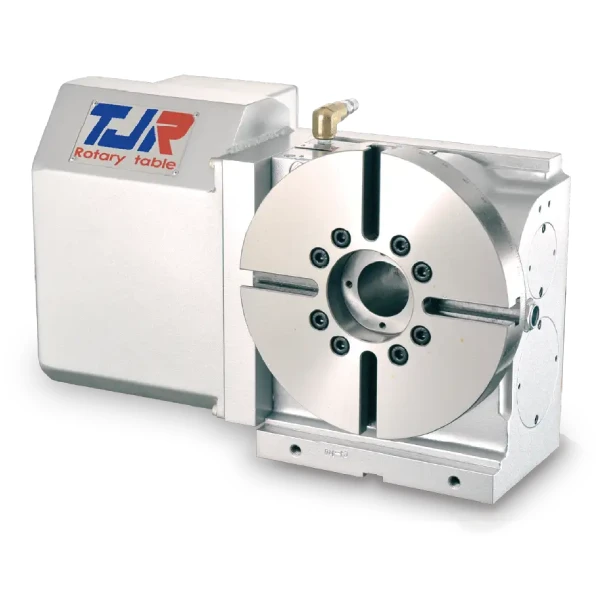

The AR-250L is a worm gear rotary table used with CNC machines. It helps rotate and position the workpiece during machining.

The AR-250L has a 250 mm table diameter and a 40 mm center through hole.

Yes. The AR-250L can be installed and used in both horizontal and vertical positions.

The AR-250L uses a worm and worm gear system for rotary movement and accurate indexing.

The AR-250L has an indexing precision of 20 seconds and a repeatability of 6 seconds. Its minimum increment is 0.001 degree.

The AR-250L can handle up to 75 kg in vertical use. With a support table, it can handle up to 150 kg. In horizontal use, it can also handle up to 150 kg.

The maximum rotation speed of the AR-250L is 44.4 rpm.

The AR-250L uses a pneumatic clamping system with a pressure of 0.6 MPa.

The AR-250L supports FANUC αiF8 / βis8 and Mitsubishi HG-54 / 104 servo motor options.

The AR-250L is used for CNC machining, rotary positioning, indexing, and 4th-axis applications.

The AR-250B is a CNC worm gear rotary table designed for precision indexing and rotary machining.

The AR-250B has a 250 mm table diameter.

Yes, it can be used as a 4th axis CNC rotary table with a compatible CNC machine and servo motor.

It uses a worm and worm gear transmission for accurate rotary movement.

The AR-250B has an indexing precision of 20 seconds and a repeatability of 6 seconds.

The maximum table rotation speed is 44.4 rpm.

It supports up to 75 kg vertically and up to 150 kg with a support table.

The AR-250B uses pneumatic clamping with a pressure of 0.6 MPa.

It supports selected FANUC and Mitsubishi servo motor models.

It is suitable for CNC indexing, rotary positioning, and multi-side machining applications.

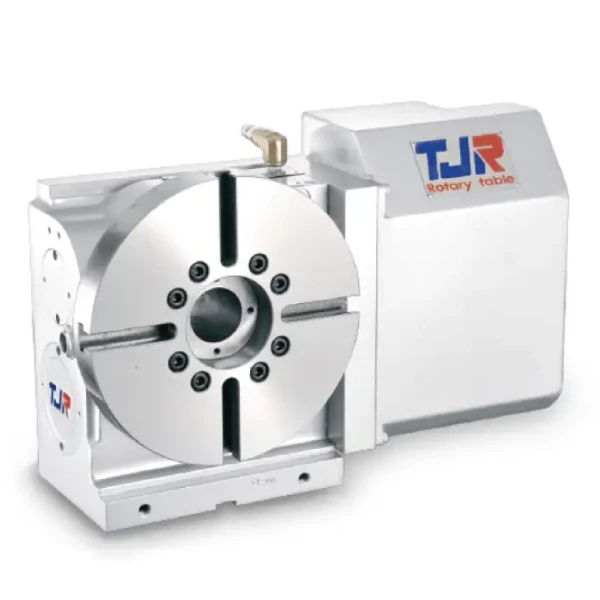

The AR-250RH is a CNC worm gear rotary table designed for 4th-axis machining. It helps rotate the workpiece to different angles during CNC machining.

The AR-250RH is used for CNC milling, drilling, indexing, and other machining work that needs accurate rotary movement.

Yes. The AR-250RH is a 4th-axis CNC rotary table. It allows the workpiece to rotate during machining for easier multi-side processing.

The AR-250RH has a 250 mm rotary table. It provides a larger working area for different CNC machining applications.

The AR-250RH uses a worm gear drive. It provides smooth and stable rotation during CNC machining.

The AR-250RH is designed for accurate indexing and repeat positioning. It helps achieve consistent results in CNC machining operations.

The AR-250RH uses a hydraulic brake system. It helps keep the rotary table securely in position during cutting.

Yes. The AR-250RH can be used in different installation positions based on the CNC machine and machining requirements.

The AR-250RH can be used with compatible CNC machining centers and servo motor systems. The correct configuration depends on the machine and control system.

The AR-250RH combines a 250 mm rotary table, worm gear drive, and hydraulic clamping system. It is a practical choice for 4th-axis CNC machining and applications that need reliable rotary positioning.

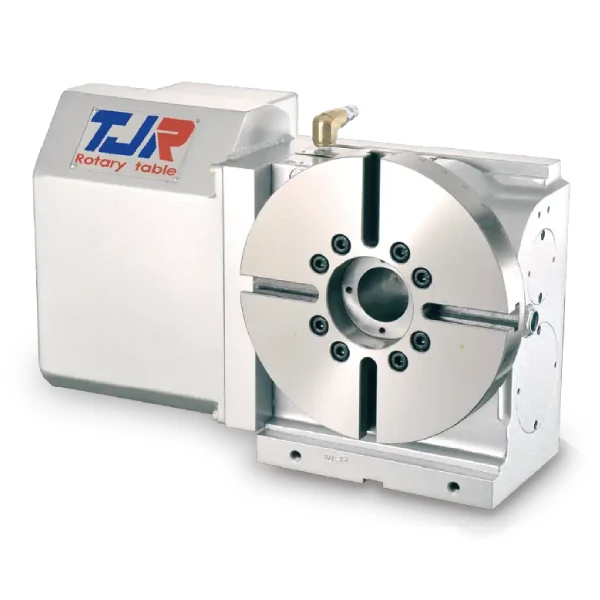

The AR-250LH is a worm gear rotary table made for CNC machines. It helps rotate and position workpieces accurately during machining.

The AR-250LH has a 250 mm diameter table. It is suitable for CNC machining that needs a larger rotary table.

Yes. The AR-250LH can be used as a CNC 4th axis rotary table for machining workpieces from different angles.

Yes. The AR-250LH is designed for both horizontal and vertical CNC machining applications.

The AR-250LH uses a worm and worm gear drive. It has a 1:90 reduction ratio for smooth and controlled rotary movement.

The AR-250LH has an indexing accuracy of 20 seconds and a repeatability of 6 seconds. Its minimum indexing increment is 0.001 degrees.

The AR-250LH uses a hydraulic clamping system. It has a hydraulic pressure of 3.5 MPa and a clamping torque of 540 N·m.

The AR-250LH can handle up to 75 kg in vertical operation. With a support table, it can handle up to 150 kg. The horizontal load capacity is also 150 kg.

The maximum rotation speed of the AR-250LH is 44.4 rpm. The actual operating speed can vary depending on the motor.

The AR-250LH is available with FANUC and Mitsubishi servo motor options. The listed models include FANUC αiF8 / βis8 and Mitsubishi HG-54 / 104.

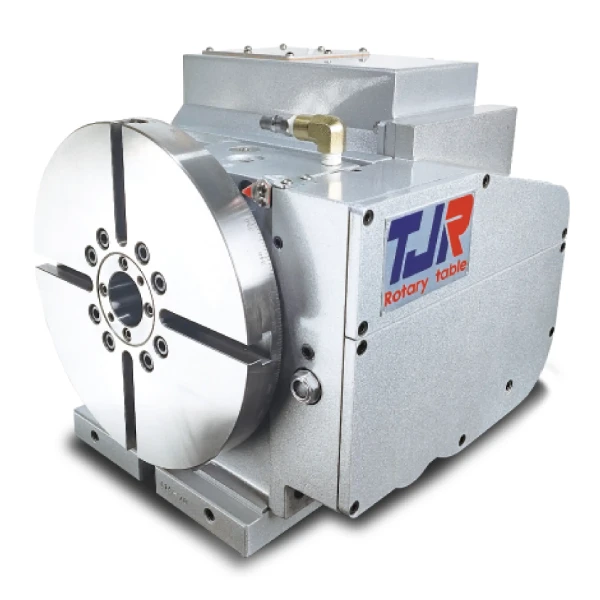

The AR-250BH is a CNC worm gear rotary table used for accurate workpiece rotation and positioning.

The AR-250BH has a table diameter of 250 mm.

Yes. The AR-250BH can be used for 4th axis CNC machining and indexing applications.

The AR-250BH uses hydraulic clamping to hold the workpiece securely during machining.

The AR-250BH has an indexing precision of 20 seconds and a repeatability of 6 seconds.

The AR-250BH can reach a maximum rotation speed of 44.4 rpm.

The AR-250BH can hold up to 75 kg when installed vertically. With a support table, it can hold up to 150 kg.

The AR-250BH uses a worm and worm gear transmission with a 1:90 reduction ratio.

The AR-250BH is compatible with selected FANUC and Mitsubishi servo motors.

The AR-250BH offers accurate indexing, hydraulic clamping, smooth rotation, and a strong worm gear drive. It is designed for reliable CNC machining and workpiece positioning.
