TJR Worm Gear Rotary Table - AR Ø210

The AR-210L is a worm gear rotary table used with CNC machines. It helps rotate and position the workpiece during machining.

The AR-210L has a 210 mm table diameter and a 40 mm center through hole.

Yes. The AR-210L can be installed and used in both horizontal and vertical positions.

The AR-210L uses a worm and worm gear system for rotary movement and accurate indexing.

The AR-210L has an indexing precision of 20 seconds and repeatability of 6 seconds. Its minimum increment is 0.001 degree.

The AR-210L can handle up to 75 kg in vertical use. With a support table, it can handle up to 150 kg. In horizontal use, it can also handle up to 150 kg.

The maximum rotation speed of the AR-210L is 44.4 rpm.

The AR-210L uses a pneumatic clamping system with a pressure of 0.6 MPa.

The AR-210L supports FANUC αiF8 / βis8 and Mitsubishi HG-54 / 104 servo motor options.

The AR-210L is used for CNC machining, rotary positioning, indexing, and 4th-axis applications.

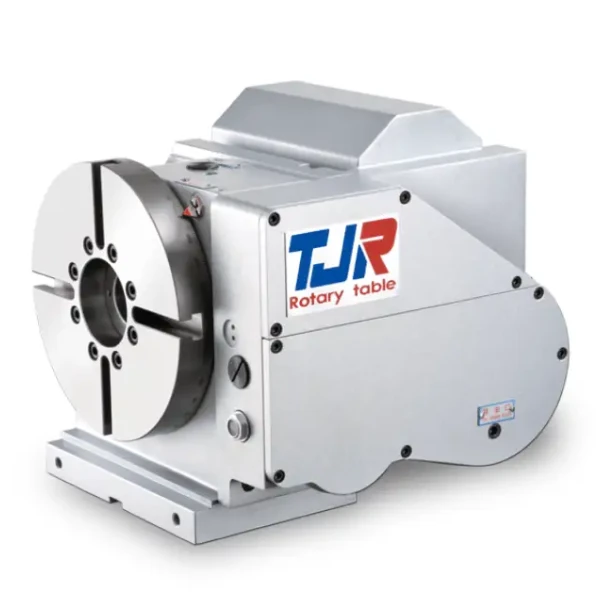

The AR-210B is a CNC worm gear rotary table for precision indexing and rotary machining.

The AR-210B has a 210 mm table diameter.

Yes, it can be used as a 4th axis CNC rotary table with a compatible CNC machine and servo motor.

It uses a worm gear transmission for smooth and accurate rotary movement.

The AR-210B has an indexing precision of 20 seconds and repeatability of 6 seconds.

The maximum table rotation speed is 44.4 rpm.

It supports up to 75 kg vertically and up to 150 kg with a support table.

The AR-210B uses pneumatic clamping with a pressure of 0.6 MPa.

It supports selected FANUC and Mitsubishi servo motor models.

It is suitable for CNC indexing, rotary positioning, and multi-side machining applications.

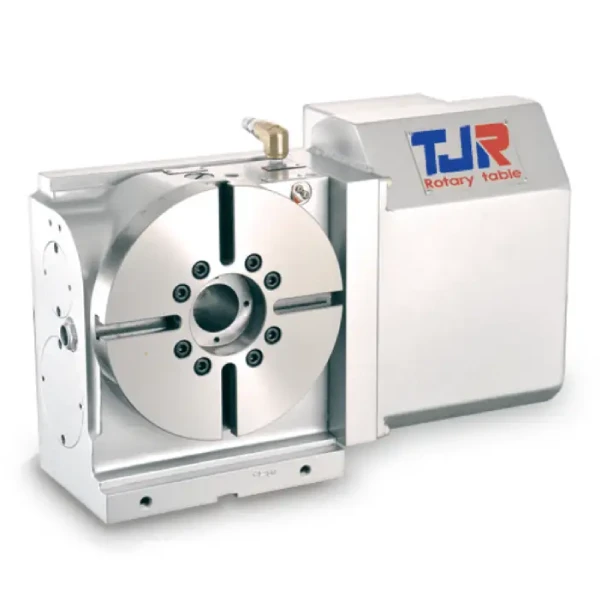

The AR-210RH is a CNC worm gear rotary table made for 4th-axis machining. It helps rotate the workpiece to different angles during CNC machining.

The AR-210RH is used for CNC milling, drilling, indexing, and other machining work that needs accurate rotary movement.

Yes. The AR-210RH is designed for 4th-axis CNC machining. It allows the workpiece to rotate during the machining process.

The AR-210RH has a 210 mm rotary table. Its size makes it suitable for CNC machining applications that need a larger working area.

The AR-210RH uses a worm gear drive. It provides smooth and stable rotary movement during machining.

The AR-210RH is designed for accurate indexing and repeat positioning. This makes it suitable for CNC machining that needs precise rotary movement.

The AR-210RH uses a hydraulic brake system. The brake helps hold the rotary table firmly while the machine is cutting.

Yes. The AR-210RH can be installed in different positions, including vertical and horizontal setups, depending on the CNC machine and application.

The AR-210RH can be configured with compatible CNC servo motors. The motor option depends on the CNC machine and control system.

The AR-210RH offers a strong worm gear drive, hydraulic clamping, and accurate rotary movement. It is a practical choice for 4th-axis CNC machining applications.

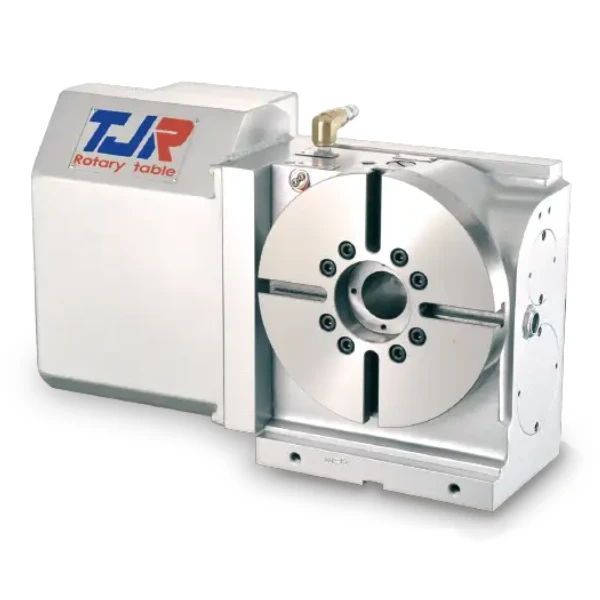

The AR-210LH is a worm gear rotary table made for CNC machines. It helps rotate and position workpieces accurately during machining.

The AR-210LH has a 210 mm diameter table. It is designed for CNC machining applications that need a larger rotary table.

Yes. The AR-210LH can be used as a CNC 4th axis rotary table for machining workpieces from different angles.

Yes. The AR-210LH can be used in both horizontal and vertical CNC machining applications.

The AR-210LH uses a worm and worm gear drive. It has a 1:90 reduction ratio for controlled rotary movement.

The AR-210LH has an indexing accuracy of 20 seconds and a repeatability of 6 seconds. It also has a minimum indexing increment of 0.001 degrees.

The AR-210LH uses a hydraulic clamping system. The hydraulic pressure is 3.5 MPa (35 kg/cm²), with a clamping torque of 540 N·m.

The AR-210LH can handle up to 75 kg in vertical operation. With a support table, it can handle up to 150 kg. The horizontal load capacity is also 150 kg.

The maximum rotation speed of the AR-210LH is 44.4 rpm. The actual speed can depend on the servo motor and machining conditions.

The AR-210LH supports FANUC and Mitsubishi servo motor options. The listed models are FANUC αiF8 / βis8 and Mitsubishi HG-54 / 104.

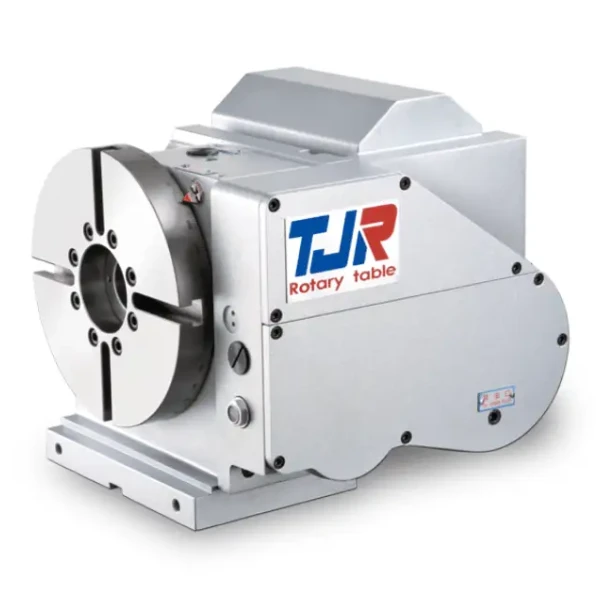

The AR-210BH is a CNC worm gear rotary table designed for accurate workpiece rotation in CNC machining.

The AR-210BH has a 210 mm table diameter, making it suitable for a range of CNC machining applications.

Yes. The AR-210BH can be used as a 4th axis rotary table for CNC machining and indexing applications.

The AR-210BH uses a hydraulic clamping system to hold the workpiece securely during machining.

The AR-210BH has 20-second indexing precision and 6-second repeatability for accurate positioning.

The AR-210BH can reach a maximum rotation speed of 44.4 rpm.

The AR-210BH can hold up to 75 kg when installed vertically. With a support table, it can hold up to 150 kg.

The AR-210BH uses a worm and worm gear system with a 1:90 speed reduction ratio.

The AR-210BH is compatible with selected FANUC and Mitsubishi servo motors, including FANUC αiF8 and βis8 and Mitsubishi HG-54 / HG-104 models.

The AR-210BH offers accurate indexing, hydraulic clamping, smooth rotation, and a strong worm gear drive. It is a good choice for CNC machines that need reliable rotary positioning.

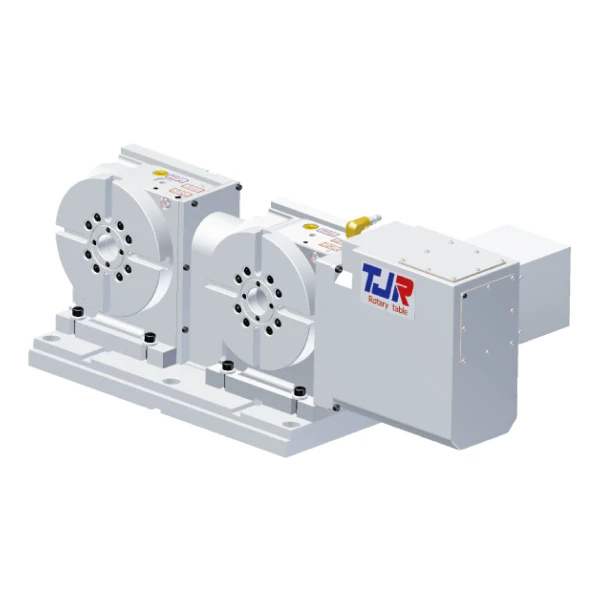

The AR-210-2W is a worm gear rotary table for CNC machines. It is designed for accurate workpiece positioning and 4th-axis machining.

The AR-210-2W has a 210 mm table diameter. It is suitable for CNC machining applications that need a larger work area.

Yes. The AR-210-2W can be used as a 4th-axis CNC rotary table. It allows the workpiece to rotate to different positions during machining.

The AR-210-2W uses a worm and worm gear transmission system. This helps provide smooth and controlled rotary movement.

The AR-210-2W can handle up to 75 kg when used vertically. With a support table, the allowable workpiece load can reach 150 kg.

The AR-210-2W uses a pneumatic clamping system. The clamping pressure is 0.6 MPa, or 6 kg/cm².

The AR-210-2W has a minimum increment of 0.001 degree. Its indexing precision is 40 seconds, with a repeatability of 6 seconds.

The maximum table rotation speed is 44.4 rpm. The actual operating speed can vary depending on the motor and machining conditions.

The AR-210-2W can be used for CNC milling, drilling, and other machining jobs that require accurate rotary positioning and multi-side machining.

The AR-210-2W offers a 210 mm table, worm gear transmission, pneumatic clamping, and accurate rotary positioning. It is a practical choice for CNC machines that need a reliable 4th-axis rotary table.

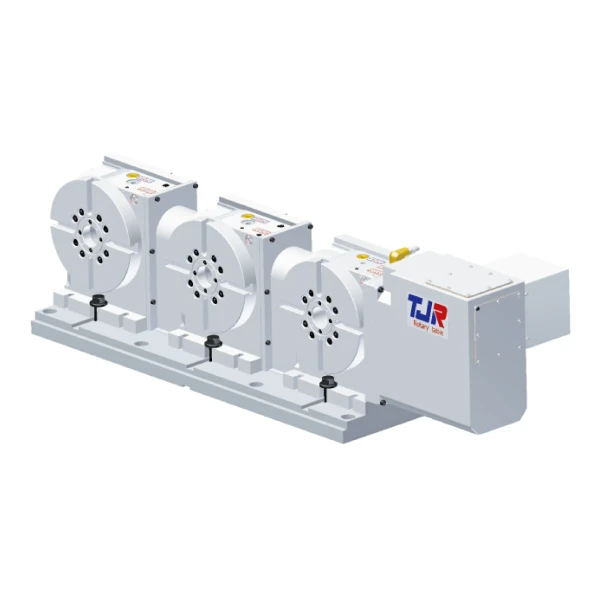

The AR-210-3W is a worm gear rotary table for CNC machines. It is designed for accurate workpiece positioning and 4th-axis machining.

The AR-210-3W has a 210 mm table diameter. It provides a good working area for different CNC machining applications.

Yes. The AR-210-3W can be used for 4th-axis CNC machining. It allows the workpiece to rotate to different positions during machining.

The AR-210-3W uses a worm and worm gear transmission system. This helps provide controlled and accurate rotary movement.

The allowable workpiece load is 75 kg for vertical use. With a support table, it can handle up to 150 kg.

The AR-210-3W uses pneumatic clamping. The clamping pressure is 0.6 MPa, or 6 kg/cm².

The minimum increment is 0.001 degree. The indexing precision is 40 seconds, and the repeatability is 6 seconds.

The maximum table rotation speed is 44.4 rpm. The actual operating speed can vary depending on the motor.

The AR-210-3W can be used for CNC milling, drilling, and other machining operations that require accurate rotary positioning.

The AR-210-3W offers a 210 mm table, worm gear transmission, pneumatic clamping, and accurate rotary positioning. It is a practical choice for CNC machines that need a 4th-axis rotary table.
