TJR Worm Gear Dual Arm Tilting Rotary Table - FAR Ø170
Balanced dual-arm design delivering stable torque across extended reach applications.
FAR-170A
FAR-170A Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø 40 |
| Table height (Horizontal)(mm) | 245 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | 360° |
| Axis / Tilt | (-100°~+100°) |
| Transmission Mechanisms | Hybrid |
| Rotary Axis Transmission Mechanism | Worm and Worm Gear |
| Tilt Axis Transmission Mechanism | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Rotation Axis Indexing precision(sec.) | 20 |
| Rotation Axis Repeatability(sec.) | 6 |
| Tilt Axis Indexing precision(sec.) | 60 |
| Tilt Axis Repeatability(sec.) | 8 |
| Rotation Axis Clamping system(kg/cm²) | Pneumatic (0.6 / 6) |
| Tilt Axis Clamping system(kg/cm²) | Pneumatic (0.6 / 6) |
| Rotation Axis Clamping torque(kgf · m) | 245 / 25 |
| Tilt Axis Clamping torque(kgf · m) | 304 / 31 |
| Rotation Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiS4 / βis4 |
| Rotation Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 75 / 105 |
| Tilt Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF4 / βis8 |
| Tilt Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 54 / 104 |
| Rotation Axis Speed reduction ratio | 1:72 |
| Tilt Axis Speed reduction ratio | 1:90 (Straight Shaft) / 1:120 (Taper Shaft) |
| Rotation Max. rotation rate of table(min-1) | 33.3 |
| Tilt Max. rotation rate of table(min-1) | 25 |
| Allowable inertia load capacity (Horizontal)(kg-m²) | 0.22 |
| Rotation Allowable workpiece load (0˚Horizontal)(kg) | 60 |
| Rotation Allowable workpiece load (0˚~90˚Tilt)(kg) | 40 |
| Rotation Allowable thrust load (with rotary table clamping) F (N / kgf) | 5886 / 600 |
| (Axial)＊1 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| (Radial)＊2 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 245 / 25 |
| Driving torque(N.m / kgf·m) | 177 / 18 |
| Net weight ( sever motor excluded)(kg) | 126 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions
The TJR FAR-170A has a table diameter of 170 mm (Ø170). Its compact dual-arm design provides a rigid workholding platform while allowing the rotary table to be integrated into CNC machining centers for 4th- and 5th-axis machining.
The FAR-170A uses a worm and worm gear transmission mechanism on both the rotary and tilt axes. TJR's worm-and-gear design uses a full tooth-depth configuration and is designed to provide good load resistance, reliable operation, and adjustable backlash after wear.
The rotary axis provides a full 360° rotation, while the tilting axis has a range of -100° to +100°. This wide tilting range allows the FAR-170A to reach multiple workpiece surfaces and machining angles for complex multi-axis operations.
The FAR-170A has a rotary-axis indexing accuracy of 20 arc-seconds with 6 arc-seconds repeatability. The tilt axis provides 60 arc-seconds of indexing accuracy and 8 arc-seconds of repeatability. Its minimum incremental angle is 0.001°, supporting precise positioning during CNC machining.
The FAR-170A uses pneumatic clamping on both the rotary and tilt axes at 0.6 MPa (6 kg/cm²). The rotary axis provides a clamping torque of 245 kgf·m, while the tilt axis provides 304 kgf·m, helping keep the table securely positioned during machining.
The FAR-170A can support a maximum workpiece load of 60 kg when the rotary axis is horizontal at 0°. When the rotary axis is tilted from 0° to 90°, the allowable workpiece load is 40 kg. Its allowable horizontal inertia load capacity is 0.22 kg·m².
The rotary axis has a 1:72 speed reduction ratio and a maximum table rotation rate of 33.3 rpm. The tilt axis uses a 1:90 reduction ratio with a straight shaft or 1:120 with a taper shaft, and has a maximum table rotation rate of 25 rpm. The actual operating speed can vary depending on the selected motor.
The FAR-170A can be configured with major CNC servo motor systems including FANUC, Mitsubishi, Yaskawa, Siemens, Heidenhain, and Syntec. TJR's published specifications list FANUC αiS4 / βiS4 motors for the rotary axis and αiF4 / βiS8 motors for the tilt axis. Mitsubishi options include HG-75 / HG-105 for the rotary axis and HG-54 / HG-104 for the tilt axis.
The FAR-170A has a Ø40 mm center through hole and a mandrel sleeve with an inner diameter of Ø40H7. The table also features a 12H7 T-slot and an 18h7 guide-block width for accurate installation and workholding.
Yes. The FAR-170A is a dual-arm tilting rotary table designed for both vertical and horizontal installation. Its 360° rotary axis and -100° to +100° tilting axis provide two-axis movement, allowing a standard 3-axis machining center to perform 4th- and 5th-axis machining, multi-sided machining, and complex-angle operations.

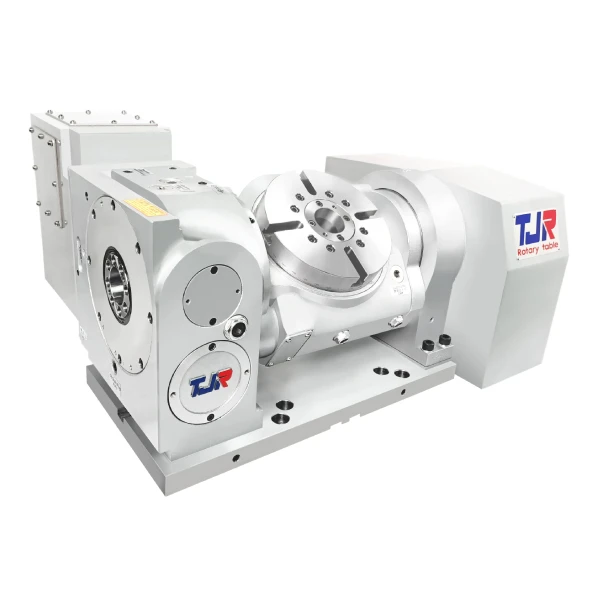

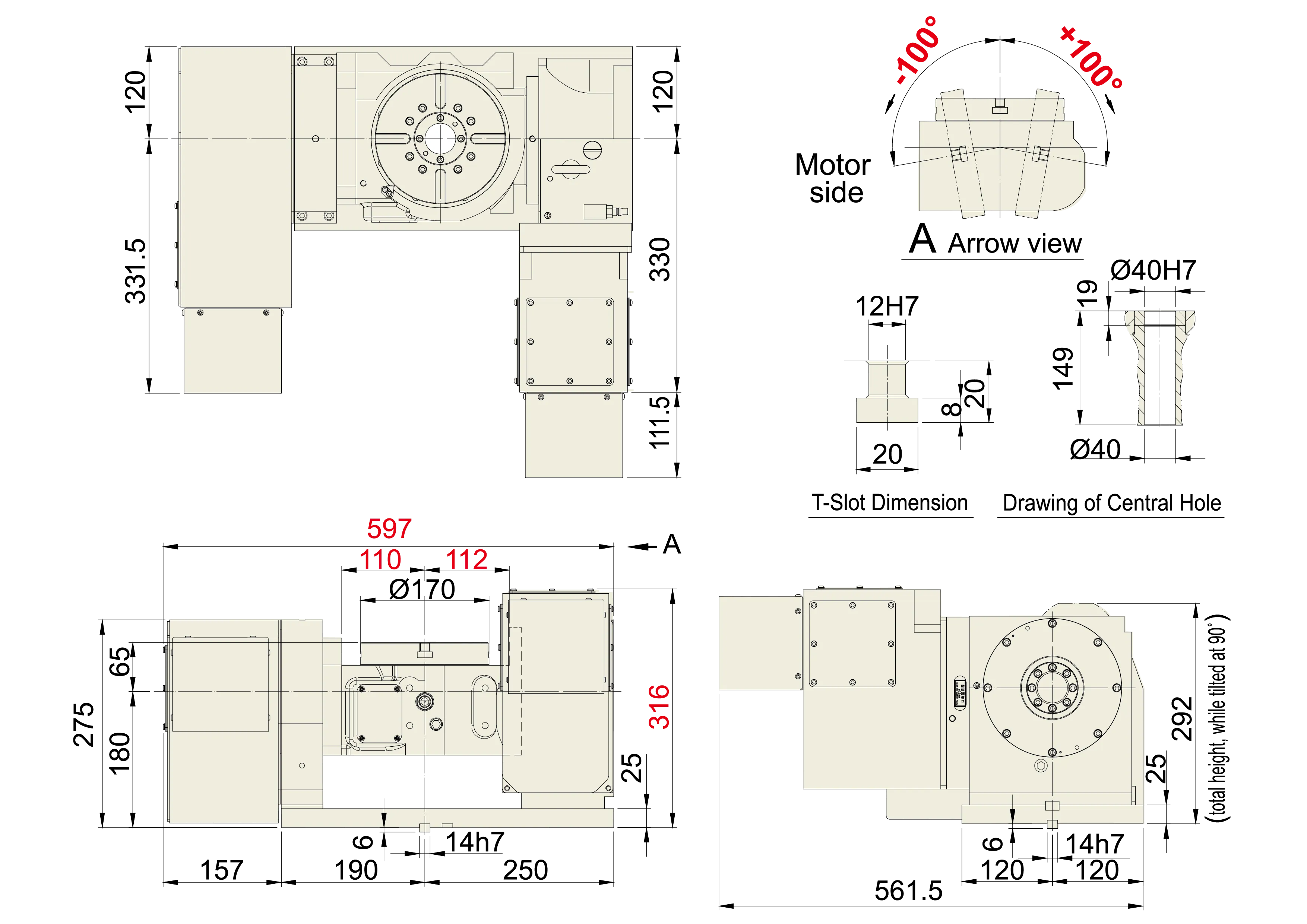

FAR-170AH Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø 40 |
| Table height (Horizontal)(mm) | 245 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | 360° |
| Axis / Tilt | (-100°~+100°) |
| Transmission Mechanisms | Hybrid |
| Rotary Axis Transmission Mechanism | Worm and Worm Gear |
| Tilt Axis Transmission Mechanism | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Rotation Axis Indexing precision(sec.) | 20 |
| Rotation Axis Repeatability(sec.) | 6 |
| Tilt Axis Indexing precision(sec.) | 60 |
| Tilt Axis Repeatability(sec.) | 8 |
| Rotation Axis Clamping system(kg/cm²) | Pneumatic (0.6 / 6) |
| Tilt Axis Clamping system(kg/cm²) | Hydraulic (3.5 / 35) |
| Rotation Axis Clamping torque(kgf · m) | 245 / 25 |
| Tilt Axis Clamping torque(kgf · m) | 540 / 55 |
| Rotation Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiS4 / βis4 |
| Rotation Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 75 / 105 |
| Tilt Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF4 / βis8 |
| Tilt Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 54 / 104 |
| Rotation Axis Speed reduction ratio | 1:72 |
| Tilt Axis Speed reduction ratio | 1:90 (Straight Shaft) / 1:120 (Taper Shaft) |
| Rotation Max. rotation rate of table(min-1) | 33.3 |
| Tilt Max. rotation rate of table(min-1) | 25 |
| Allowable inertia load capacity (Horizontal)(kg-m²) | 0.22 |
| Rotation Allowable workpiece load (0˚Horizontal)(kg) | 60 |
| Rotation Allowable workpiece load (0˚~90˚Tilt)(kg) | 40 |
| Rotation Allowable thrust load (with rotary table clamping) F (N / kgf) | 5886 / 600 |
| (Axial)＊1 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 540 / 55 |
| (Radial)＊2 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 245 / 25 |
| Driving torque(N.m / kgf·m) | 177 / 18 |
| Net weight ( sever motor excluded)(kg) | 126 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions
The TJR FAR-170AH has a table diameter of 170 mm (Ø170). Its compact dual-arm design provides a rigid workholding platform while allowing the rotary table to be integrated into CNC machining centers for 4th- and 5th-axis machining.
The FAR-170AH uses a hybrid transmission system with worm and worm gear mechanisms on both the rotary and tilt axes. This design provides controlled movement, high load resistance, and reliable operation for demanding multi-axis CNC machining applications.
The rotary axis provides a full 360° rotation, while the tilting axis has a range of -100° to +100°. This wide tilting range allows the FAR-170AH to access multiple workpiece surfaces and complex machining angles for 5-axis machining.
The FAR-170AH has a rotary-axis indexing accuracy of 20 arc-seconds with 6 arc-seconds repeatability. The tilt axis provides 60 arc-seconds of indexing accuracy and 8 arc-seconds of repeatability. Its minimum incremental angle is 0.001°, supporting precise positioning during CNC machining.
The FAR-170AH uses pneumatic clamping on the rotary axis at 0.6 MPa (6 kg/cm²) and hydraulic clamping on the tilt axis at 3.5 MPa (35 kg/cm²). The rotary axis provides a clamping torque of 245 kgf·m, while the tilt axis provides 540 kgf·m, helping secure the table during machining operations.
The FAR-170AH can support a maximum workpiece load of 60 kg when the rotary axis is horizontal at 0°. When the rotary axis is tilted from 0° to 90°, the allowable workpiece load is 40 kg. Its allowable horizontal inertia load capacity is 0.22 kg·m².
The rotary axis has a 1:72 speed reduction ratio and a maximum table rotation rate of 33.3 rpm. The tilt axis uses a 1:90 reduction ratio with a straight shaft or 1:120 with a taper shaft, with a maximum table rotation rate of 25 rpm.
The FAR-170AH can be configured with major CNC servo motor systems including FANUC, Mitsubishi, Yaskawa, Siemens, Heidenhain, and Syntec. TJR's published specifications list FANUC αiS4 / βiS4 motors for the rotary axis and αiF4 / βiS8 motors for the tilt axis. Mitsubishi options include HG-75 / HG-105 for the rotary axis and HG-54 / HG-104 for the tilt axis.
The FAR-170AH has a Ø40 mm center through hole and a mandrel sleeve with an inner diameter of Ø40H7. The table also features a 12H7 T-slot and an 18h7 guide-block width for accurate installation and workholding.
Yes. The FAR-170AH is a dual-arm tilting rotary table designed for both vertical and horizontal installation. Its 360° rotary axis and -100° to +100° tilting axis provide two-axis movement, making it suitable for 4th- and 5th-axis CNC machining, multi-sided machining, and complex-angle operations.

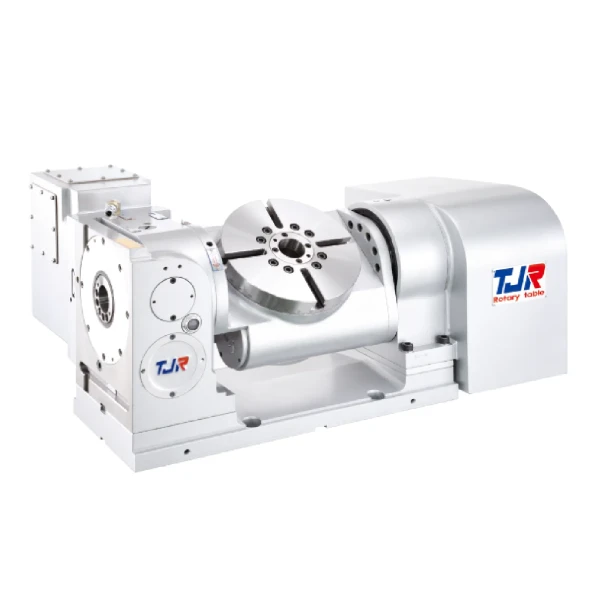

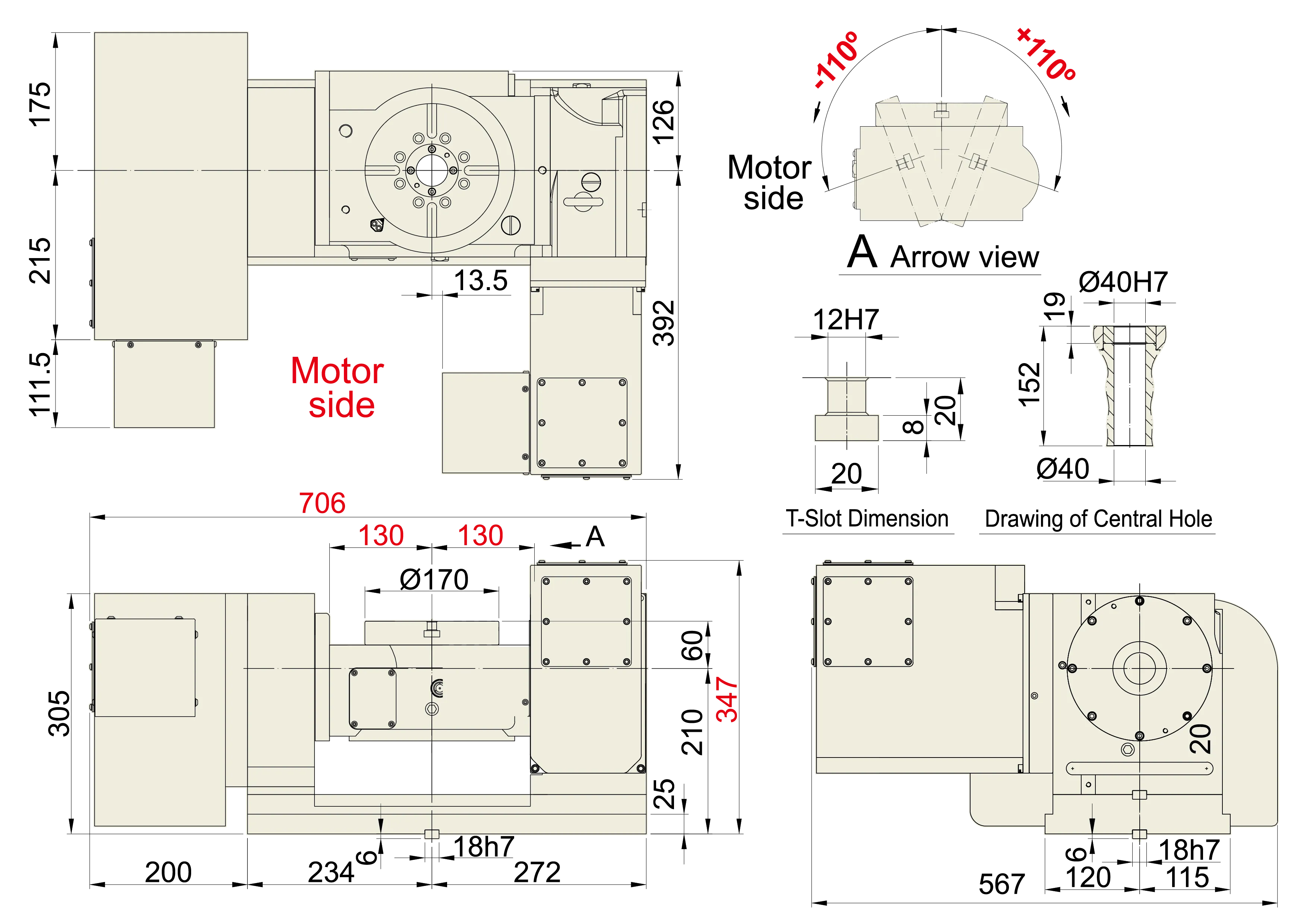

FAR-170 Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø 40 |
| Table height (Horizontal)(mm) | 270 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | 360° |
| Axis / Tilt | (-100°~+100°) |
| Transmission Mechanisms | Hybrid |
| Rotary Axis Transmission Mechanism | Worm and Worm Gear |
| Tilt Axis Transmission Mechanism | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Rotation Axis Indexing precision(sec.) | 20 |
| Rotation Axis Repeatability(sec.) | 6 |
| Tilt Axis Indexing precision(sec.) | 60 |
| Tilt Axis Repeatability(sec.) | 8 |
| Rotation Axis Clamping system(kg/cm²) | Pneumatic (0.6 / 6) |
| Tilt Axis Clamping system(kg/cm²) | Pneumatic (0.6 / 6) |
| Rotation Axis Clamping torque(kgf · m) | 304 / 31 |
| Tilt Axis Clamping torque(kgf · m) | 304 / 31 |
| Rotation Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF4 / βis8 |
| Rotation Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 54 / 104 |
| Tilt Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF8 / αiS12 / βis12 |
| Tilt Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 104 |
| Rotation Axis Speed reduction ratio | 1:90 |
| Tilt Axis Speed reduction ratio | 1:90 |
| Rotation Max. rotation rate of table(min-1) | 33.3 |
| Tilt Max. rotation rate of table(min-1) | 25 |
| Rotation Allowable workpiece load (0˚Horizontal)(kg) | 75 |
| Rotation Allowable workpiece load (0˚~90˚Tilt)(kg) | 50 |
| Rotation Allowable thrust load (with rotary table clamping) F (N / kgf) | 7358 / 750 |
| (Axial)＊1 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| (Radial)＊2 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| Driving torque(N.m / kgf·m) | 284 / 29 |
| Net weight ( sever motor excluded)(kg) | 153 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions
The TJR FAR-170 has a table diameter of 170 mm (Ø170). Its dual-arm construction provides a rigid workholding platform while allowing it to be integrated into CNC machining centers for 4th- and 5th-axis machining applications.
The FAR-170 uses a worm and worm gear transmission mechanism on both the rotary and tilt axes. TJR's worm-and-gear design uses a full tooth-depth configuration and is designed for strong load resistance, reliable operation, and backlash adjustment after wear.
The rotary axis provides a full 360° rotation, while the tilting axis has a range of -100° to +100°. This wide tilting range allows the FAR-170 to access multiple workpiece surfaces and complex machining angles for 5-axis CNC machining.
The FAR-170 has a rotary-axis indexing accuracy of 20 arc-seconds with 6 arc-seconds repeatability. The tilt axis provides 60 arc-seconds of indexing accuracy and 8 arc-seconds of repeatability. Its minimum incremental angle is 0.001°, supporting precise positioning during CNC machining.
The FAR-170 uses pneumatic clamping on both the rotary and tilt axes at 0.6 MPa (6 kg/cm²). Both the rotary and tilt axes provide a clamping torque of 304 kgf·m (31 kgf·m), helping secure the table during machining operations.
The FAR-170 can support a maximum workpiece load of 75 kg when the rotary axis is horizontal at 0°. When the rotary axis is tilted from 0° to 90°, the allowable workpiece load is 50 kg. The table also has an allowable thrust load of 7,358 N (750 kgf) with the rotary table clamped.
The rotary axis has a 1:90 speed reduction ratio and a maximum table rotation rate of 33.3 rpm. The tilt axis also uses a 1:90 reduction ratio and has a maximum table rotation rate of 25 rpm. These ratios provide controlled rotary and tilting movement for multi-axis machining.
The FAR-170 can be configured with major CNC servo motor systems including FANUC, Mitsubishi, Yaskawa, Siemens, Heidenhain, and Syntec. TJR's published specifications list FANUC αiF4 / βiS8 motors for the rotary axis and αiF8 / αiS12 / βiS12 motors for the tilt axis. Mitsubishi options include HG-54 / HG-104 for the rotary axis and HG-104 for the tilt axis.
The FAR-170 has a Ø40 mm center through hole and a mandrel sleeve with an inner diameter of Ø40H7. The table also features a 12H7 T-slot and an 18h7 guide-block width for accurate installation and workholding.
Yes. The FAR-170 is a dual-arm tilting rotary table designed for both vertical and horizontal installation. Its 360° rotary axis and -100° to +100° tilting axis provide two-axis movement, making it suitable for 4th- and 5th-axis CNC machining, multi-sided machining, and complex-angle operations.

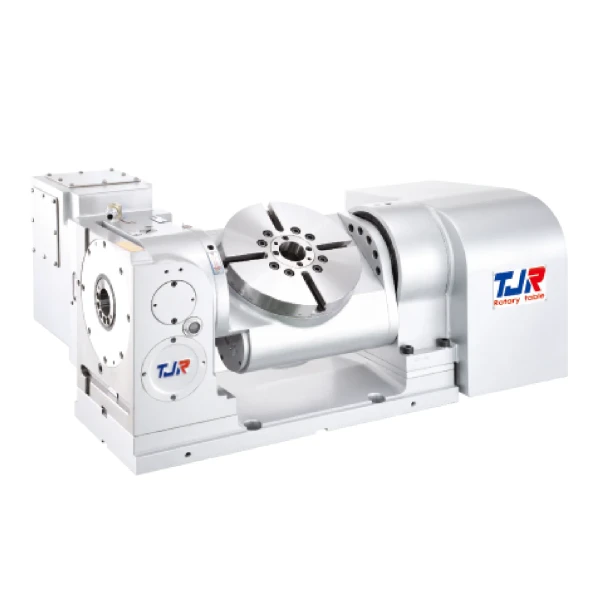

FAR-170H Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø 40 |
| Table height (Horizontal)(mm) | 270 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | 360° |
| Axis / Tilt | (-100°~+100°) |
| Transmission Mechanisms | Hybrid |
| Rotary Axis Transmission Mechanism | Worm and Worm Gear |
| Tilt Axis Transmission Mechanism | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Rotation Axis Indexing precision(sec.) | 20 |
| Rotation Axis Repeatability(sec.) | 6 |
| Tilt Axis Indexing precision(sec.) | 60 |
| Tilt Axis Repeatability(sec.) | 8 |
| Rotation Axis Clamping system(kg/cm²) | Pneumatic (0.6 / 6) |
| Tilt Axis Clamping system(kg/cm²) | Pneumatic (0.6 / 6) |
| Rotation Axis Clamping torque(kgf · m) | 304 / 31 |
| Tilt Axis Clamping torque(kgf · m) | 304 / 31 |
| Rotation Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF4 / βis8 |
| Rotation Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 54 / 104 |
| Tilt Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF8 / αiS12 / βis12 |
| Tilt Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 104 |
| Rotation Axis Speed reduction ratio | 1:90 |
| Tilt Axis Speed reduction ratio | 1:90 |
| Rotation Max. rotation rate of table(min-1) | 33.3 |
| Tilt Max. rotation rate of table(min-1) | 25 |
| Rotation Allowable workpiece load (0˚Horizontal)(kg) | 75 |
| Rotation Allowable workpiece load (0˚~90˚Tilt)(kg) | 50 |
| Rotation Allowable thrust load (with rotary table clamping) F (N / kgf) | 7358 / 750 |
| (Axial)＊1 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| (Radial)＊2 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| Driving torque(N.m / kgf·m) | 284 / 29 |
| Net weight ( sever motor excluded)(kg) | 153 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions
The TJR FAR-170H has a table diameter of 170 mm (Ø170). Its dual-arm construction provides a rigid workholding platform while allowing it to be integrated into CNC machining centers for 4th- and 5th-axis machining applications.
The FAR-170H uses a hybrid transmission system with worm and worm gear mechanisms on both the rotary and tilt axes. The worm-and-gear design provides strong load resistance, reliable operation, and precise rotary and tilting movement for multi-axis machining. TJR's worm-and-gear technology also allows backlash to be adjusted after wear.
The rotary axis provides a full 360° rotation, while the tilting axis has a range of -100° to +100°. This wide tilting range allows the FAR-170H to access multiple workpiece surfaces and complex machining angles for 5-axis CNC machining.
The FAR-170H has a rotary-axis indexing accuracy of 20 arc-seconds with 6 arc-seconds repeatability. The tilt axis provides 60 arc-seconds of indexing accuracy and 8 arc-seconds of repeatability. Its minimum incremental angle is 0.001°, supporting precise positioning during CNC machining.
The FAR-170H uses pneumatic clamping on both the rotary and tilt axes at 0.6 MPa (6 kg/cm²). Both axes provide a clamping torque of 304 kgf·m (31 kgf·m), helping keep the table securely positioned during machining operations.
The FAR-170H can support a maximum workpiece load of 75 kg when the rotary axis is horizontal at 0°. When the rotary axis is tilted from 0° to 90°, the allowable workpiece load is 50 kg. The table also has an allowable thrust load of 7,358 N (750 kgf) with the rotary table clamped.
The rotary axis has a 1:90 speed reduction ratio and a maximum table rotation rate of 33.3 rpm. The tilt axis also uses a 1:90 reduction ratio and has a maximum table rotation rate of 25 rpm. These ratios provide controlled rotary and tilting movement for multi-axis CNC machining.
The FAR-170H can be configured with major CNC servo motor systems including FANUC, Mitsubishi, Yaskawa, Siemens, Heidenhain, and Syntec. TJR's published specifications list FANUC αiF4 / βiS8 motors for the rotary axis and αiF8 / αiS12 / βiS12 motors for the tilt axis. Mitsubishi options include HG-54 / HG-104 for the rotary axis and HG-104 for the tilt axis.
The FAR-170H has a Ø40 mm center through hole and a mandrel sleeve with an inner diameter of Ø40H7. The table also features a 12H7 T-slot and an 18h7 guide-block width for accurate installation and workholding.
Yes. The FAR-170H is a dual-arm tilting rotary table designed for both vertical and horizontal installation. Its 360° rotary axis and -100° to +100° tilting axis provide two-axis movement, making it suitable for 4th- and 5th-axis CNC machining, multi-sided machining, and complex-angle operations. TJR's 5th-axis rotary table range is specifically designed to add rotary and tilting movement to machining centers for multi-axis machining.
FAR-170B Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø 40 |
| Table height (Horizontal)(mm) | 270 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | 360° |
| Axis / Tilt | (-100°~+100°) |
| Transmission Mechanisms | Hybrid |
| Rotary Axis Transmission Mechanism | Worm and Worm Gear |
| Tilt Axis Transmission Mechanism | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Rotation Axis Indexing precision(sec.) | 20 |
| Rotation Axis Repeatability(sec.) | 6 |
| Tilt Axis Indexing precision(sec.) | 60 |
| Tilt Axis Repeatability(sec.) | 8 |
| Rotation Axis Clamping system(kg/cm²) | Pneumatic (0.6 / 6) |
| Tilt Axis Clamping system(kg/cm²) | Pneumatic (0.6 / 6) |
| Rotation Axis Clamping torque(kgf · m) | 304 / 31 |
| Tilt Axis Clamping torque(kgf · m) | 304 / 31 |
| Rotation Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF4 / βis8 |
| Rotation Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 54 / 104 |
| Tilt Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF8 / αiS12 / βis12 |
| Tilt Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 104 |
| Rotation Axis Speed reduction ratio | 1:90 |
| Tilt Axis Speed reduction ratio | 1:90 |
| Rotation Max. rotation rate of table(min-1) | 33.3 |
| Tilt Max. rotation rate of table(min-1) | 25 |
| Rotation Allowable workpiece load (0˚Horizontal)(kg) | 75 |
| Rotation Allowable workpiece load (0˚~90˚Tilt)(kg) | 50 |
| Rotation Allowable thrust load (with rotary table clamping) F (N / kgf) | 7358 / 750 |
| (Axial)＊1 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| (Radial)＊2 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| Driving torque(N.m / kgf·m) | 284 / 29 |
| Net weight ( sever motor excluded)(kg) | 153 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions
The TJR FAR-170B has a table diameter of 170 mm (Ø170). Its dual-arm construction provides a rigid workholding platform while keeping the rotary table compact enough for integration with a wide range of CNC machining centers.
The FAR-170B uses a worm and worm gear transmission mechanism on both the rotary and tilt axes. This transmission design provides reliable rotary and tilting movement, strong load resistance, and precise positioning for 4th- and 5th-axis CNC machining.
The rotary axis provides a full 360° rotation, while the tilting axis has a range of -100° to +100°. This wide tilting range allows the FAR-170B to access multiple workpiece surfaces and complex machining angles for 5-axis applications.
The FAR-170B has a rotary-axis indexing accuracy of 20 arc-seconds with 6 arc-seconds repeatability. The tilt axis provides 60 arc-seconds of indexing accuracy and 8 arc-seconds of repeatability. Its minimum incremental angle is 0.001°, supporting precise positioning during multi-axis machining.
The FAR-170B uses pneumatic clamping on both the rotary and tilt axes at 0.6 MPa (6 kg/cm²). Both axes provide a clamping torque of 304 kgf·m (31 kgf·m), helping hold the table securely during machining operations.
The FAR-170B can support a maximum workpiece load of 75 kg when the rotary axis is horizontal at 0°. When the rotary axis is tilted between 0° and 90°, the allowable workpiece load is 50 kg. The allowable thrust load with the rotary table clamped is 7,358 N (750 kgf).
The rotary axis has a 1:90 speed reduction ratio and a maximum table rotation rate of 33.3 rpm. The tilt axis also uses a 1:90 reduction ratio and has a maximum table rotation rate of 25 rpm. These ratios provide controlled rotary and tilting movement for multi-axis machining.
The FAR-170B can be configured with major CNC servo motor systems including FANUC, Mitsubishi, Yaskawa, Siemens, Heidenhain, and Syntec. TJR's published specifications list FANUC αiF4 / βiS8 motors for the rotary axis and αiF8 / αiS12 / βiS12 motors for the tilt axis. Mitsubishi options include HG-54 / HG-104 for the rotary axis and HG-104 for the tilt axis.
The FAR-170B has a Ø40 mm center through hole and a mandrel sleeve with an inner diameter of Ø40H7. The table also features a 12H7 T-slot and an 18h7 guide-block width for accurate installation and workholding.
Yes. The FAR-170B is a dual-arm tilting rotary table designed for both vertical and horizontal installation. Its 360° rotary axis and -100° to +100° tilting axis provide two-axis movement, making it suitable for 4th- and 5th-axis CNC machining, multi-sided machining, and complex-angle operations.

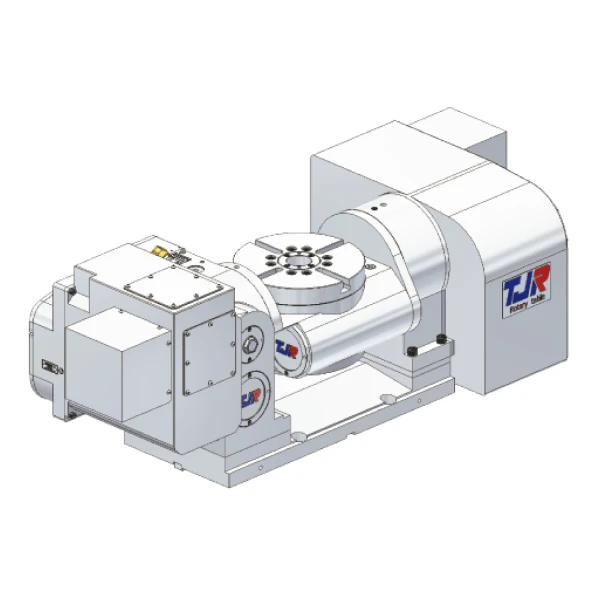

FAR-170BH Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø170 |
| Inner diameter of mandrel sleeve(mm) | Ø40H7 |
| Diameter of center through hole(mm) | Ø 40 |
| Table height (Horizontal)(mm) | 270 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | 360° |
| Axis / Tilt | (-100°~+100°) |
| Transmission Mechanisms | Hybrid |
| Rotary Axis Transmission Mechanism | Worm and Worm Gear |
| Tilt Axis Transmission Mechanism | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Rotation Axis Indexing precision(sec.) | 20 |
| Rotation Axis Repeatability(sec.) | 6 |
| Tilt Axis Indexing precision(sec.) | 60 |
| Tilt Axis Repeatability(sec.) | 8 |
| Rotation Axis Clamping system(kg/cm²) | Pneumatic (0.6 / 6) |
| Tilt Axis Clamping system(kg/cm²) | Pneumatic (0.6 / 6) |
| Rotation Axis Clamping torque(kgf · m) | 304 / 31 |
| Tilt Axis Clamping torque(kgf · m) | 304 / 31 |
| Rotation Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF4 / βis8 |
| Rotation Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 54 / 104 |
| Tilt Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF8 / αiS12 / βis12 |
| Tilt Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 104 |
| Rotation Axis Speed reduction ratio | 1:90 |
| Tilt Axis Speed reduction ratio | 1:90 |
| Rotation Max. rotation rate of table(min-1) | 33.3 |
| Tilt Max. rotation rate of table(min-1) | 25 |
| Rotation Allowable workpiece load (0˚Horizontal)(kg) | 75 |
| Rotation Allowable workpiece load (0˚~90˚Tilt)(kg) | 50 |
| Rotation Allowable thrust load (with rotary table clamping) F (N / kgf) | 7358 / 750 |
| (Axial)＊1 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| (Radial)＊2 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 304 / 31 |
| Driving torque(N.m / kgf·m) | 284 / 29 |
| Net weight ( sever motor excluded)(kg) | 153 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
Frequently Asked Questions
The TJR FAR-170BH has a table diameter of 170 mm (Ø170). Its dual-arm construction provides a rigid workholding platform while maintaining a compact design for integration with CNC machining centers.
The FAR-170BH uses a hybrid transmission configuration with worm and worm gear mechanisms on both the rotary and tilt axes. This design provides reliable movement, strong load resistance, and precise positioning for 4th- and 5th-axis CNC machining.
The rotary axis provides a full 360° rotation, while the tilting axis has a range of -100° to +100°. This wide tilting range allows the FAR-170BH to access multiple workpiece surfaces and complex machining angles for 5-axis CNC applications.
The FAR-170BH has a rotary-axis indexing accuracy of 20 arc-seconds with 6 arc-seconds repeatability. The tilt axis provides 60 arc-seconds of indexing accuracy and 8 arc-seconds of repeatability. Its minimum incremental angle is 0.001°, supporting precise positioning during multi-axis machining.
The FAR-170BH uses pneumatic clamping on both the rotary and tilt axes at 0.6 MPa (6 kg/cm²). Both axes provide a clamping torque of 304 kgf·m (31 kgf·m), helping secure the table during machining operations.
The FAR-170BH can support a maximum workpiece load of 75 kg when the rotary axis is positioned horizontally at 0°. When the rotary axis is tilted between 0° and 90°, the allowable workpiece load is 50 kg. The allowable thrust load with the rotary table clamped is 7,358 N (750 kgf).
The rotary axis has a 1:90 speed reduction ratio and a maximum table rotation rate of 33.3 rpm. The tilt axis also uses a 1:90 reduction ratio and has a maximum table rotation rate of 25 rpm. These ratios provide controlled rotary and tilting movement for multi-axis machining.
The FAR-170BH can be configured with major CNC servo motor systems including FANUC, Mitsubishi, Yaskawa, Siemens, Heidenhain, and Syntec. TJR's published specifications list FANUC αiF4 / βiS8 motors for the rotary axis and αiF8 / αiS12 / βiS12 motors for the tilt axis. Mitsubishi options include HG-54 / HG-104 for the rotary axis and HG-104 for the tilt axis.
The FAR-170BH has a Ø40 mm center through hole and a mandrel sleeve with an inner diameter of Ø40H7. The table also features a 12H7 T-slot and an 18h7 guide-block width for accurate installation and workholding.
Yes. The FAR-170BH is a dual-arm tilting rotary table designed for both vertical and horizontal installation. Its 360° rotary axis and -100° to +100° tilting axis provide two-axis movement, making it suitable for 4th- and 5th-axis CNC machining, multi-sided machining, and complex-angle operations.
Related Products
FAR 210
FHR 255
FHR 400
FHR 500
FHR 650
Request a Quote
Tell us about your requirements, and we will develop a tailored solution for you
Download Digital Product Catalogue
Download the brochure and see what precision looks like.
Built on Innovation and engineered for Excellence.
We deliver precision indexing and rotary solutions that meet the highest standards of performance, trusted by manufacturers who demand accuracy, reliability, and results at every stage of production.
