TJR Worm Gear Dual Arm Tilting Rotary Table - FHR Ø255
Balanced dual-arm design delivering stable torque across extended reach applications.
FHR-255C
FHR-255C Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø255 |
| Inner diameter of mandrel sleeve(mm) | Ø80H7 |
| Diameter of center through hole(mm) | Ø 80 |
| Table height (Horizontal)(mm) | 290 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | 360° |
| Axis / Tilt | (-110°~+110°) |
| Rotary Axis Transmission Mechanism | Worm and Worm Gear |
| Tilt Axis Transmission Mechanism | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Rotation Axis Indexing precision(sec.) | 15 |
| Rotation Axis Repeatability(sec.) | 6 |
| Tilt Axis Indexing precision(sec.) | 60 |
| Tilt Axis Repeatability(sec.) | 8 |
| Rotation Axis Clamping system(kg/cm²) | Hydraulic (3.5 / 35) |
| Tilt Axis Clamping system(kg/cm²) | Hydraulic (3.5 / 35) |
| Rotation Axis Clamping torque(kgf · m) | 687 / 70 |
| Tilt Axis Clamping torque(kgf · m) | 1373 / 140 |
| Rotation Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF8 / αiS12 / βis12 |
| Rotation Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 104 |
| Tilt Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF8 / αiS12 / βis12 |
| Tilt Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 154 |
| Rotation Axis Speed reduction ratio | 1:120 |
| Tilt Axis Speed reduction ratio | 1:120 |
| Rotation Max. rotation rate of table(min-1) | 25 |
| Tilt Max. rotation rate of table(min-1) | 16.6 |
| Allowable inertia load capacity (Horizontal)(kg-m²) | 0.8 |
| Rotation Allowable workpiece load (0˚Horizontal)(kg) | 100 |
| Rotation Allowable workpiece load (0˚~90˚Tilt)(kg) | 75 |
| Rotation Allowable thrust load (with rotary table clamping) F (N / kgf) | 14715 / 1500 |
| (Axial)＊1 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1373 / 140 |
| (Radial)＊2 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 687 / 70 |
| Driving torque(N.m / kgf·m) | 540 / 55 |
| Net weight ( sever motor excluded)(kg) | 296 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |

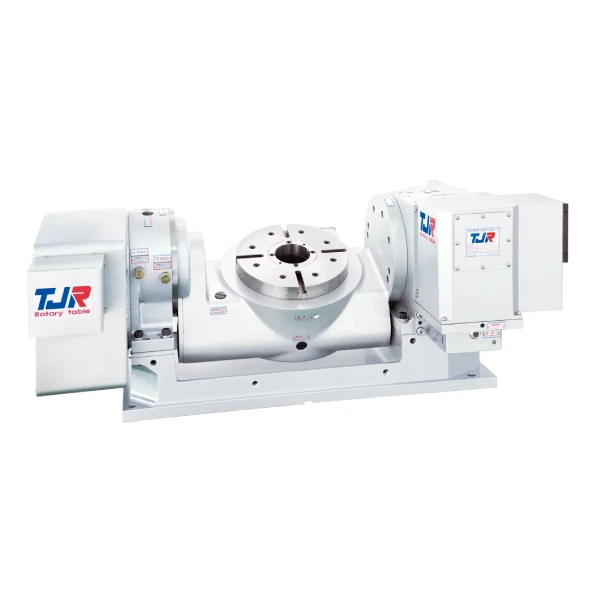

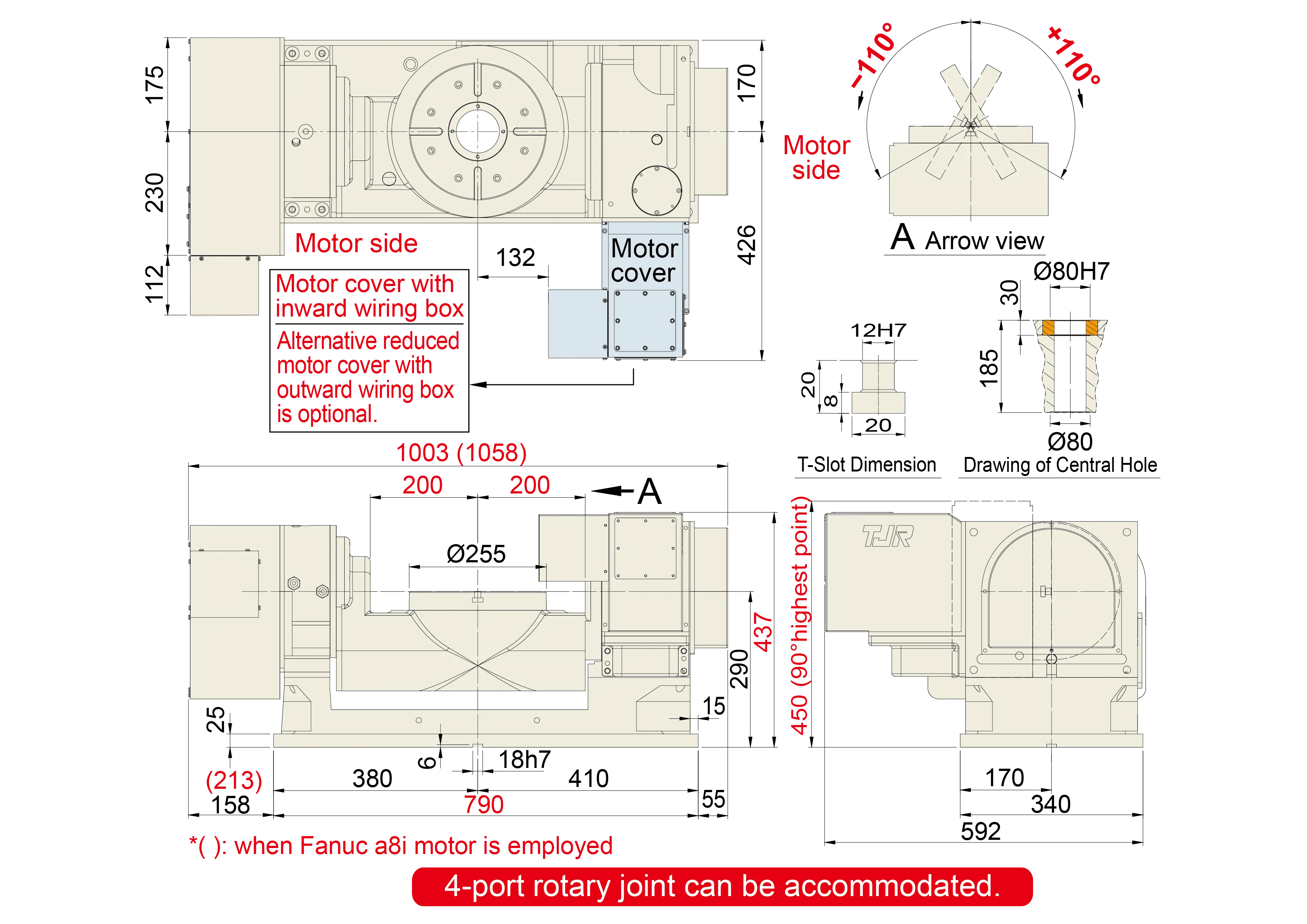

FHR-255CL Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø255 |
| Inner diameter of mandrel sleeve(mm) | Ø80H7 |
| Diameter of center through hole(mm) | Ø 80 |
| Table height (Horizontal)(mm) | 290 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | 360° |
| Axis / Tilt | (-110°~+110°) |
| Rotary Axis Transmission Mechanism | Worm and Worm Gear |
| Tilt Axis Transmission Mechanism | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Rotation Axis Indexing precision(sec.) | 15 |
| Rotation Axis Repeatability(sec.) | 6 |
| Tilt Axis Indexing precision(sec.) | 60 |
| Tilt Axis Repeatability(sec.) | 8 |
| Rotation Axis Clamping system(kg/cm²) | Hydraulic (3.5 / 35) |
| Tilt Axis Clamping system(kg/cm²) | Hydraulic (3.5 / 35) |
| Rotation Axis Clamping torque(kgf · m) | 687 / 70 |
| Tilt Axis Clamping torque(kgf · m) | 1373 / 140 |
| Rotation Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF8 / αiS12 / βis12 |
| Rotation Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 104 |
| Tilt Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF8 / αiS12 / βis12 |
| Tilt Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 154 |
| Rotation Axis Speed reduction ratio | 1:120 |
| Tilt Axis Speed reduction ratio | 1:120 |
| Rotation Max. rotation rate of table(min-1) | 25 |
| Tilt Max. rotation rate of table(min-1) | 16.6 |
| Allowable inertia load capacity (Horizontal)(kg-m²) | 0.8 |
| Rotation Allowable workpiece load (0˚Horizontal)(kg) | 100 |
| Rotation Allowable workpiece load (0˚~90˚Tilt)(kg) | 75 |
| Rotation Allowable thrust load (with rotary table clamping) F (N / kgf) | 14715 / 1500 |
| (Axial)＊1 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1373 / 140 |
| (Radial)＊2 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 687 / 70 |
| Driving torque(N.m / kgf·m) | 540 / 55 |
| Net weight ( sever motor excluded)(kg) | 312 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |

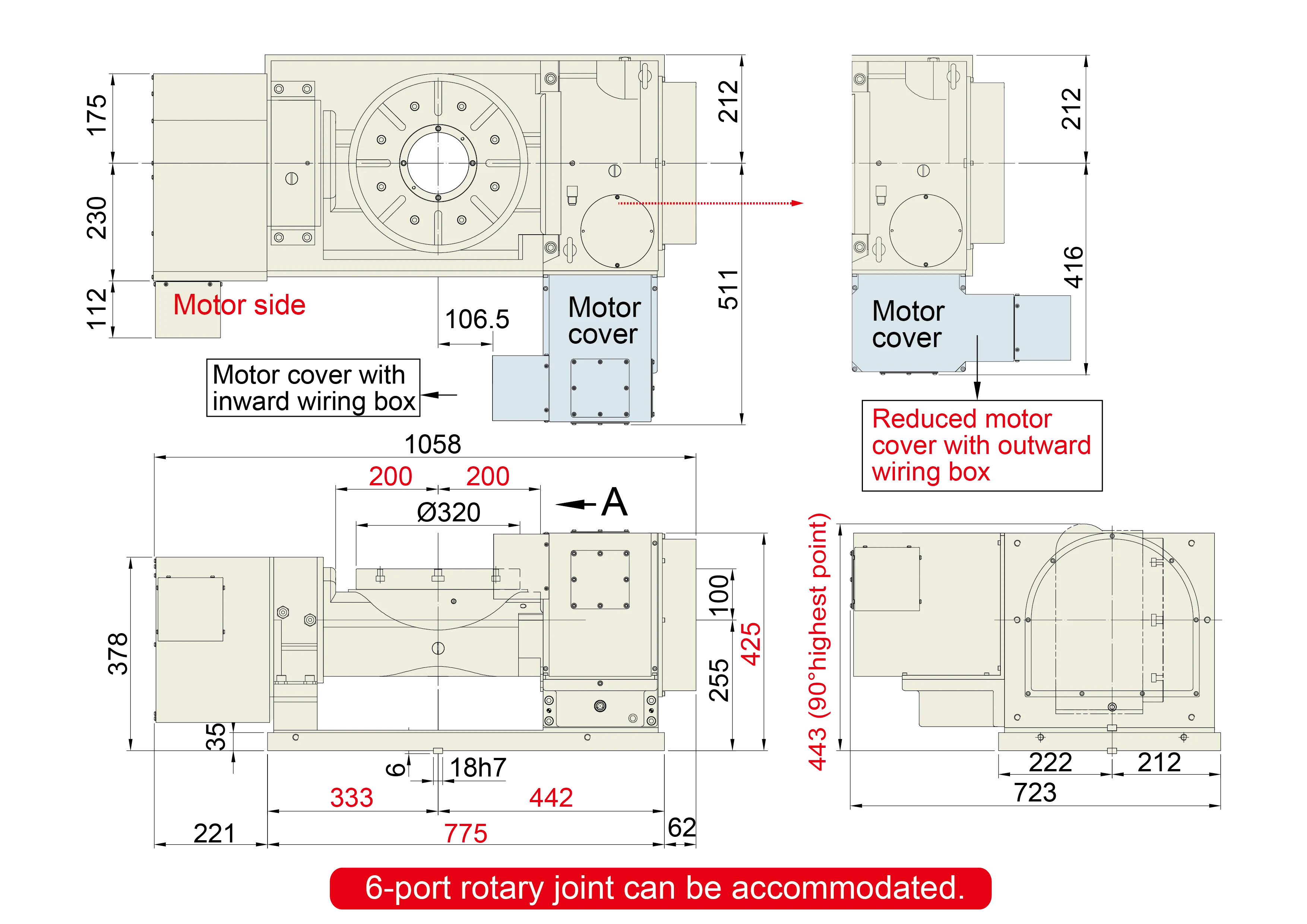

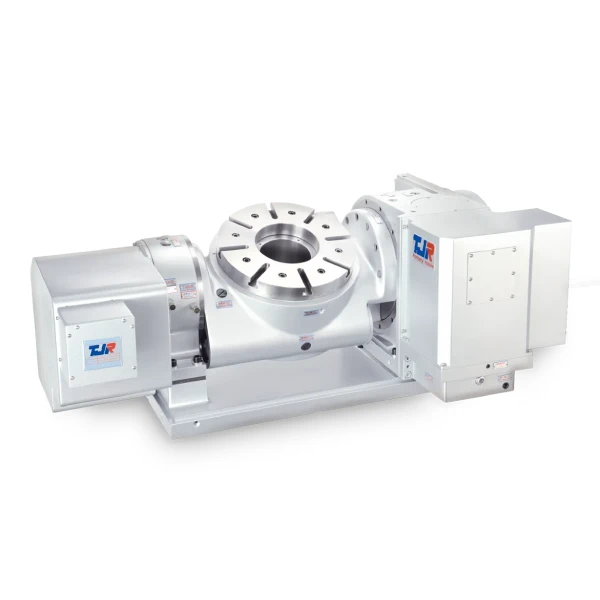

FHR-320 Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø320 |
| Inner diameter of mandrel sleeve(mm) | Ø120H7 |
| Diameter of center through hole(mm) | Ø120 |
| Table height (Horizontal)(mm) | 355 |
| Table T-slot width(mm) | 14H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | 360° |
| Axis / Tilt | (-110°~+110°) |
| Rotary Axis Transmission Mechanism | Worm and Worm Gear |
| Tilt Axis Transmission Mechanism | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Rotation Axis Indexing precision(sec.) | 15 |
| Rotation Axis Repeatability(sec.) | 6 |
| Tilt Axis Indexing precision(sec.) | 50 |
| Tilt Axis Repeatability(sec.) | 8 |
| Rotation Axis Clamping system(kg/cm²) | Hydraulic (3.5 / 35) |
| Tilt Axis Clamping system(kg/cm²) | Hydraulic (3.5 / 35) |
| Rotation Axis Clamping torque(kgf · m) | 1128 / 115 |
| Tilt Axis Clamping torque(kgf · m) | 1717 / 175 |
| Rotation Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF8 / αiS12 / βis12 |
| Rotation Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 104 |
| Tilt Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF12 / βis22 |
| Tilt Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 204 |
| Rotation Axis Speed reduction ratio | 1:120 |
| Tilt Axis Speed reduction ratio | 1:120 |
| Rotation Max. rotation rate of table(min-1) | 25 |
| Tilt Max. rotation rate of table(min-1) | 16.6 |
| Allowable inertia load capacity (Horizontal)(kg-m²) | 2.6 |
| Rotation Allowable workpiece load (0˚Horizontal)(kg) | 200 |
| Rotation Allowable workpiece load (0˚~90˚Tilt)(kg) | 150 |
| Rotation Allowable thrust load (with rotary table clamping) F (N / kgf) | 17658 / 1800 |
| (Axial)＊1 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1717 / 175 |
| (Radial)＊2 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1128 / 115 |
| Driving torque(N.m / kgf·m) | 785 / 80 |
| Net weight ( sever motor excluded)(kg) | 470 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |

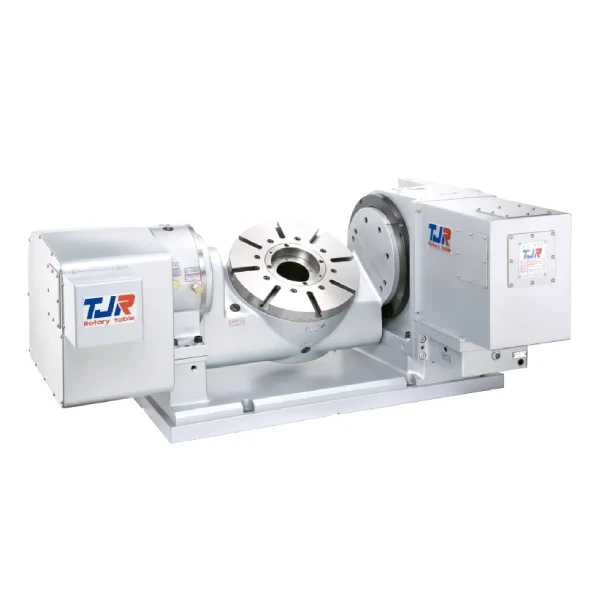

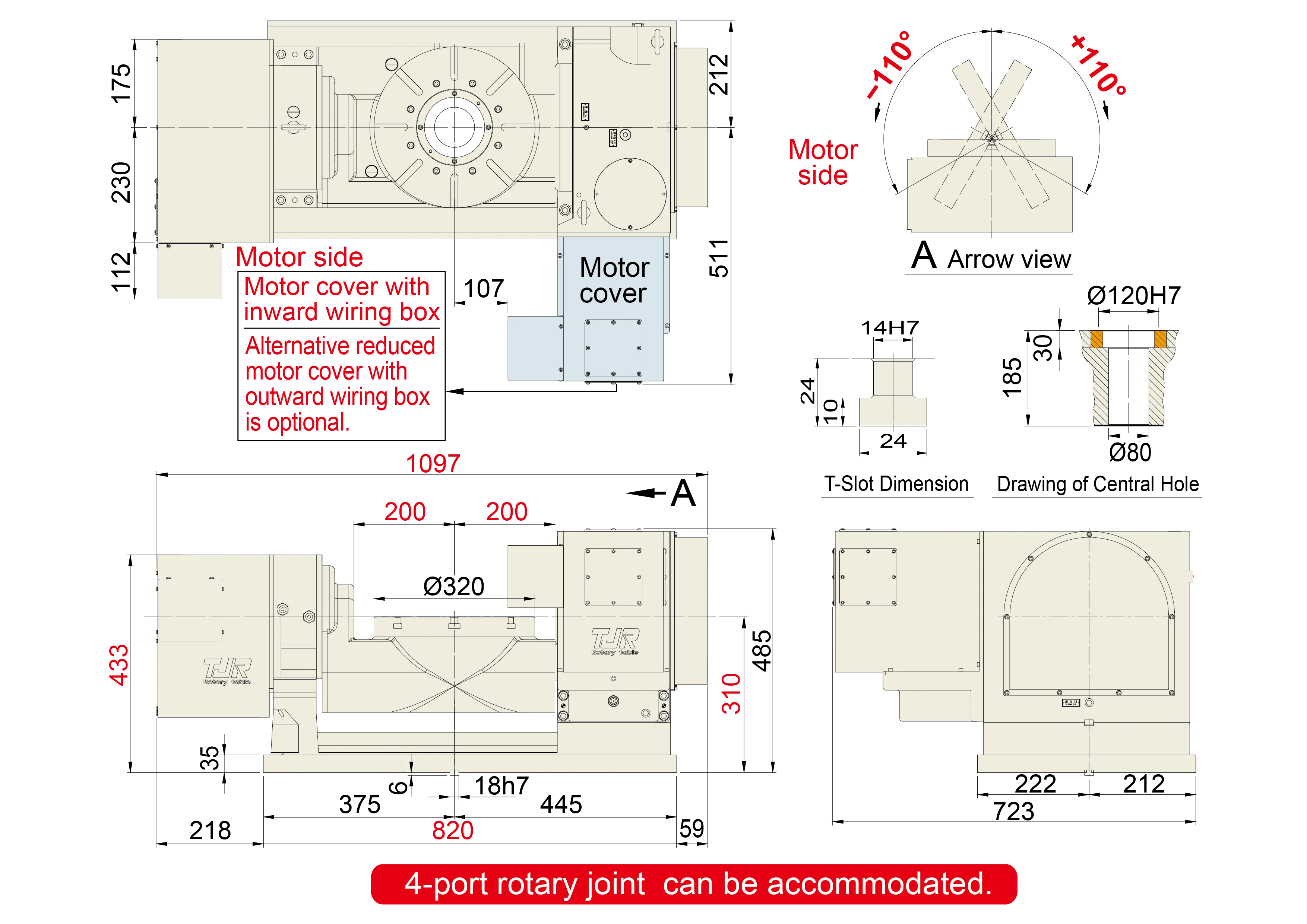

FHR-320C Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø320 |
| Inner diameter of mandrel sleeve(mm) | Ø120H7*30deep |
| Diameter of center through hole(mm) | Ø80 |
| Table height (Horizontal)(mm) | 310 |
| Table T-slot width(mm) | 14H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | Rotation |
| Axis / Tilt | (-110°~+110°) |
| Transmission Mechanisms | Worm and Worm Gear |
| Rotary Axis Transmission Mechanism | Worm and Worm Gear |
| Tilt Axis Transmission Mechanism | Worm and Worm Gear |
| Min. increment(deg.) | 0.001 |
| Rotation Axis Indexing precision(sec.) | 15 |
| Rotation Axis Repeatability(sec.) | 6 |
| Tilt Axis Indexing precision(sec.) | 60 |
| Tilt Axis Repeatability(sec.) | 8 |
| Rotation Axis Clamping system(kg/cm²) | Hydraulic (3.5 / 35) |
| Tilt Axis Clamping system(kg/cm²) | Hydraulic (3.5 / 35) |
| Rotation Axis Clamping torque(kgf · m) | 687 / 70 |
| Tilt Axis Clamping torque(kgf · m) | 1717 / 175 |
| Rotation Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF8 / αiS12 / βis12 |
| Rotation Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 104 |
| Tilt Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF12 / βis22 |
| Tilt Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 204 |
| Rotation Axis Speed reduction ratio | 1:120 |
| Tilt Axis Speed reduction ratio | 1:120 |
| Rotation Max. rotation rate of table(min-1) | 15 |
| Tilt Max. rotation rate of table(min-1) | 16.6 |
| Allowable inertia load capacity (Horizontal)(kg-m²) | 2.6 |
| Rotation Allowable workpiece load (0˚Horizontal)(kg) | 200 |
| Rotation Allowable workpiece load (0˚~90˚Tilt)(kg) | 100 |
| Rotation Allowable thrust load (with rotary table clamping) F (N / kgf) | 17658 / 1800 |
| (Axial)＊1 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 1717 / 175 |
| (Radial)＊2 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 687 / 70 |
| Driving torque(N.m / kgf·m) | 540 / 55 |
| Net weight (sever motor excluded)(kg) | 489 |
| ＊1 | If a mechanical brake is not used, this value will correspond to the motor's holding torque. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |

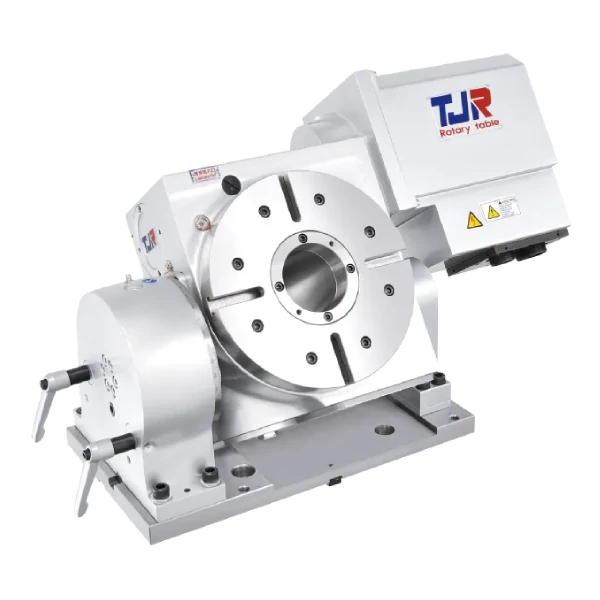

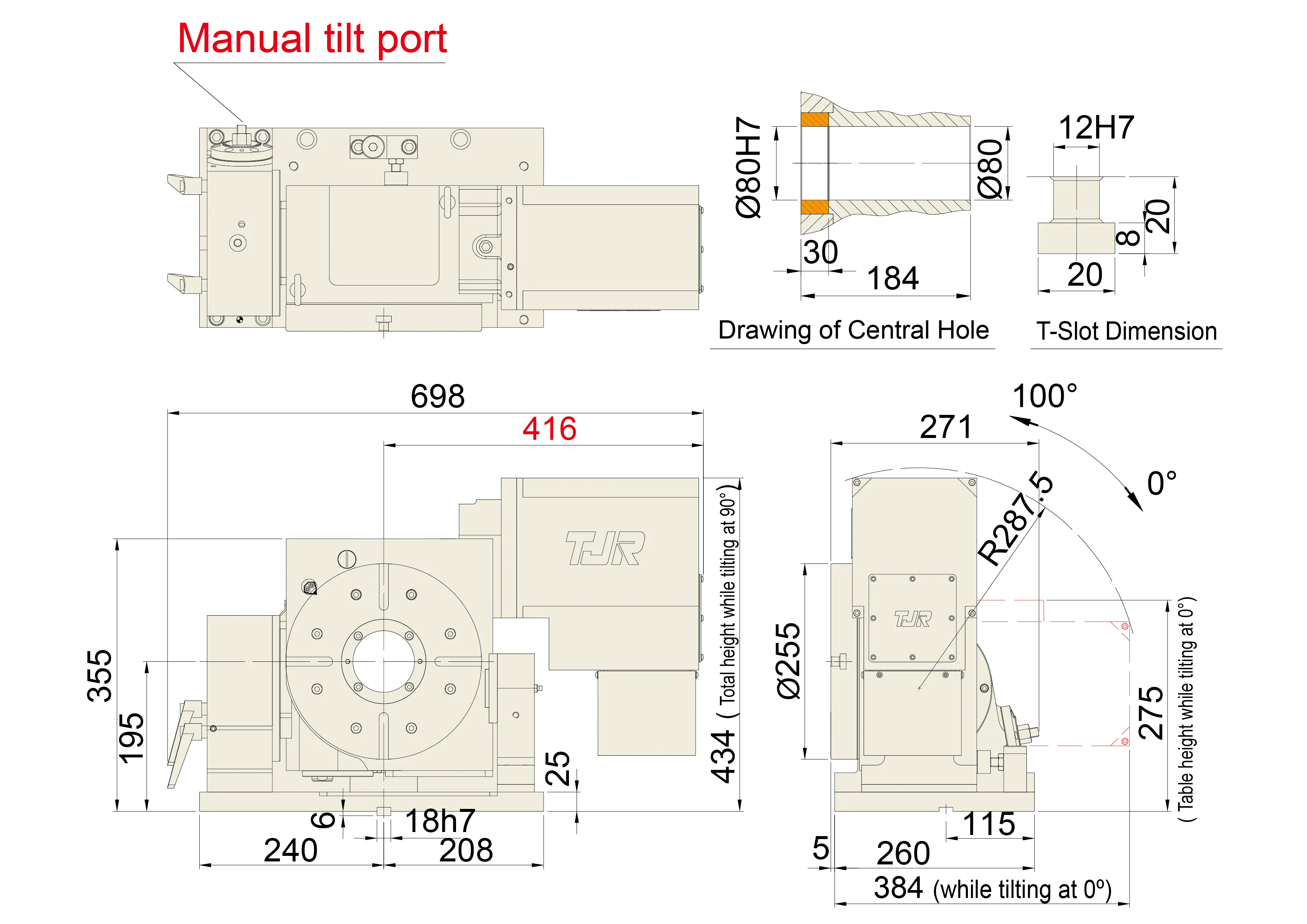

MTHR-255 Product Specifications
| Item | Data |
|---|---|
| Application | Vertical and Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø255 |
| Inner diameter of mandrel sleeve(mm) | Ø80H7 |
| Diameter of center through hole(mm) | Ø80 |
| Table height (Horizontal)(mm) | 275 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Axis / Rotation | 360° |
| Axis / Tilt | (0°~+100°) |
| Transmission Mechanisms | Worm and Worm Gear |
| Rotary Axis Transmission Mechanism | Worm and Worm Gear |
| Tilt Axis Transmission Mechanism | Manual |
| Min. increment(deg.) | 0.001 |
| Rotation Axis Indexing precision(sec.) | 15 |
| Rotation Axis Repeatability(sec.) | 6 |
| Rotation Axis Clamping system(kg/cm²) | Hydraulic (3.5 / 35) |
| Tilt Axis Clamping system(kg/cm²) | Manual double disk brakes |
| Rotation Axis Clamping torque(kgf · m) | 687 / 70 |
| Tilt Axis Clamping torque(kgf · m) | 98 / 10 |
| Rotation Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | αiF8 / αiS12 / βis12 |
| Rotation Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | HG - 104 |
| Tilt Axis Sever motor model(FANUC)(Straight shaft without key)(Taper) | Manual |
| Tilt Axis Sever motor model(MITSUBISHI)(Straight shaft without key)(Taper) | Manual |
| Rotation Axis Speed reduction ratio | 1:120 |
| Tilt Axis Speed reduction ratio | 1:40 |
| Rotation Max. rotation rate of table(min-1) | 33.3 |
| Allowable inertia load capacity (Horizontal)(kg-m²) | 2.03 |
| Rotation Allowable workpiece load (0˚Horizontal)(kg) | 250 |
| Rotation Allowable workpiece load (0˚~90˚Tilt)(kg) | 100 |
| Rotation Allowable thrust load (with rotary table clamping) F (N / kgf) | 15696 / 1600 |
| (Axial)＊1 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 98 / 10 |
| (Radial)＊2 Rotation Allowable thrust load (with rotary table clamping) FxL (N.m / kgf·m) | 687 / 70 |
| Driving torque(N.m / kgf·m) | 540 / 55 |
| Net weight (sever motor excluded)(kg) | 145 |
| ＊1 | If no mechanical brake is used, the value equals motor holding torque. Tilting axis brake torque varies with handle force, allowable up to 663 kgf·cm. |
| ＊2 | The structural limit value, while the actual operating speed will vary depending on the motor. |
