TJR Worm Gear Dual Arm Tilting Rotary Table - FAR Ø210

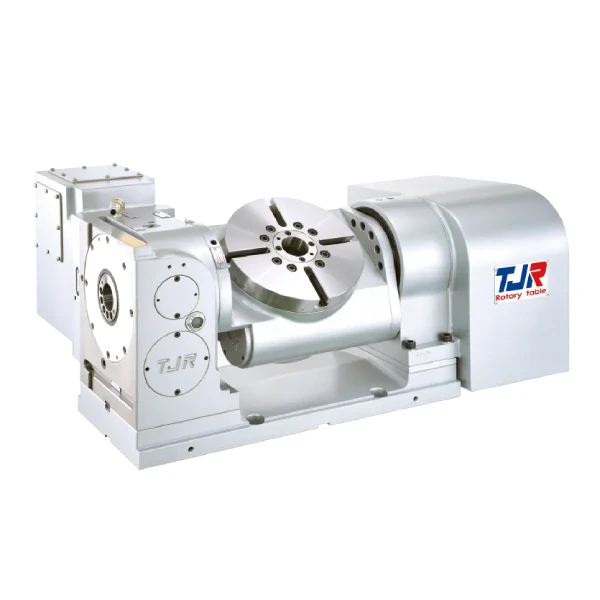

The TJR FAR-210H has a table diameter of 210 mm (Ø210). Its dual-arm construction provides a rigid workholding platform while maintaining a compact design suitable for CNC machining centers and 4th- and 5th-axis machining applications.

The FAR-210H uses a hybrid transmission configuration with worm and worm gear mechanisms on both the rotary and tilt axes. This design provides reliable movement, strong load resistance, and precise positioning for multi-axis CNC machining.

The rotary axis provides a full 360° rotation, while the tilting axis has a range of -100° to +100°. This wide tilting range allows the FAR-210H to access multiple workpiece surfaces and complex machining angles for 5-axis CNC applications.

The FAR-210H has a rotary-axis indexing accuracy of 20 arc-seconds with 6 arc-seconds repeatability. The tilt axis provides 60 arc-seconds of indexing accuracy and 8 arc-seconds of repeatability. Its minimum incremental angle is 0.001°, supporting precise positioning during multi-axis machining.

The FAR-210H uses pneumatic clamping on the rotary axis at 0.6 MPa (6 kg/cm²) and hydraulic clamping on the tilt axis at 3.5 MPa (35 kg/cm²). The rotary axis provides a clamping torque of 304 kgf·m, while the tilt axis provides 540 kgf·m, helping secure the table during machining operations.

The FAR-210H can support a maximum workpiece load of 75 kg when the rotary axis is horizontal at 0°. When the rotary axis is tilted from 0° to 90°, the allowable workpiece load is 50 kg. Its allowable horizontal inertia load capacity is 0.27 kg·m².

The rotary axis has a 1:90 speed reduction ratio and a maximum table rotation rate of 33.3 rpm. The tilt axis also uses a 1:90 reduction ratio and has a maximum table rotation rate of 25 rpm. These ratios provide controlled rotary and tilting movement for multi-axis machining.

The FAR-210H can be configured with major CNC servo motor systems including FANUC, Mitsubishi, Yaskawa, Siemens, Heidenhain, and Syntec. TJR's published specifications list FANUC αiF4 / βiS8 motors for the rotary axis and αiF8 / αiS12 / βiS12 motors for the tilt axis. Mitsubishi options include HG-54 / HG-104 for the rotary axis and HG-104 for the tilt axis.

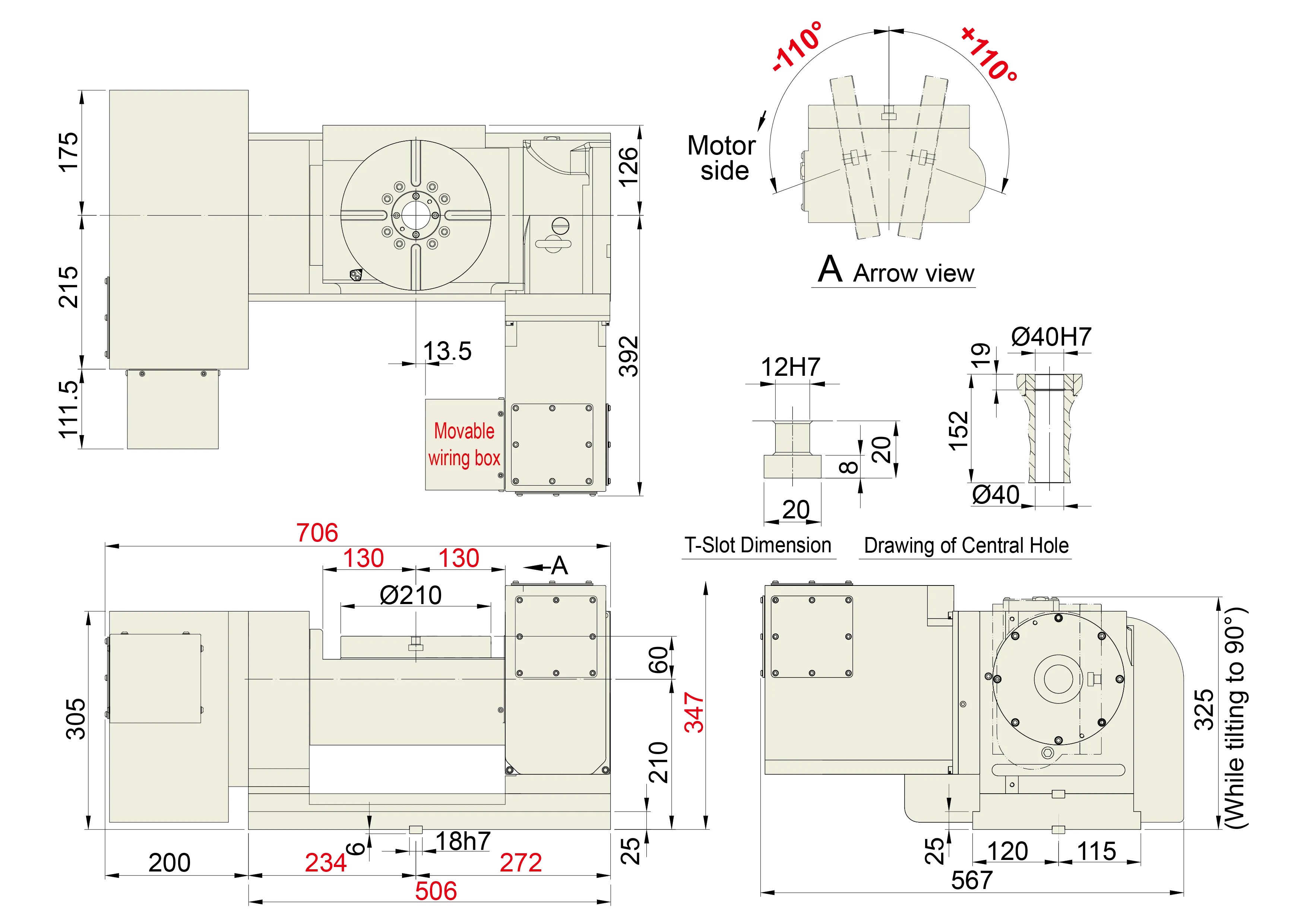

The FAR-210H has a Ø35 mm center through hole and a mandrel sleeve with an inner diameter of Ø40H7. The table also features a 12H7 T-slot and an 18h7 guide-block width for accurate installation and workholding.

Yes. The FAR-210H is a dual-arm tilting rotary table designed for both vertical and horizontal installation. Its 360° rotary axis and -100° to +100° tilting axis provide two-axis movement, making it suitable for 4th- and 5th-axis CNC machining, multi-sided machining, and complex-angle operations.

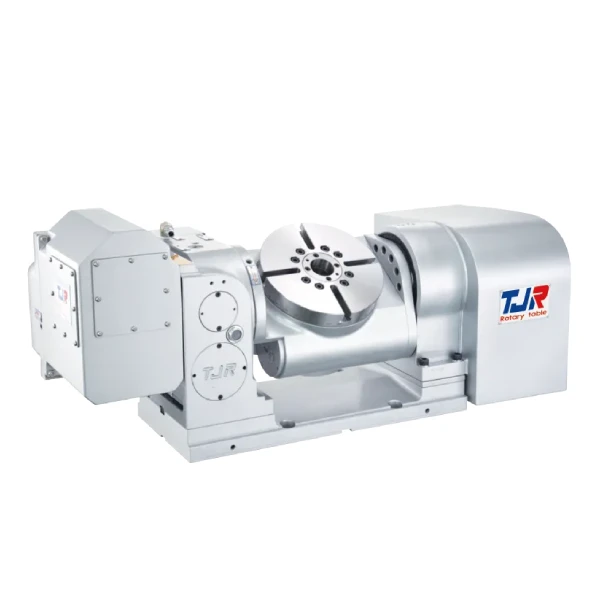

The TJR FAR-210BH has a table diameter of 210 mm (Ø210). Its dual-arm construction provides a rigid workholding platform while maintaining a compact design suitable for CNC machining centers and 4th- and 5th-axis machining applications.

The FAR-210BH uses a hybrid transmission configuration with worm and worm gear mechanisms on both the rotary and tilt axes. This design provides reliable movement, strong load resistance, and precise positioning for multi-axis CNC machining.

The rotary axis provides a full 360° rotation, while the tilting axis has a range of -100° to +100°. This wide tilting range allows the FAR-210BH to access multiple workpiece surfaces and complex machining angles for 5-axis CNC applications.

The FAR-210BH has a rotary-axis indexing accuracy of 20 arc-seconds with 6 arc-seconds repeatability. The tilt axis provides 60 arc-seconds of indexing accuracy and 8 arc-seconds of repeatability. Its minimum incremental angle is 0.001°, supporting precise positioning during multi-axis machining.

The FAR-210BH uses pneumatic clamping on the rotary axis at 0.6 MPa (6 kg/cm²) and hydraulic clamping on the tilt axis at 3.5 MPa (35 kg/cm²). The rotary axis provides a clamping torque of 304 kgf·m, while the tilt axis provides 540 kgf·m, helping secure the table during machining operations.

The FAR-210BH can support a maximum workpiece load of 75 kg when the rotary axis is positioned horizontally at 0°. When the rotary axis is tilted between 0° and 90°, the allowable workpiece load is 50 kg. Its allowable horizontal inertia load capacity is 0.27 kg·m².

The rotary axis has a 1:90 speed reduction ratio and a maximum table rotation rate of 33.3 rpm. The tilt axis also uses a 1:90 reduction ratio and has a maximum table rotation rate of 25 rpm. These ratios provide controlled rotary and tilting movement for multi-axis machining.

The FAR-210BH can be configured with major CNC servo motor systems including FANUC, Mitsubishi, Yaskawa, Siemens, Heidenhain, and Syntec. TJR's published specifications list FANUC αiF4 / βiS8 motors for the rotary axis and αiF8 / αiS12 / βiS12 motors for the tilt axis. Mitsubishi options include HG-54 / HG-104 for the rotary axis and HG-104 for the tilt axis.

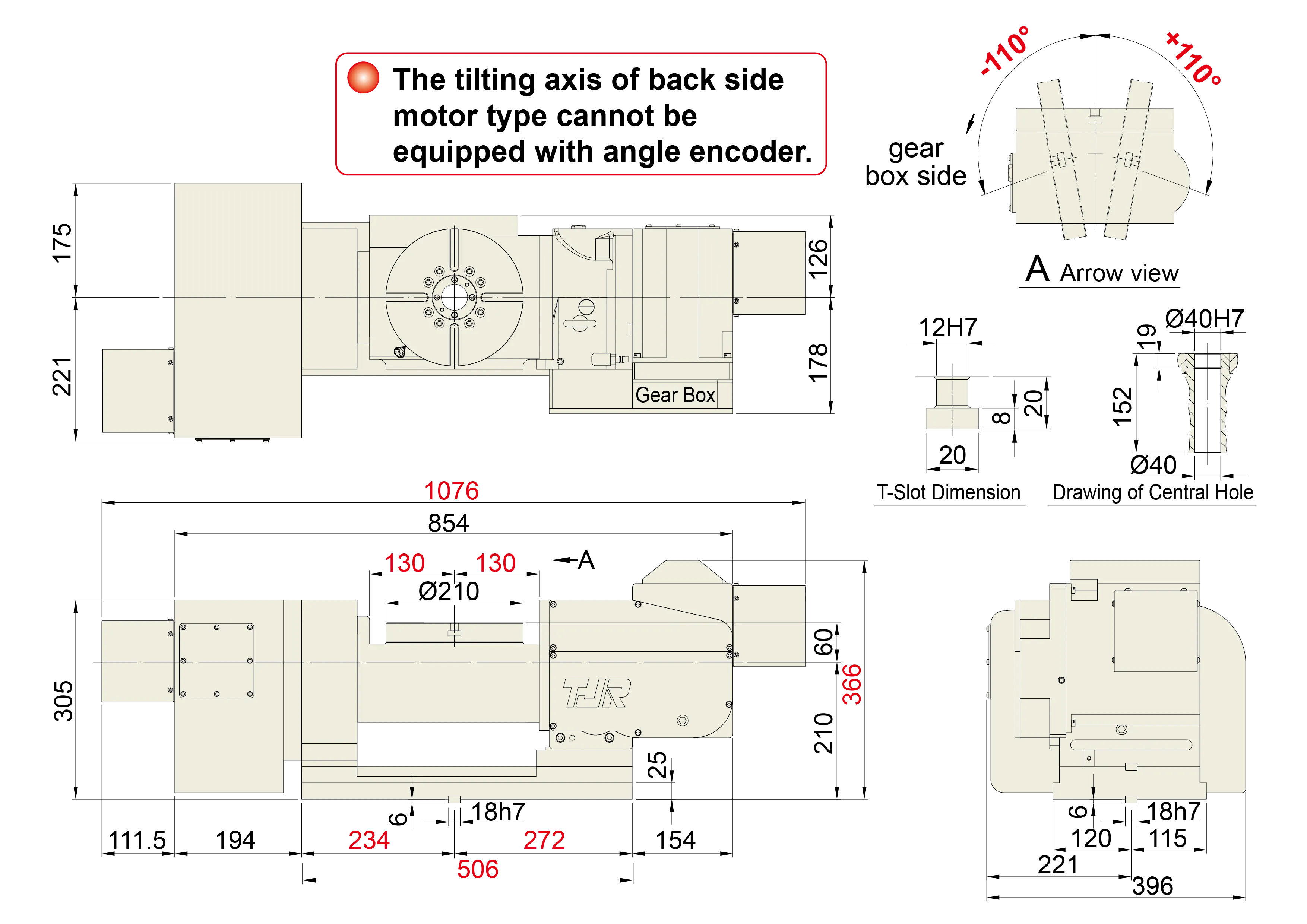

The FAR-210BH has a Ø35 mm center through hole and a mandrel sleeve with an inner diameter of Ø40H7. The table also features a 12H7 T-slot and an 18h7 guide-block width for accurate installation and workholding.

Yes. The FAR-210BH is a dual-arm tilting rotary table designed for both vertical and horizontal installation. Its 360° rotary axis and -100° to +100° tilting axis provide two-axis movement, making it suitable for 4th- and 5th-axis CNC machining, multi-sided machining, and complex-angle operations.
