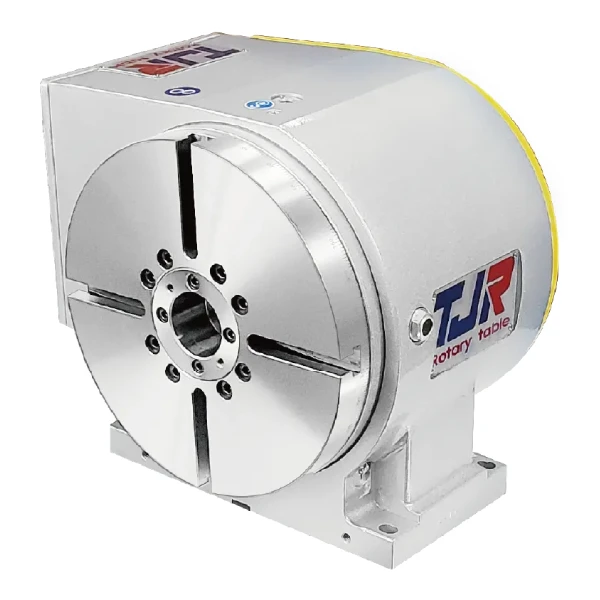

TJR Torque Motor Rotary Table - AD Ø261
Direct-drive power with no mechanical wear and maximum torque at low speed.
AD-261iB

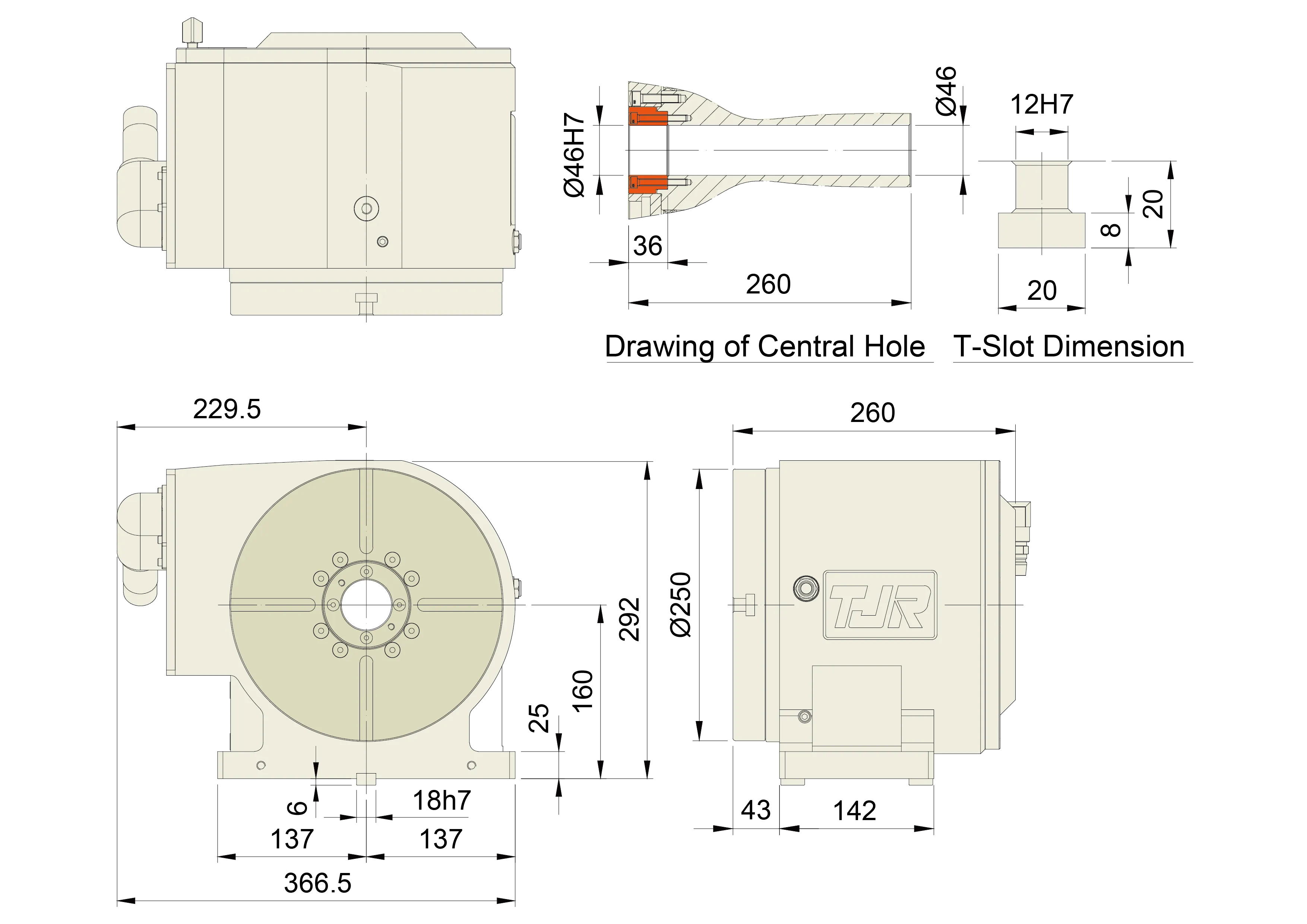

AD-261iB Product Specifications
| Item | Data |
|---|---|
| Application | Vertical |
| Installation Mode | Add-on |
| Table diameter(mm) | Ø250 |
| Inner diameter of mandrel sleeve(mm) | Ø46H7 |
| Diameter of center through hole(mm) | Ø46 |
| Table height (Horizontal)(mm) | 160 |
| Table T-slot width(mm) | 12H7 |
| Guide block width(mm) | 18h7 |
| Transmission Mechanisms | Direct Drive |
| Min. increment(deg.) | 0.001 |
Frequently Asked Questions
The TJR AD-261iB is a direct-drive torque motor rotary table for CNC machines. It is designed for accurate 4th-axis machining.
The AD-261iB has a 250 mm table diameter. It also has a 46 mm center through hole.
Yes. The AD-261iB is made for 4th-axis CNC machining. It helps rotate the workpiece for machining different sides.
The AD-261iB uses a direct-drive system. It does not use a traditional speed reduction gear.
The AD-261iB has a minimum increment of 0.001 degrees. Its indexing precision is 20 seconds, with 4-second repeatability.
The AD-261iB has a rated speed of 200 rpm and a maximum speed of 300 rpm. This allows fast rotary movement during machining.
The AD-261iB can handle up to 100 kg for vertical workpiece loading. With a support table, the allowable workpiece load is also 100 kg.
The AD-261iB has a rated cutting torque of 50 Nm with oil cooling and a maximum cutting torque of 300 Nm.
The AD-261iB supports free cooling and oil cooling. Oil cooling can be used for applications that need higher performance.
The AD-261iB is a strong and accurate CNC rotary table for 4th-axis machining. It offers a 250 mm table, direct drive, up to 300 rpm speed, and up to 300 Nm maximum cutting torque.
